230V Diameter 220mm Diameter High Pressure Centrifugal Fans
1. 220mm 2. IP44 protection level 3. Aluminum alloy motor with Plastic with glass-fiber reinforced impeller, fashion design. 4. Using Ball bearing, working life more than 50,000 hours

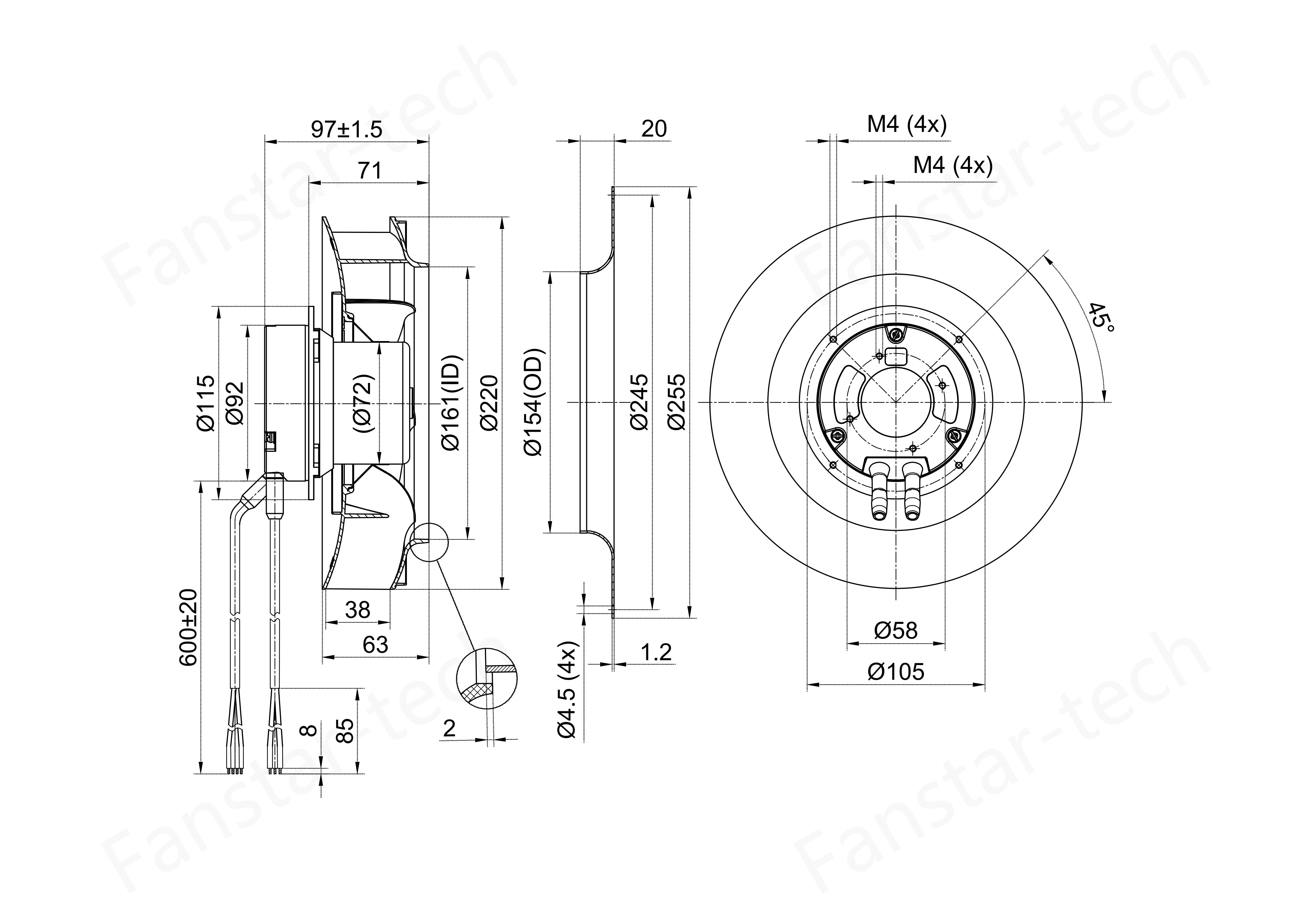

230V Diameter 220mm High Pressure Centrifugal Fans Product Description
Product OverviewThe 230V Diameter 220mm High Pressure Centrifugal Fan is designed for high-efficiency air movement and pressure generation in various industrial and commercial applications. This fan is ideal for environments that require powerful ventilation, cooling, or air filtration solutions.
Key Features
High Efficiency: Delivers high airflow rates and pressure while minimizing energy consumption.
Wide Application Range: Suitable for industrial ventilation, HVAC systems, cooling cabinets, air filtration, and more.
Durable Construction: Made from high-quality materials such as plastic, aluminum alloy, or galvanized steel, ensuring long-term reliability.
Easy Installation and Maintenance: Features user-friendly designs with installation grilles and duct mounting options.
230V Diameter 220mm High Pressure Centrifugal Fans Product Description
Product OverviewThe 230V Diameter 220mm High Pressure Centrifugal Fan is designed for high-efficiency air movement and pressure generation in various industrial and commercial applications. This fan is ideal for environments that require powerful ventilation, cooling, or air filtration solutions.
Key Features
High Efficiency: Delivers high airflow rates and pressure while minimizing energy consumption.
Wide Application Range: Suitable for industrial ventilation, HVAC systems, cooling cabinets, air filtration, and more.
Durable Construction: Made from high-quality materials such as plastic, aluminum alloy, or galvanized steel, ensuring long-term reliability.
Easy Installation and Maintenance: Features user-friendly designs with installation grilles and duct mounting options.
Phase
~
1~
Nominal Voltage
VAC
230
Nominal voltage range
VAC
184~270
Frequency
Hz
50/60
Current draw
A
0.8±10%
Speed(RPM)
min-1
3050±5%
Power consumption
W
95±10%
Sound Pressure Level
dB(A）
71±5%
Max. Air Flow
CFM / m3/H
647.35/1100

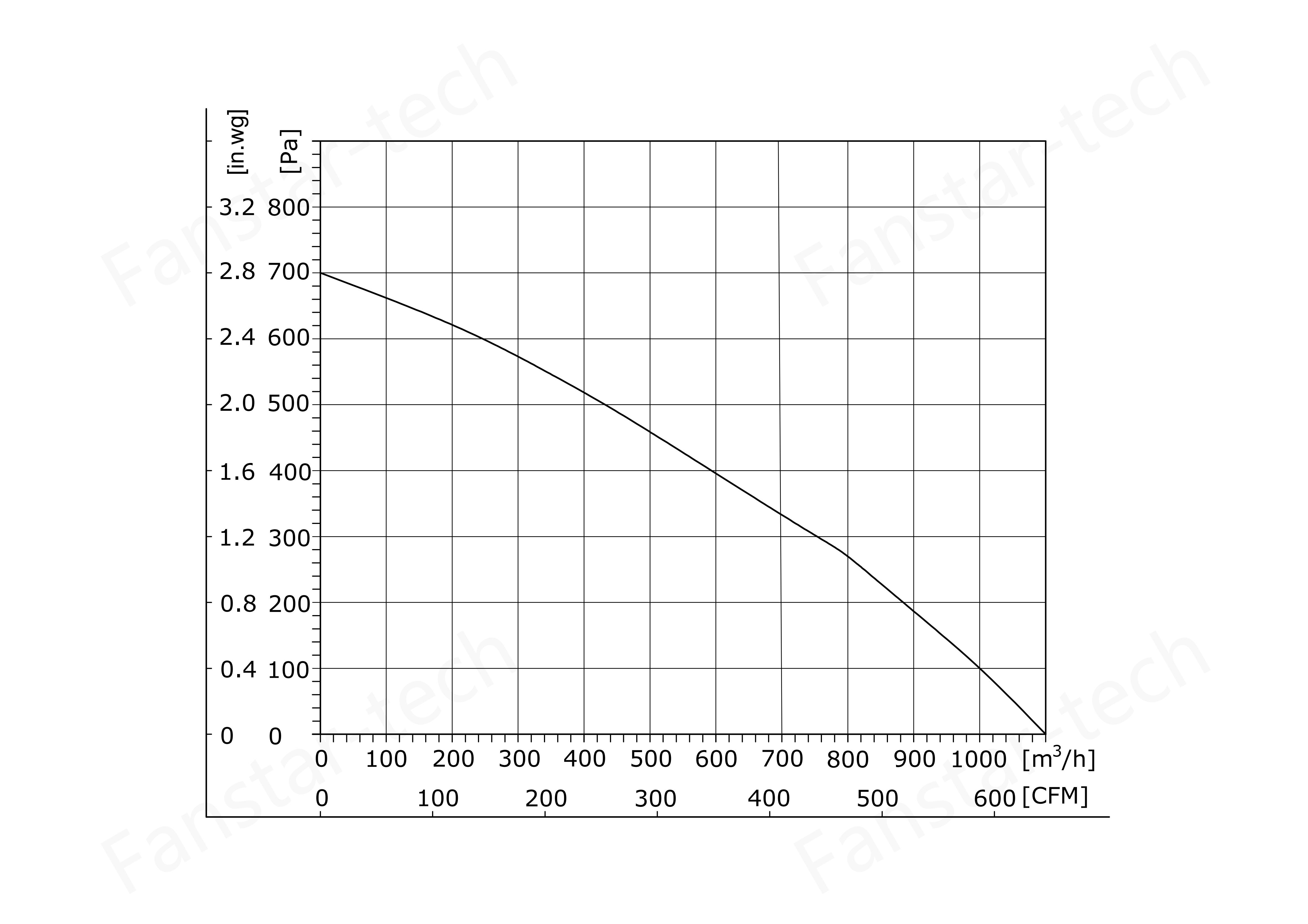

Max. Static Pressure
In.wg /Pa
2.8/700
Insulation class
~
Class B
Degree of protection
~
IP44
Control Input
~
0~10VDC / PWM
Signal Output
~
FG (Tach output )
Phase
~
1~
Nominal Voltage
VAC
230
Nominal voltage range
VAC
184~270
Frequency
Hz
50/60
Current draw
A
0.8±10%
Speed(RPM)
min-1
3050±5%
Power consumption
W
95±10%
Sound Pressure Level
dB(A）
71±5%
Max. Air Flow
CFM / m3/H
647.35/1100
Max. Static Pressure
In.wg /Pa
2.8/700
Insulation class
~
Class B
Degree of protection
~
IP44
Control Input
~
0~10VDC / PWM
Signal Output
~
FG (Tach output )
Voltage Output
Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance
10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance
50,000 Hours(L10)
Leakage Current
≤3.5mA (Max. )
Direction of Air Flow
All around,Straight forward from air outlet
Motor
External rotor EC motor
Technical features
Motor current limitation
Soft starting Protection
Under/Over voltage detection
Thermal overload protection for electronics/motor
Line undervoltage detection
Locked-rotor Protection
Reverse Polarity Protection
Operating Temperature
-25ºC (Min. )
60ºC (Max. )
Heat sink of IC
115ºC (Max. )
Other electronic parts
85ºC (Max. )
Ball bering
80ºC (Max. )
Lead Wire
120ºC (Max. )
Storage Temperature
-40ºC to 75ºC
Operating Humidity
5% to 90% RH
Storage Humidity
5% to 95% RH
Electronics housing material
Die-cast aluminum
Operation Mode
S1
Motor bearing
Ball bearing
Valid For Approval/Standard
CE,RoHS,ErP2015
Voltage Output
Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance
10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
