Our EC axial fan collection represents the pinnacle of modern ventilation technology, combining high-efficiency electronically commutated motors with precision-engineered aerodynamic designs. Specifically developed for industrial facilities, commercial buildings, and specialized applications requiring superior airflow performance, our EC fans deliver exceptional energy savings while maintaining optimal temperature control and air quality. Whether you need powerful ventilation for manufacturing plants, quiet operation for data centers, or intelligent climate control for agricultural facilities, our comprehensive EC axial fan series provides the perfect solution.
Product Range by Application and Capacity

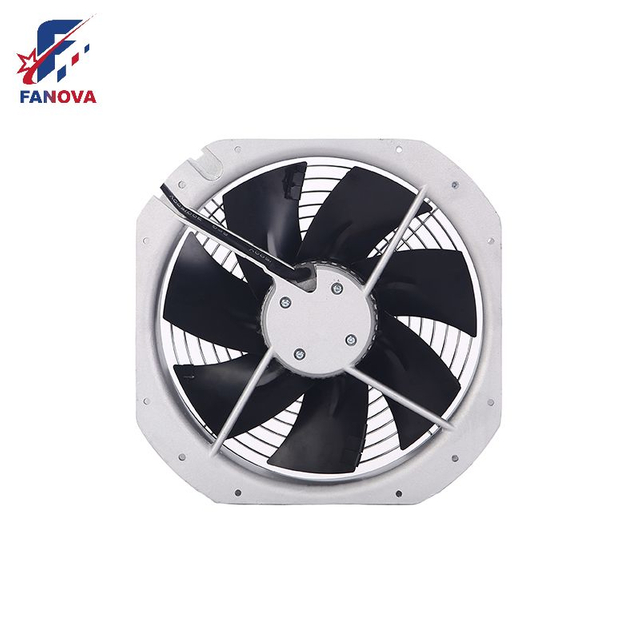

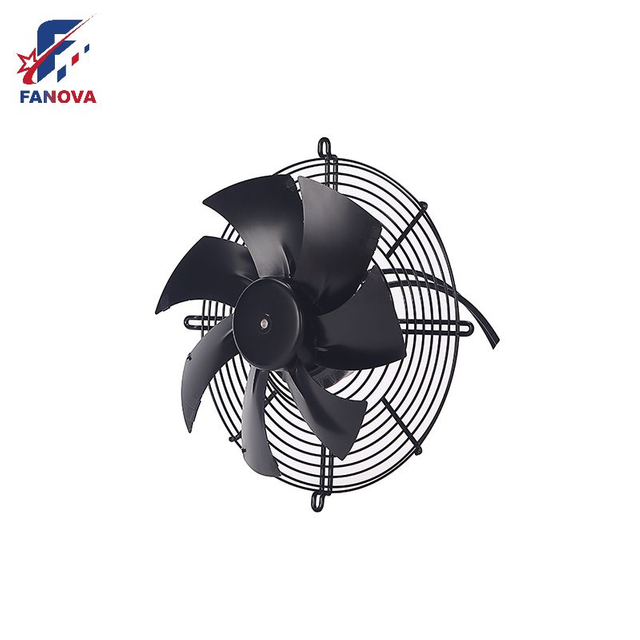

Our diverse selection of industrial axial fans covers power outputs from 45W to 850W and impeller diameters from 200mm to 630mm, ensuring optimal performance across varied operational requirements. For compact spaces and daily usage, our 200mm high-speed fans provide efficient air circulation with minimal space requirements. Medium-duty applications benefit from our 300-350mm range, while heavy industrial environments demand our large axial fan models capable of moving up to 14,500 m³/h. Each model features IP54 protection ratings, operating temperature ranges from -25°C to 60°C, and intelligent control options including 0-10VDC, PWM, and MODBUS-RS485 protocols for seamless integration into building management systems.
Key Advantages of EC Motor Technology
Superior Energy Efficiency: Our DC axial fan technology utilizes brushless electronically commutated motors that consume up to 30% less energy compared to traditional AC motors. This translates directly into reduced operational costs and faster return on investment, particularly critical for facilities operating ventilation systems 24/7.
Intelligent Speed Regulation: Advanced microprocessor-controlled speed modulation automatically adjusts fan performance based on real-time temperature and airflow demands. This dynamic response ensures optimal efficiency across varying load conditions while preventing energy waste during low-demand periods.
Whisper-Quiet Operation: Engineered with precision-balanced glass-fiber-reinforced impellers and acoustic optimization, our axial fan motors operate at sound levels as low as 68 dB(A). This makes them ideal for noise-sensitive environments including laboratories, clean rooms, office buildings, and residential HVAC applications. Explore our full range of industry solutions to find the perfect match for your acoustic requirements.
Extended Service Life: The brushless motor design eliminates carbon brush wear, dramatically extending operational lifespan to 50,000 hours (L10) under standard conditions. Combined with thermal overload protection, locked-rotor protection, and reverse polarity safeguards, our fans deliver unmatched reliability in demanding industrial environments.
Technical Specifications and Performance Characteristics
Understanding the distinction between axial fan vs centrifugal fan configurations is crucial for optimal system design. Our axial flow technology excels in applications requiring high-volume airflow with moderate static pressure, making them ideal for duct axial fan installations, direct-exhaust applications, and open-space ventilation. Key specifications include:
Voltage Flexibility: Available in both 230V single-phase and 380V three-phase configurations, accommodating diverse electrical infrastructures. Wide voltage tolerance ranges (184-270V for 230V models, 304-456V for 380V models) ensure stable operation despite grid fluctuations.
Airflow Capacity: Our axial fan series delivers airflow from 1,200 m³/h for compact models up to 14,500 m³/h for our high pressure models, with static pressure capabilities reaching 250 Pa.
Control Integration: Multiple control interfaces including analog 0-10VDC, digital PWM, and industrial MODBUS-RS485 protocols enable seamless integration with existing automation systems. Real-time speed monitoring via FG tachometer output and fault detection through NC/COM alarm contacts provide comprehensive system oversight.
Environmental Resilience: IP54-rated enclosures protect against dust ingress and water spray, while Class B and Class F insulation ensures reliable operation across temperature extremes. Storage ratings extend from -40°C to 75°C, accommodating long-term warehousing requirements.
Application-Specific Solutions
Industrial Manufacturing: Our industrial axial fan models handle heat extraction, dust removal, and fume evacuation in foundries, welding facilities, and chemical processing plants. Three-phase 380V configurations support integration into heavy machinery environments.
Commercial HVAC Systems: Perfect for air handling units in shopping malls, hospitals, office complexes, and educational facilities where energy efficiency and acoustic performance directly impact operating costs and occupant comfort.
Data Center Cooling: Precision temperature control with minimal acoustic disruption makes our EC fans ideal for server room applications where continuous operation and reliability are non-negotiable.
Agricultural Ventilation: Temperature regulation in greenhouses, livestock facilities, and controlled-environment agriculture benefits from intelligent speed modulation and weather-resistant construction.
Tunnel and Infrastructure: High-capacity models provide critical ventilation for underground transportation systems, parking structures, and industrial tunnels requiring substantial air movement.
Frequently Asked Questions
What distinguishes EC axial fans from standard AC axial fan models?
EC (Electronically Commutated) motors use intelligent power electronics to achieve superior efficiency, typically 30-50% better than conventional AC motors. They offer variable speed control, soft-start functionality, and significantly longer operational lifespans due to brushless design. This translates to lower energy bills, reduced maintenance requirements, and better environmental sustainability.
How do I determine the correct fan size for my application?
Proper sizing requires calculating required air changes per hour (ACH) for your space volume, accounting for static pressure losses in ductwork, and considering altitude adjustments. Our technical support team provides comprehensive sizing calculations and can recommend optimal models based on your specific requirements including airflow rates, pressure demands, and installation constraints.
Can EC fans be integrated with existing building management systems?
Absolutely. Our fans support multiple control protocols including 0-10V analog, PWM digital, and MODBUS-RS485 industrial networking. This flexibility enables integration with virtually any BMS platform, allowing centralized monitoring, scheduling, and optimization of ventilation systems across entire facilities.
What maintenance do EC axial fans require?
Minimal maintenance is required thanks to brushless motor technology. Recommended procedures include quarterly visual inspections, semi-annual impeller cleaning to remove dust accumulation, and annual electrical connection checks. The absence of carbon brushes eliminates the primary wear component found in traditional motors, dramatically reducing service requirements.
Are your fans suitable for high-temperature environments?
Our high temperature axial fan models operate reliably in ambient temperatures up to 60°C, with electronic components rated to 85°C and motor windings to 115°C. For extreme conditions exceeding these parameters, consult our engineering team regarding specialized thermal management solutions and custom configurations.
Why Choose Our EC Axial Fan Solutions
With decades of experience in ventilation engineering, we deliver more than just products—we provide comprehensive airflow solutions backed by technical expertise and responsive support. Our EC fans combine cutting-edge motor technology with proven aerodynamic designs, ensuring optimal performance across diverse applications. From initial specification and sizing assistance through installation support and ongoing maintenance, our team stands ready to optimize your ventilation systems for maximum efficiency, reliability, and cost-effectiveness.
Every fan undergoes rigorous quality testing including dynamic balancing, electrical safety verification, and performance validation before shipment. We maintain comprehensive technical documentation, CAD models for integration planning, and replacement parts inventory to support your operations throughout the product lifecycle.
Get Started with the Right Ventilation Solution
Selecting the optimal EC axial fan requires careful consideration of airflow requirements, spatial constraints, acoustic limitations, and control integration needs. Our engineering team brings extensive application experience across industries including manufacturing, healthcare, agriculture, data centers, and commercial real estate. We provide detailed technical specifications, performance curves, and sizing calculations to ensure your ventilation system delivers exactly what your application demands.
Ready to improve your facility's airflow efficiency while reducing energy consumption? Contact our specialists today for personalized recommendations, technical consultation, and detailed quotations tailored to your specific ventilation challenges. Let us help you discover why industry leaders trust our EC axial fans for their most critical applications.
