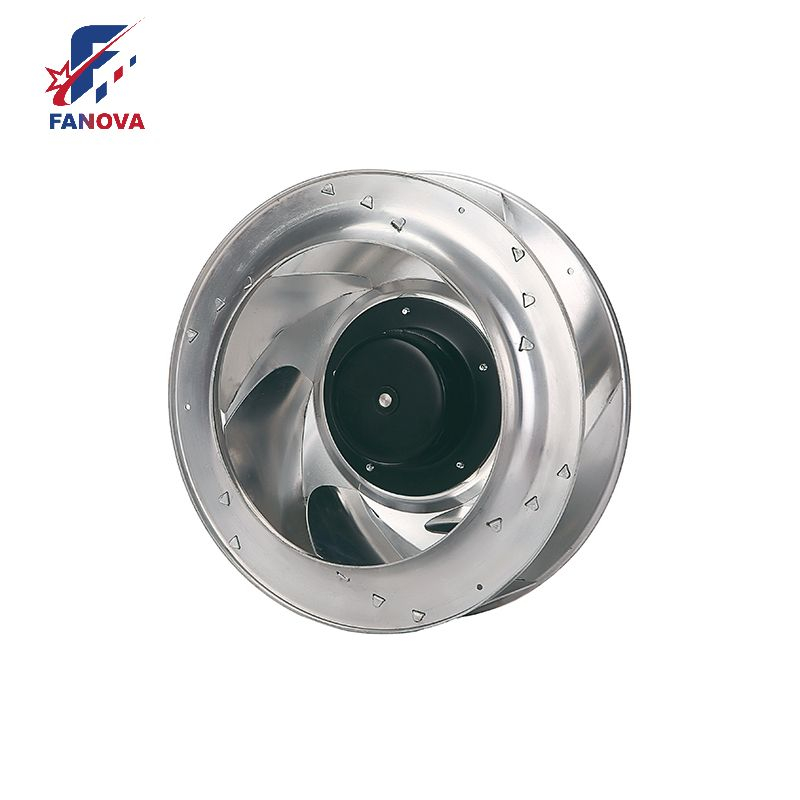

FB3G355-2AAY-20
Fanova
Experience the power of our industrial centrifugal fan, designed to exceed your expectations in performance and reliability. It's not just a fan; it's a solution that breathes life into your space, ensuring a healthier and more productive environment.
Experience the power of our industrial centrifugal fan, designed to exceed your expectations in performance and reliability. It's not just a fan; it's a solution that breathes life into your space, ensuring a healthier and more productive environment.
Phase | ~ | 1~ |
Nominal Voltage | VAC | 230 |
Nominal voltage range | VAC | 184~270 |
Frequency | Hz | 50/60 |
Current draw | A | 2.0±10% |
Speed(RPM) | min-1 | 1920±5% |
Power consumption | W | 480±10% |
Sound Pressure Level | dB(A) | 74±5% |

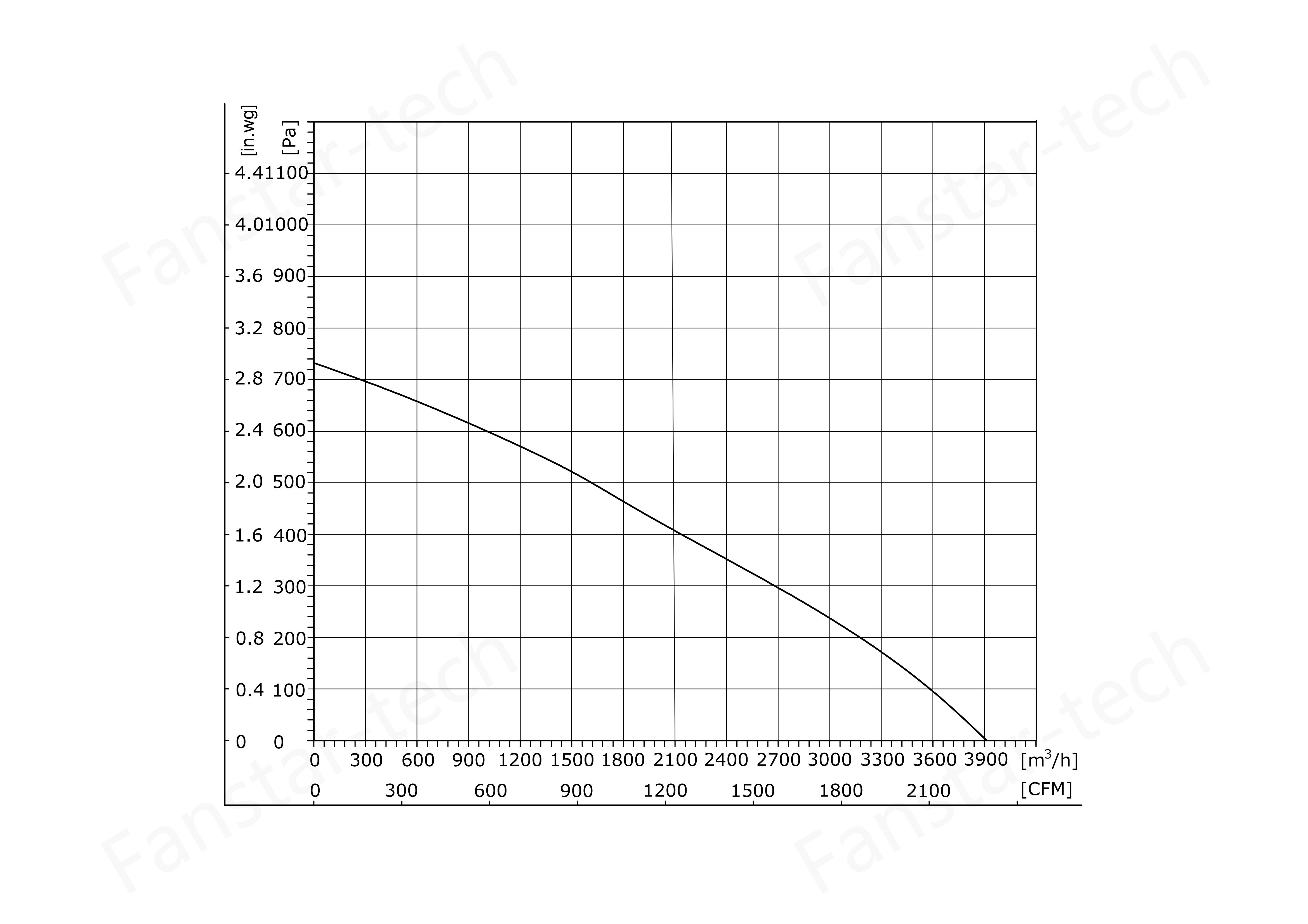

Max. Air Flow | CFM / m3/H | 2301/3910 |
Max. Static Pressure | In.wg /Pa | 2.94/735 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP54 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Phase | ~ | 1~ |
Nominal Voltage | VAC | 230 |
Nominal voltage range | VAC | 184~270 |
Frequency | Hz | 50/60 |
Current draw | A | 2.0±10% |
Speed(RPM) | min-1 | 1920±5% |
Power consumption | W | 480±10% |
Sound Pressure Level | dB(A) | 74±5% |
Max. Air Flow | CFM / m3/H | 2301/3910 |
Max. Static Pressure | In.wg /Pa | 2.94/735 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP54 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Life Expectance | 50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH |
