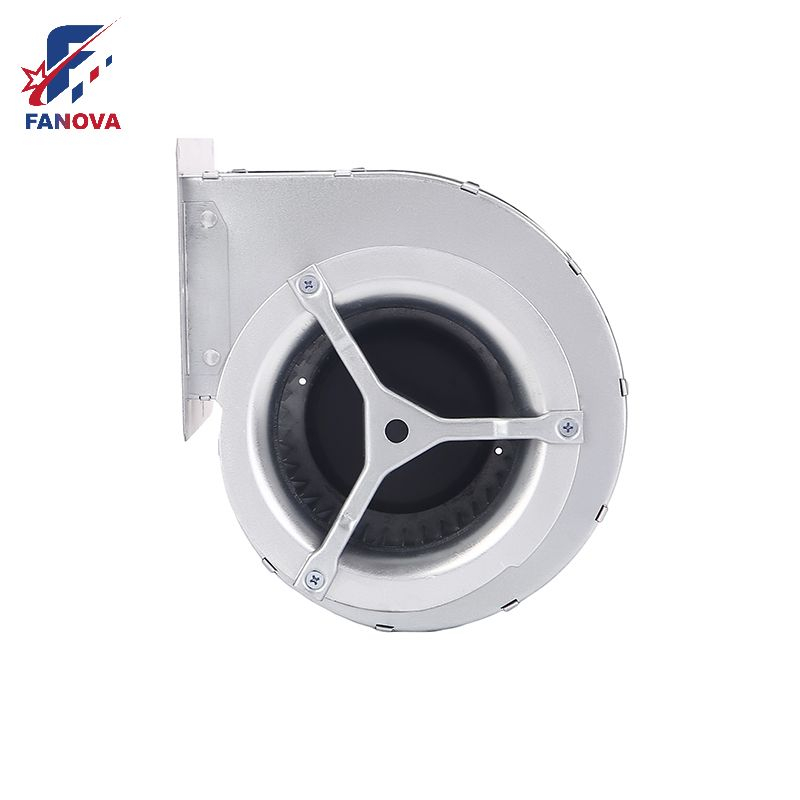

230V Ec Dual Inlet 180mm Centrifugal Blower Multistage Centrifugal Blower

1. 180mm
2. IP44 protection level
3. Aluminum alloy motor with galvanized steel sheet impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FD3G180-2AGL-20

  • Fanova



230V EC Dual Inlet 180mm Centrifugal Blower Multistage Centrifugal Blower English Introduction

Product Features

  1. High Efficiency: Our 230V EC Dual Inlet 180mm Centrifugal Blowers are designed to deliver high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
  2. Low Noise: These blowers utilize advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
  3. Wide Application Range: Suitable for a diverse range of industrial and commercial applications, including HVAC systems, industrial ventilation, and air purification.
  4. Sustainable Development: Designed with energy-saving and environmentally friendly features, using advanced materials to meet eco-friendly energy requirements.
  5. Easy Installation and Maintenance: User-friendly designs and easily maintainable components facilitate hassle-free maintenance.

Fanova-9Fanova-10



Phase

~

1~

Nominal Voltage

VAC

230

Nominal voltage range

VAC

184~270

Frequency

Hz

50/60

Current draw

A

1.9±10%

Speed(RPM)

min-1

1550±5%

Power consumption

W

400±10%

Sound Pressure Level

dB(A

74±5%

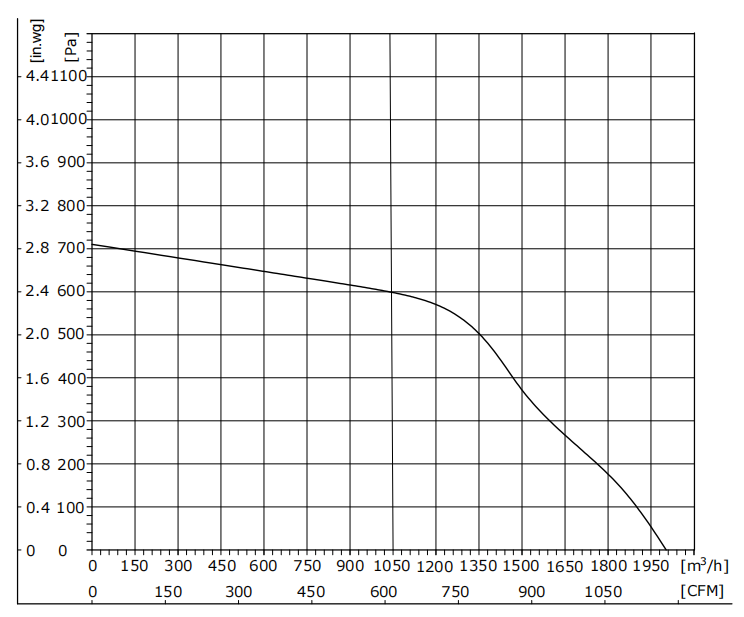

Max. Air Flow

CFM / m3/H

 1177/2000

Max. Static Pressure

In.wg /Pa

2.84/710

Insulation class

~

 Class B

Degree of protection

~

IP54

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )

Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH
