FK3G133-24PL-71
Fanova
Nominal Voltage | VDC | 24 |
Nominal voltage range | VDC | 16~28 |
Current draw | A | 1.75±10% |
Speed(RPM) | min-1 | 4460±5% |
Power consumption | W | 42±10% |
Sound Pressure Level | dB(A） | 73±5% |
Max. Air Flow | CFM / m3/H | 250.11/425 |
Max. Static Pressure | In.wg /Pa | 1.96/490 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |

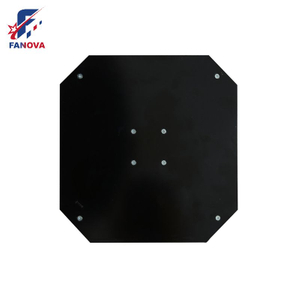

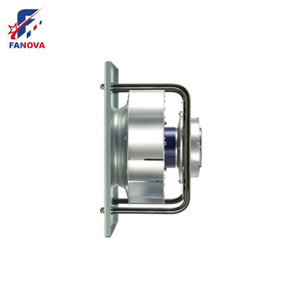

The FK3G133-24PL-71 is a compact DC backward centrifugal fan with an integrated support bracket, designed by Fanova Motor Technology for space-constrained applications. Powered by a 24V DC brushless motor (Model: BLDC72), it delivers efficient airflow and static pressure while operating within a wide voltage range (16–28V DC). Ideal for electronics cooling and light-duty ventilation, its lightweight design (3.6kg) and flexible mounting suit diverse installations.
Low-Voltage DC Efficiency
Optimized for 24V DC systems with low power consumption (42W ±10%). Supports PWM/0–10VDC speed control and includes soft-start protection for reduced electrical stress.
Compact & Lightweight Build
Features a 133mm glass-fiber-reinforced plastic impeller and aluminum housing, enabling high-speed operation (4,460 RPM) while minimizing weight and noise (73 dB(A)).
Robust Industrial Protections
IP44-rated against dust/water ingress. Built-in safeguards include overvoltage/undervoltage lockout, thermal shutdown, and reverse polarity protection (–25°C to 60°C operation).
Electronics Cooling: Server racks, telecom cabinets, power supplies.
Light Industrial Ventilation: Lab equipment, 3D printers, small enclosures.
Medical Devices: Portable diagnostic tools, imaging systems.
Q1: Can this fan run on batteries or solar systems?
A: Yes—its wide voltage range (16–28V DC) suits renewable/battery-powered setups.
Q2: Is the bracket adjustable?
A: The fixed bracket supports multi-directional mounting but isn’t angle-adjustable.
Q3: What maintenance does it require?
A: Sealed ball bearings (50,000-hour L10 life) ensure maintenance-free operation.
Q4: How is the tachometer (FG) signal used?
A: The white wire outputs 2 pulses per revolution for real-time speed monitoring.
