24V DC 180mm 200W High Efficient Cooling Blower Ventilation Single Inlet Centrifugal Fan With Scroll Housing

1. 180mm
2. IP44 protection level
3. Aluminum alloy motor with galvanized steel sheet impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FS3G180-24GL-90

  • Fanova

48V Dc Diameter 180mm Single Inlet Centrifugal Fans With Scroll Housing

Introducing our 48V DC Diameter 180mm Single Inlet Centrifugal Fans with Scroll Housing—a cutting-edge solution designed for a variety of applications that demand high performance in a compact form factor. These fans are the epitome of versatility and efficiency, perfect for everything from small-scale industrial needs to home maintenance tasks.

Key Features:

  • Compact yet Powerful: With a diameter of 180mm, our centrifugal fans are small but pack a punch, delivering robust airflow for tasks that larger fans would typically handle. Ideal for small leaf blowers and small snow blowers, these fans ensure that size is no barrier to performance.

  • Versatile Design: The single inlet design with scroll housing allows for focused air delivery, making our fans perfect for specialized applications like inflating bouncy houses or drying off your pool area with a pool blower.

  • Efficient Operation: Powered by a 48V DC motor, these fans are energy efficient, providing reliable performance with minimal power consumption. This makes them an excellent choice for environmentally conscious users and applications where energy use is a concern.

  • Durable Construction: Built to last, our fans are crafted with high-quality materials, ensuring durability and a long service life. Whether it's clearing dog hair from your home with a dog hair blower or maintaining a clean pool area, our fans are up to the task.

  • Easy Integration: Designed for seamless integration into existing systems or as standalone units, our fans are user-friendly and can be easily installed in a variety of settings.

  • Customizable Performance: With adjustable speed settings, you can tailor the airflow to suit your specific needs, from gentle air movement to powerful blasts.

  • Low Noise Technology: Engineered with noise reduction in mind, our fans operate quietly, making them suitable for both indoor and outdoor use without causing disturbance.

  • Wide Range of Applications: From home use to commercial applications, our 48V DC centrifugal fans are adaptable and ready to take on any challenge, be it for leisure activities like inflating bouncy houses or more practical uses like pool maintenance.

Experience the power of compact design with our 48V DC Diameter 180mm Single Inlet Centrifugal Fans. Whether you're tackling home chores, maintaining your pool, or requiring a reliable fan for commercial use, our fans are the perfect blend of power, efficiency, and versatility. Make the smart choice for your air movement needs and let our fans be the driving force behind your projects.Fanova-9Fanova-10



Nominal Voltage

VDC

24

Nominal voltage range

VDC

16~28

Current draw

A

8.4±10%

Speed(RPM)

min-1

1600±5%

Power consumption

W

200±10%

Sound Pressure Level

dB(A

70±5%

Max. Air Flow

CFM / m3/H

 570.85/970

Max. Static Pressure

In.wg /Pa

 2.68/670

Insulation class

~

Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )


Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH

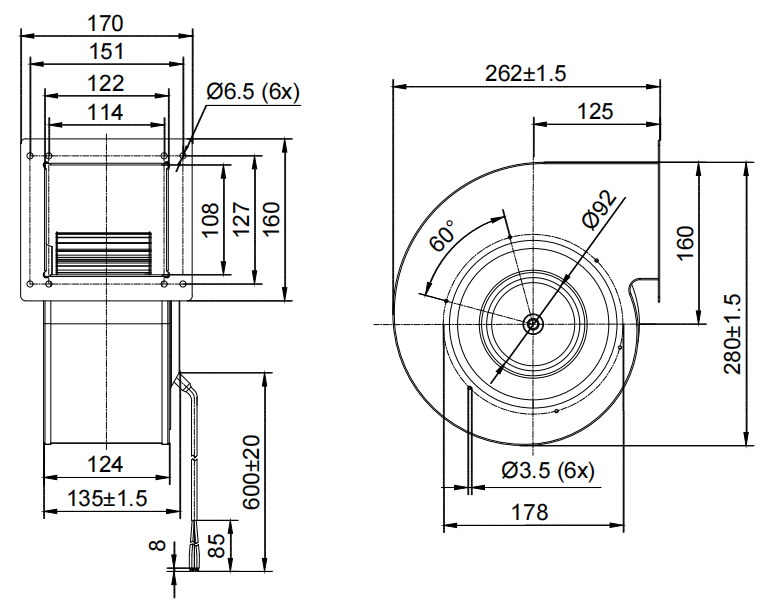

DCS180-24GL-90

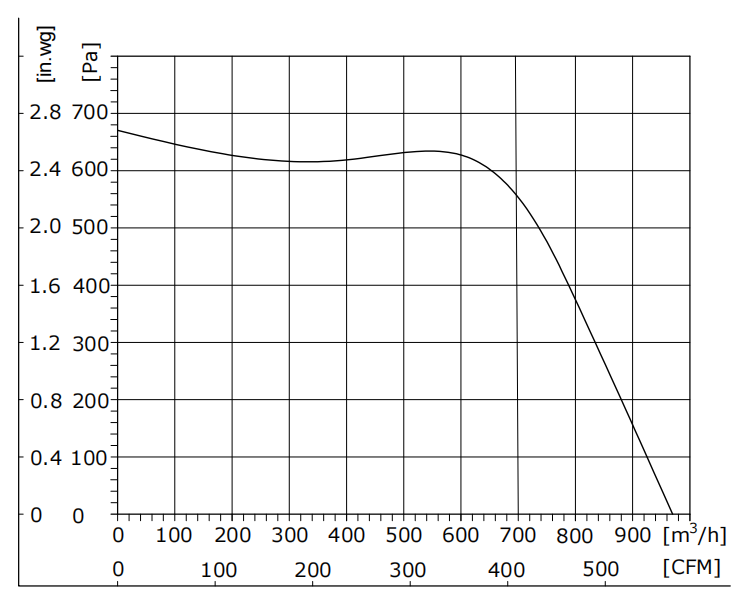

DS180-24GL-90
