FK3G250-24PL-91
Fanova
Nominal Voltage | VDC | 24 |
Nominal voltage range | VDC | 16~28 |
Current draw | A | 8.0±10% |
Speed(RPM) | min-1 | 2950±5% |
Power consumption | W | 192±10% |
Sound Pressure Level | dB(A） | 71±5% |
Max. Air Flow | CFM / m3/H |
868.04/1475 |
Max. Static Pressure | In.wg /Pa | 3.54/885 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |

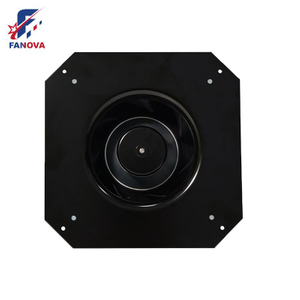

The FK3G250-24PL-91 is a DC centrifugal fan with integrated mounting brackets, engineered for corrosive or humid environments. Driven by a brushless motor (BLDC92) and featuring a unique 250mm plastic-glass fiber impeller, it delivers high static pressure (885 Pa) at low voltage (24VDC). Ideal for compact industrial systems requiring chemical resistance and IP44 protection.
Corrosion-Resistant Design
Glass-fiber-reinforced polypropylene impeller withstands moisture, chemicals, and fumes, outperforming metal alternatives in harsh conditions.
Bracket-Enabled Rigidity
Pre-installed support brackets simplify mounting in vibration-prone equipment while ensuring stability during 2950 RPM operation.
Low-Voltage Efficiency
Operates at 24VDC (range: 16–38VDC) with soft-start technology, reducing energy spikes in sensitive DC power systems.
Chemical Processing: Fume extraction in labs, plating facilities, or solvent handling areas.
Marine Equipment: Ventilation for onboard electronics and battery compartments.
Food Production: Moisture-resistant cooling for conveyors or packaging machinery.
EV Infrastructure: Thermal management in charging stations and battery cabinets.
Q: Why choose plastic over metal impellers?
A: Superior corrosion resistance and reduced weight (vs. aluminum/steel), ideal for acidic/humid environments.
Q: Can brackets be removed?
A: No—integrated design ensures structural integrity; contact factory for custom mounting requests.
Q: Is the FG signal compatible with industrial PLCs?
A: Yes—4 pulses/revolution output works with standard speed monitoring systems.
Q: What if voltage drops below 16VDC?
A: Undervoltage protection halts operation to prevent motor damage; resumes automatically when restored.
