24V DC 300mm 80W Low Noise Energy-Efficient Ventilation Axial Flow Fan

1. 300mm
2. IP44 protection level
3. Aluminum alloy motor with Propylene with glass-fiber reinforced impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FW3G300-24PN-90

  • Fanova

48V Diameter 300mm DC Energy-Efficient Axial Fan

   Introducing our state-of-the-art 48V Diameter 300mm DC Energy-Efficient Axial Fan, a powerhouse of innovation designed to redefine air movement efficiency. This fan is a testament to our commitment to excellence, merging cutting-edge technology with user-centric design.

Key Features:

  • DC Power: Harnessing the potential of 48V DC power, our fan ensures a consistent and powerful airflow, making it an ideal choice for environments where energy efficiency is paramount.

  • Axial Flow Design: The airflow through our axial fan is meticulously engineered to deliver a linear, directed flow. This design optimizes air movement, ensuring uniform distribution and effective ventilation.

  • High-Performance Motor: At the core of our fan is a high-performance motor that not only guarantees a robust airflow but also operates with remarkable energy efficiency.

  • Adjustable Speed Control: With the ability to adjust the fan speed, you have the flexibility to adapt the airflow to your specific needs, from gentle circulation to powerful ventilation.

  • Compact and Robust: Despite its compact size, our 300mm diameter fan is built to last, with a robust construction that can withstand the demands of continuous operation.

  • Low Noise Operation: Engineered with advanced noise reduction technology, our fan operates quietly, ensuring a comfortable environment without the distraction of loud machinery.

  • Versatile Applications: This fan is not just limited to HVAC systems; its versatility makes it suitable for a range of applications, including cooling towers, data centers, and even in greenhouses.

Integrating the provided keywords, let's delve deeper into the capabilities of our fan:

  • Ac Infinity Axial Fan: Our fan rivals the renowned Ac Infinity series, offering a similar high standard of performance and reliability, but with the added benefits of our unique energy-saving features.

  • Adda AC Axial Fan: Drawing inspiration from the esteemed Adda brand, our DC fan takes the concept of axial airflow to new heights with its 48V power source, providing a more energy-efficient alternative to traditional AC models.

  • Adda Axial Fan: Just as the Adda series is known for its quality, our fan embodies that same spirit of excellence, with the added advantage of being DC-powered for a greener operation.

  • Air Mover Axial Fan: Often compared to air movers, our axial fan offers a more focused and consistent airflow, making it superior for applications requiring directed air movement.

  • Air Mover vs Axial Fan: While air movers are known for their versatility, our axial fan provides a more streamlined and efficient solution for environments that demand precision air control.

  • Airflow Through an Axial Fan: The linear airflow generated by our fan is a result of meticulous engineering, ensuring that every cubic meter of air moved serves a purpose, contributing to the overall efficiency of your ventilation system.

In a world increasingly conscious of energy consumption, our 48V Diameter 300mm DC Energy-Efficient Axial Fan stands as a beacon of innovation, offering a solution that is as powerful as it is sustainable. Experience the future of air movement with our fan, and let it be the silent force behind your environment's comfort and efficiency.Fanova-9Fanova-10



Nominal Voltage

VDC

24

Nominal voltage range

VDC

16~28

Current draw

A

1.7±10%

Speed(RPM)

min-1

1800±5%

Power consumption

W

80±10%

Sound Pressure Level

dB(A

66±5%

Max. Air Flow

CFM / m3/H

 1353.55/2300

Max. Static Pressure

In.wg /Pa

 0.68/170

Insulation class

~

 Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )

Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH

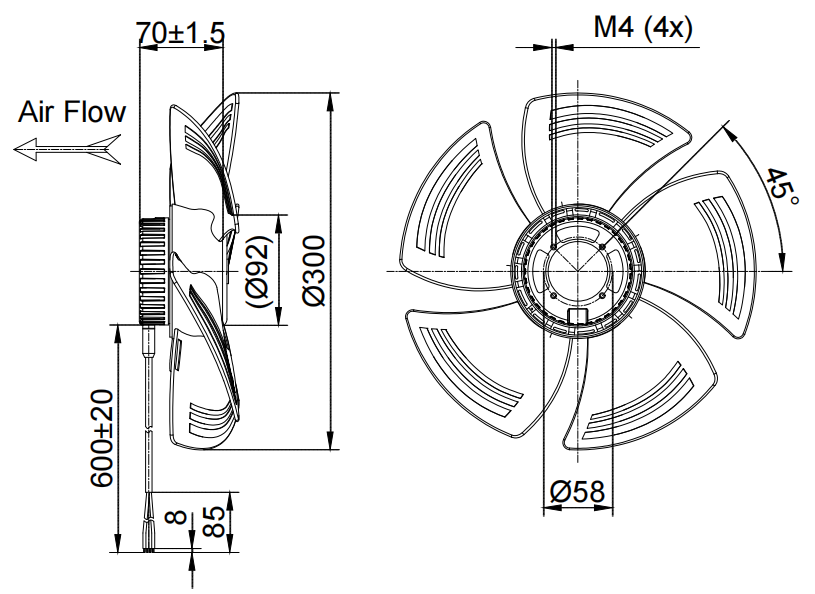

DCA300-24PN-90

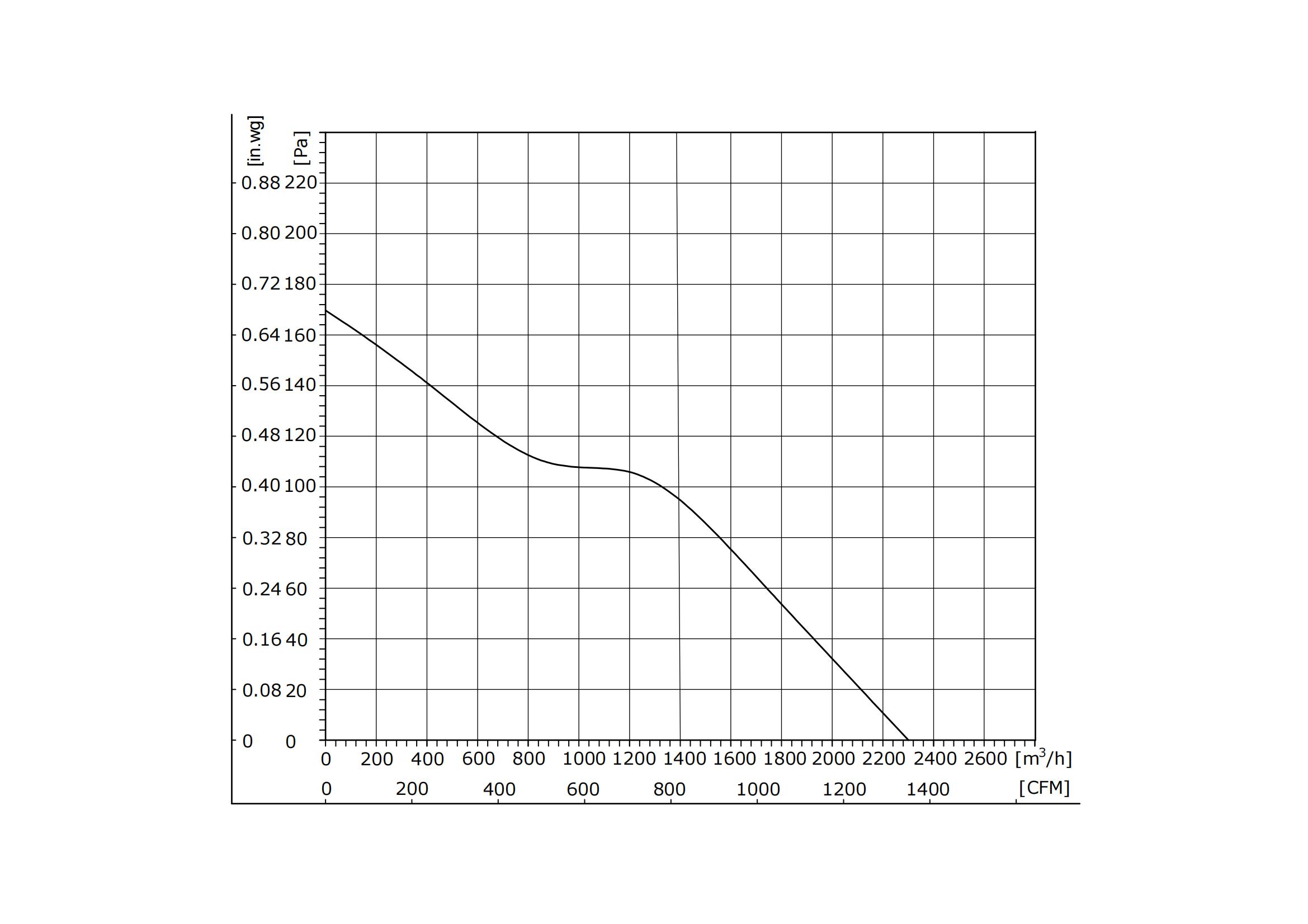

300mm DC Energy-Efficient Axial Fan-PQ
