FB3G310-48AY-21
Fanova
The 310mm DC Centrifugal Fan is a robust industrial-grade air mover, meticulously designed for high performance across a spectrum of ventilation applications. Here's a concise overview:
The 310mm DC Centrifugal Fan is powered by an EC (Electronically Commutated) brushless external rotor motor, renowned for its high efficiency and longevity with minimal maintenance. This centrifugal fan assembly is equipped with a backward curved impeller design, which is pivotal for delivering substantial airflow rates and static pressure. The centrifugal fan blade design, featuring backward curved blades, is optimized for performance and efficiency.
The fan's operation is remarkably quiet, a testament to the advanced fluid dynamics technology employed in its centrifugal fan blower design. This makes it suitable for a wide range of applications, including HVAC systems, industrial ventilation, agriculture, construction, and automotive sectors, where noise levels are a critical consideration.
For professionals and enthusiasts, the fan is available with detailed centrifugal fan autocad drawings and centrifugal fan cad blocks, facilitating precise and accurate design integration into various projects. The centrifugal fan calculation and centrifugal fan calculator tools are also provided to assist in the design and selection process, ensuring that the fan meets the specific requirements of each application.
The centrifugal fan bearing arrangement is thoughtfully designed for durability and reliability, with centrifugal fan balancing techniques employed to ensure smooth operation and reduce vibrations. The centrifugal fan blade types are carefully selected to cater to different airflow and pressure needs, enhancing the versatility of the fan.
Centrifugal fan catalogues, available in pdf format, offer comprehensive information on the fan's specifications, features, and applications, providing a valuable resource for engineers and designers. The fan's design is also validated through centrifugal fan cfd simulations, ensuring optimal performance and efficiency.
Constructed with durable materials, the 310mm DC Centrifugal Fan is designed for easy installation and maintenance, with user-friendly installation options and easily serviceable components. Its energy-saving features and eco-friendly operation make it a reliable choice for sustainable development in ventilation technology.
In summary, the 310mm DC Centrifugal Fan is a versatile and reliable air mover, combining high performance with quiet operation, ease of installation, and sustainable design. Whether you're looking for a centrifugal fan catalogue pdf for detailed specifications or need a centrifugal fan cfm calculator for performance estimation, this fan offers a comprehensive solution for a wide range of ventilation needs.
The 310mm DC Centrifugal Fan is a robust industrial-grade air mover, meticulously designed for high performance across a spectrum of ventilation applications. Here's a concise overview:
The 310mm DC Centrifugal Fan is powered by an EC (Electronically Commutated) brushless external rotor motor, renowned for its high efficiency and longevity with minimal maintenance. This centrifugal fan assembly is equipped with a backward curved impeller design, which is pivotal for delivering substantial airflow rates and static pressure. The centrifugal fan blade design, featuring backward curved blades, is optimized for performance and efficiency.
The fan's operation is remarkably quiet, a testament to the advanced fluid dynamics technology employed in its centrifugal fan blower design. This makes it suitable for a wide range of applications, including HVAC systems, industrial ventilation, agriculture, construction, and automotive sectors, where noise levels are a critical consideration.
For professionals and enthusiasts, the fan is available with detailed centrifugal fan autocad drawings and centrifugal fan cad blocks, facilitating precise and accurate design integration into various projects. The centrifugal fan calculation and centrifugal fan calculator tools are also provided to assist in the design and selection process, ensuring that the fan meets the specific requirements of each application.
The centrifugal fan bearing arrangement is thoughtfully designed for durability and reliability, with centrifugal fan balancing techniques employed to ensure smooth operation and reduce vibrations. The centrifugal fan blade types are carefully selected to cater to different airflow and pressure needs, enhancing the versatility of the fan.
Centrifugal fan catalogues, available in pdf format, offer comprehensive information on the fan's specifications, features, and applications, providing a valuable resource for engineers and designers. The fan's design is also validated through centrifugal fan cfd simulations, ensuring optimal performance and efficiency.
Constructed with durable materials, the 310mm DC Centrifugal Fan is designed for easy installation and maintenance, with user-friendly installation options and easily serviceable components. Its energy-saving features and eco-friendly operation make it a reliable choice for sustainable development in ventilation technology.
In summary, the 310mm DC Centrifugal Fan is a versatile and reliable air mover, combining high performance with quiet operation, ease of installation, and sustainable design. Whether you're looking for a centrifugal fan catalogue pdf for detailed specifications or need a centrifugal fan cfm calculator for performance estimation, this fan offers a comprehensive solution for a wide range of ventilation needs.
Nominal Voltage | VDC | 48 |
Nominal voltage range | VDC | 36~57 |
Current draw | A | 7.0±10% |
Speed(RPM) | min-1 | 2220±5% |
Power consumption | W | 336±10% |
Sound Pressure Level | dB(A） | 69±5% |

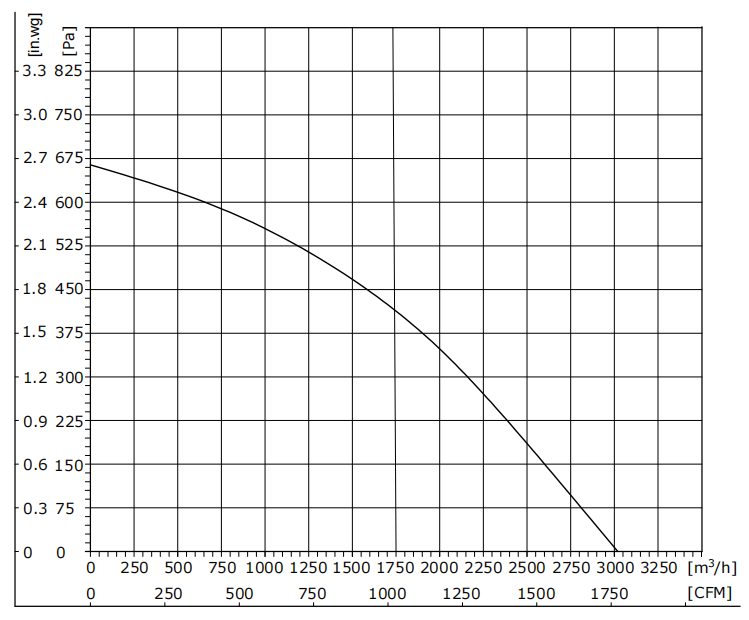

Max. Air Flow | CFM / m3/H | 1777.27/3020 |
Max. Static Pressure | In.wg /Pa | 2.66/665 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Nominal Voltage | VDC | 48 |
Nominal voltage range | VDC | 36~57 |
Current draw | A | 7.0±10% |
Speed(RPM) | min-1 | 2220±5% |
Power consumption | W | 336±10% |
Sound Pressure Level | dB(A） | 69±5% |
Max. Air Flow | CFM / m3/H | 1777.27/3020 |
Max. Static Pressure | In.wg /Pa | 2.66/665 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Life Expectance | 50,000 Hours(L10)，At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH | |
Life Expectance | 50,000 Hours(L10)，At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH | |
