50mm AC Cross Flow Fan Cross Flow Fan Design

1. 50mm
2. IP44 protection level
3. Aluminum alloy motor with Aluminum alloy impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • AC Cross Flow Fan 50mm

  • Fanova

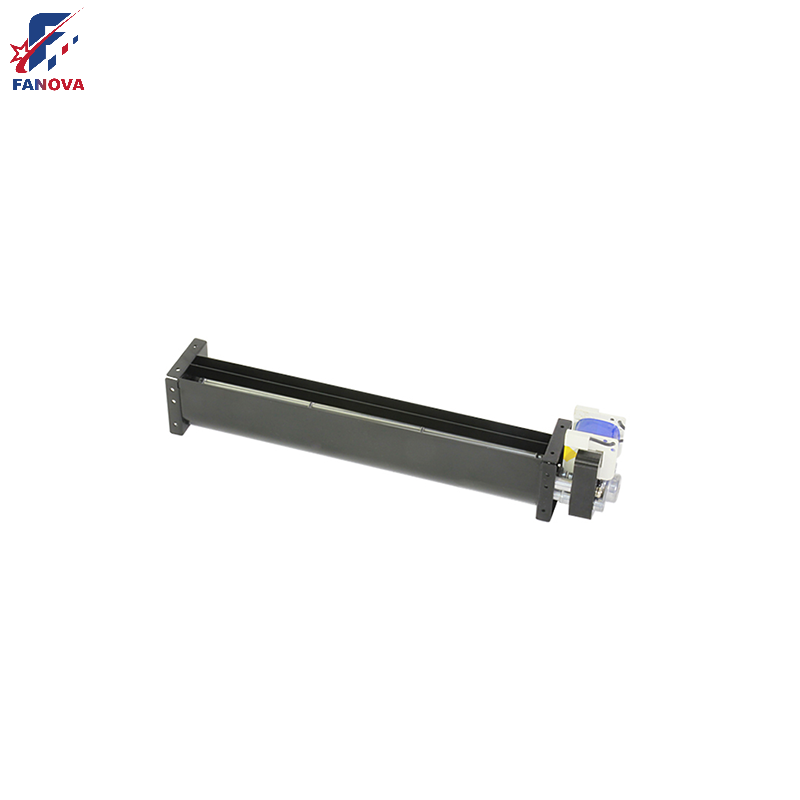

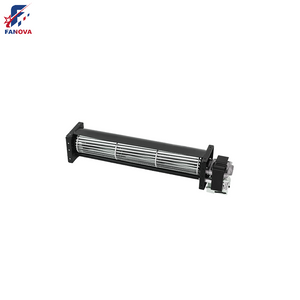

AC Cross Flow Fan 50mm

   The AC Cross Flow Fan, with a 50mm diameter, is a versatile and efficient cooling component designed for a range of applications where space is less of a constraint compared to the 40mm model. This slightly larger size offers a balance between compactness and cooling capacity, suitable for medium-sized enclosures or devices that demand more airflow.

  1. Enhanced Cooling: The 50mm fan provides a greater surface area for air movement, resulting in higher airflow rates compared to smaller models, which is beneficial for devices generating more heat.

  2. Optimized Performance: These fans are engineered to deliver optimal performance with a focus on both air delivery and static pressure, making them effective for applications requiring direct cooling of components.

  3. Robust Construction: Built with durable materials, the 50mm AC Cross Flow Fan is designed to withstand the rigors of continuous operation, ensuring long-term reliability.

  4. Low Noise Emission: Despite the increased size, these fans are still equipped with technologies to minimize noise, maintaining an acceptable operational sound level for most environments.

  5. Easy Integration: With standard mounting points, the 50mm fan can be easily integrated into existing systems or new designs without significant modifications.

  6. Adjustable Speed: The speed of the fan can often be adjusted, allowing users to fine-tune the cooling performance to match the thermal load of their specific application.

  7. Energy Efficiency: The 50mm AC Cross Flow Fan is typically designed to be energy efficient, consuming less power while providing effective cooling.

Fanova-9Fanova-10
