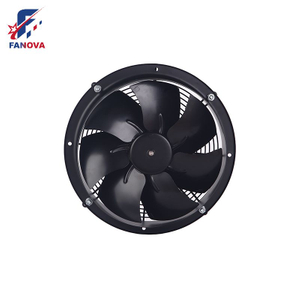

FG3G400-48PL-20
Fanova
Nominal Voltage | VDC | 48 |
Nominal voltage range | VDC | 36~57 |
Current draw | A | 5.7±10% |
Speed(RPM) | min-1 | 1400±5% |
Power consumption | W | 274±10% |
Sound Pressure Level | dB(A） | 68±5% |
Max. Air Flow | CFM / m3/H | 2783.61/4730 |
Max. Static Pressure | In.wg /Pa | 0.9/225 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
The FG3G400-48PL-20 is a high-airflow axial fan with an integrated safety grille, engineered for large-scale ventilation in industrial and commercial spaces. Featuring a massive 400mm plastic-GF impeller and a 48VDC BLDC motor (Model BLDC102), it delivers exceptional airflow (4,730 m³/h) at low noise levels (68 dB(A)). Designed for IP44 protection and wide voltage input (36–57VDC), it prioritizes safety, efficiency, and ease of installation in high-volume cooling applications.
High-Capacity Airflow
Moves 4,730 m³/h of air—ideal for large spaces like warehouses, factories, or server farms—while operating quietly at 1,400 RPM.
Integrated Safety Grille
Built-in protective grille prevents accidental contact with blades, enhancing operational safety in accessible or public areas.
Energy-Efficient Power
Consumes only 274W (±10%) despite high airflow output, with 0–10VDC/PWM control for dynamic speed adjustment.
Industrial Resilience
IP44-rated against dust/moisture, operates from -25°C to 60°C, and features ball bearings for 50,000-hour lifespan (L10).
Industrial Ventilation: Large factory floors, welding stations, or paint booths.
Commercial HVAC: Air exchange in shopping malls, theaters, or gymnasiums.
Data Centers: Bulk airflow for server halls or cooling corridors.
Agricultural Facilities: Greenhouse or livestock barn ventilation.
Q: Why include a safety grille?
A: Prevents injuries from accidental blade contact—critical for installations in high-traffic areas.
Q: Can it handle outdoor conditions?
A: IP44 rating resists rain/splashes but avoid direct exposure to harsh weather or corrosive environments.
Q: How does it achieve low noise at high airflow?
A: Optimized 5-blade aerodynamics reduce turbulence, while low RPM (1,400) minimizes vibration.
Q: Is the grille removable?
A: No—permanently attached for compliance with safety standards.
