EC 190mm 85W 230V Multifunctional Ventilation Blower Cooling Centrifugal Fan for All Kinds of Environments
1. 190mm 2. IP44 protection level 3. Aluminum alloy motor with Plastic with glass-fiber reinforced impeller, fashion design. 4. Using Ball bearing, working life more than 50,000 hours
230V Versatile General-Purpose Fan Centrifugal Fan for Suitable Multiple Scenarios 190mm
Product Features
High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
230V Versatile General-Purpose Fan Centrifugal Fan for Suitable Multiple Scenarios 190mm
Product Features
High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
Phase
~
1~
Nominal Voltage
VAC
230
Nominal voltage range
VAC
184~270
Frequency
Hz
50/60
Current draw
A
0.55±10%
Speed(RPM)
min-1
3100±5%
Power consumption
W
85±10%
Sound Pressure Level
dB(A）
70±5%

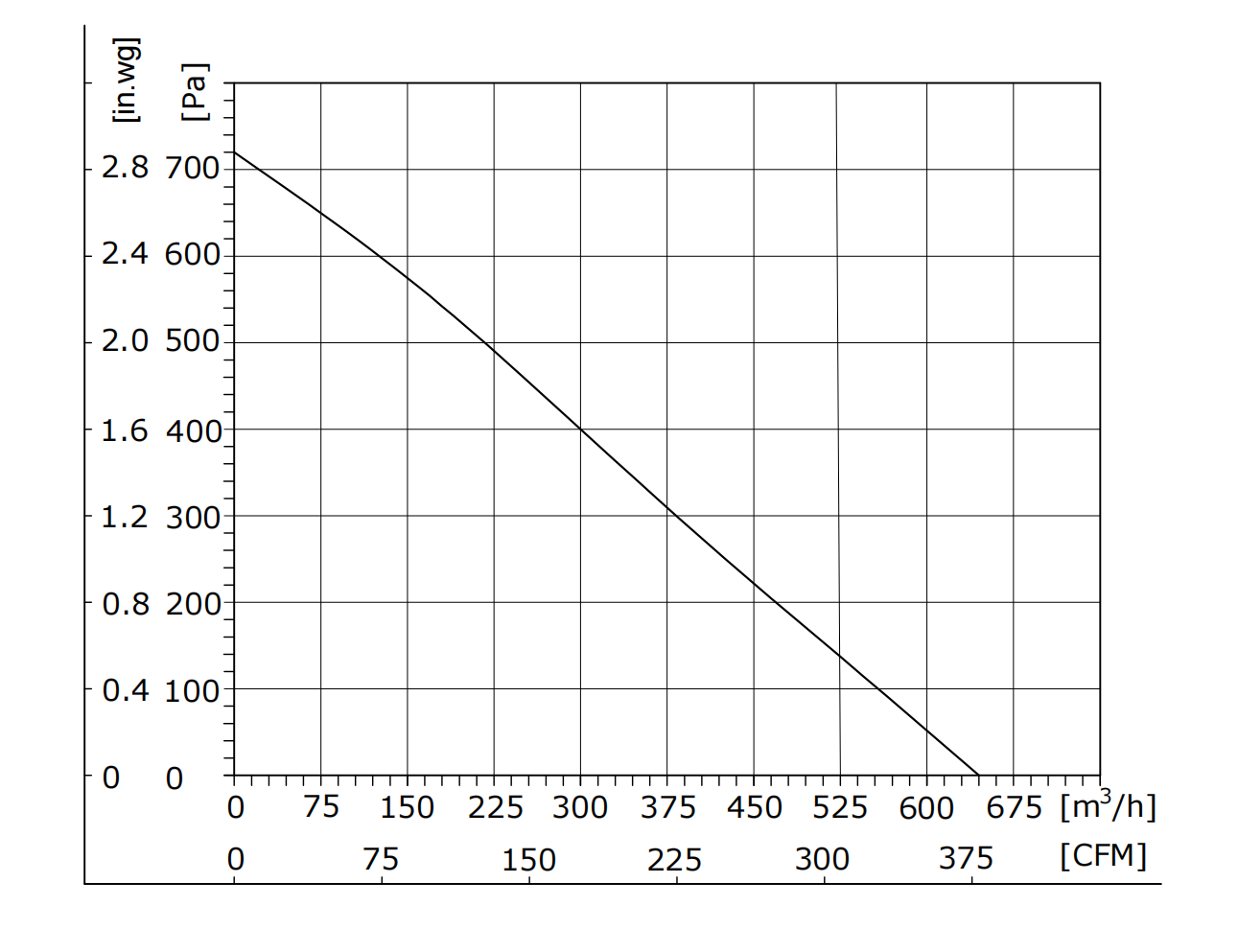

Max. Air Flow
CFM / m3/H
379.58/645
Max. Static Pressure
In.wg /Pa
2.88/720
Insulation class
~
Class B
Degree of protection
~
IP44
Control Input
~
0~10VDC / PWM
Signal Output
~
FG (Tach output )
Phase
~
1~
Nominal Voltage
VAC
230
Nominal voltage range
VAC
184~270
Frequency
Hz
50/60
Current draw
A
0.55±10%
Speed(RPM)
min-1
3100±5%
Power consumption
W
85±10%
Sound Pressure Level
dB(A）
70±5%
Max. Air Flow
CFM / m3/H
379.58/645
Max. Static Pressure
In.wg /Pa
2.88/720
Insulation class
~
Class B
Degree of protection
~
IP44
Control Input
~
0~10VDC / PWM
Signal Output
~
FG (Tach output )
Voltage Output
Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance
10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance
50,000 Hours(L10)
Leakage Current
≤3.5mA (Max. )
Direction of Air Flow
Straight forward from air outlet
Motor
External rotor EC motor
Technical features
Motor current limitation
Soft starting Protection
Under/Over voltage detection
Thermal overload protection for electronics/motor
Line undervoltage detection
Locked-rotor Protection
Reverse Polarity Protection
Operating Temperature
-25ºC (Min. )
60ºC (Max. )
Heat sink of IC
115ºC (Max. )
Other electronic parts
85ºC (Max. )
Ball bering
80ºC (Max. )
Lead Wire
120ºC (Max. )
Storage Temperature
-40ºC to 75ºC
Operating Humidity
5% to 90% RH
Storage Humidity
5% to 95% RH
Electronics housing material
Die-cast aluminum
Operation Mode
S1
Motor bearing
Ball bearing
Valid For Approval/Standard
CE,RoHS,ErP2015
Voltage Output
Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance
10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
