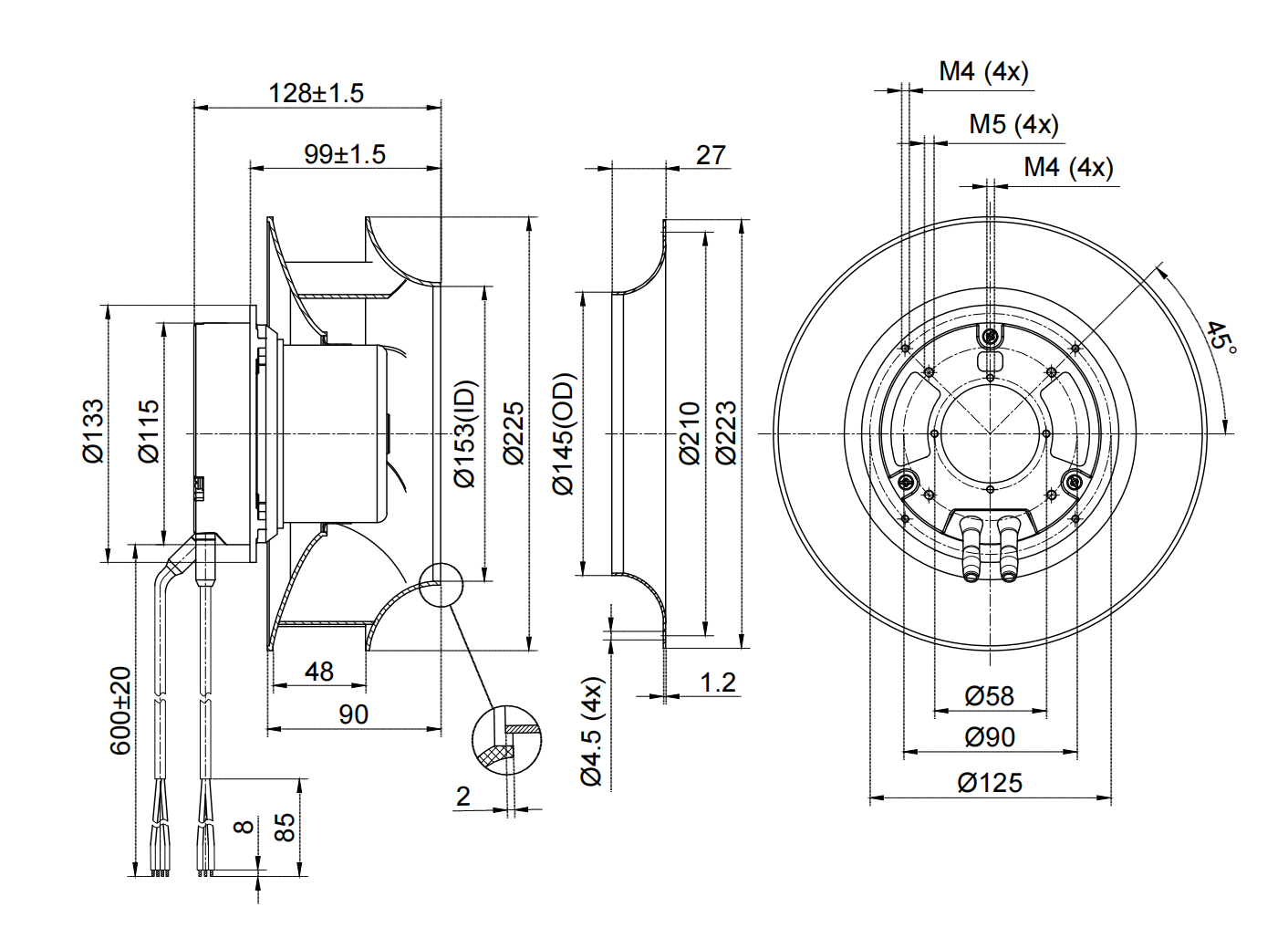

1. 225mm 2. IP44 protection level 3. Aluminum alloy motor with Plastic with glass-fiber reinforced impeller, fashion design. 4. Using Ball bearing, working life more than 50,000 hours
Introduction to 230V Intelligently Adaptable Centrifugal EC Fan with 225mm Diameter
This 230V intelligently adaptable centrifugal EC fan, with a diameter of 225mm, is designed to meet the diverse needs of various systems. It features advanced EC motor technology, providing high efficiency and low noise operation. The fan is suitable for a wide range of applications, including HVAC systems, cooling, air purification, refrigeration, automotive equipment, and medical equipment.
Key Features:
High Efficiency: The fan delivers high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
Low Noise: Utilizing advanced fluid dynamics technology, the fan adjusts blade angles to achieve high airflow while keeping noise levels low.
Wide Application Range: It is suitable for industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
Sustainable Development: Designed with energy-saving and environmentally friendly features, the fan uses new materials such as fiberglass-reinforced plastic, meeting eco-friendly energy requirements and providing long-term reliability.
Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, the fan features user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
Introduction to 230V Intelligently Adaptable Centrifugal EC Fan with 225mm Diameter
This 230V intelligently adaptable centrifugal EC fan, with a diameter of 225mm, is designed to meet the diverse needs of various systems. It features advanced EC motor technology, providing high efficiency and low noise operation. The fan is suitable for a wide range of applications, including HVAC systems, cooling, air purification, refrigeration, automotive equipment, and medical equipment.
Key Features:
High Efficiency: The fan delivers high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
Low Noise: Utilizing advanced fluid dynamics technology, the fan adjusts blade angles to achieve high airflow while keeping noise levels low.
Wide Application Range: It is suitable for industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
Sustainable Development: Designed with energy-saving and environmentally friendly features, the fan uses new materials such as fiberglass-reinforced plastic, meeting eco-friendly energy requirements and providing long-term reliability.
Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, the fan features user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
Phase
~
1~
Nominal Voltage
VAC
230
Nominal voltage range
VAC
184~270
Frequency
Hz
50/60
Current draw
A
0.95±10%
Speed(RPM)
min-1
2700±5%
Power consumption
W
150±10%
Sound Pressure Level
dB(A）
73±5%
Max. Air Flow
CFM / m3/H
707.38/1202

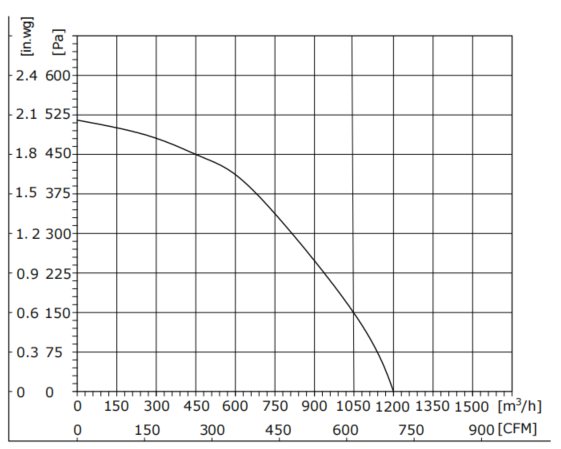

Max. Static Pressure
In.wg /Pa
2.06/514
Insulation class
~
Class B
Degree of protection
~
IP44
Control Input
~
0~10VDC / PWM
Signal Output
~
FG (Tach output )
Phase
~
1~
Nominal Voltage
VAC
230
Nominal voltage range
VAC
184~270
Frequency
Hz
50/60
Current draw
A
0.95±10%
Speed(RPM)
min-1
2700±5%
Power consumption
W
150±10%
Sound Pressure Level
dB(A）
73±5%
Max. Air Flow
CFM / m3/H
707.38/1202
Max. Static Pressure
In.wg /Pa
2.06/514
Insulation class
~
Class B
Degree of protection
~
IP44
Control Input
~
0~10VDC / PWM
Signal Output
~
FG (Tach output )
Voltage Output
Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance
10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance
50,000 Hours(L10)
Leakage Current
≤3.5mA (Max. )
Direction of Air Flow
All around,Straight forward from air outlet
Motor
External rotor EC motor
Technical features
Motor current limitation
Soft starting Protection
Under/Over voltage detection
Thermal overload protection for electronics/motor
Line undervoltage detection
Locked-rotor Protection
Reverse Polarity Protection
Operating Temperature
-25ºC (Min. )
60ºC (Max. )
Heat sink of IC
115ºC (Max. )
Other electronic parts
85ºC (Max. )
Ball bering
80ºC (Max. )
Lead Wire
120ºC (Max. )
Storage Temperature
-40ºC to 75ºC
Operating Humidity
5% to 90% RH
Storage Humidity
5% to 95% RH
Electronics housing material
Die-cast aluminum
Operation Mode
S1
Motor bearing
Ball bearing
Valid For Approval/Standard
CE,RoHS,ErP2015
Voltage Output
Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance
10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
