EC 230V 260W 146mm High Efficient Ventilation Dual Inlet Centrifugal Blower With Scroll Housing

1. 146mm
2. IP44 protection level
3. Aluminum alloy motor with galvanized steel sheet impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FD3G146-2AGL-90外置电控板

  • Fanova

                                              Dual Inlet Centrifugal Blower with Scroll Housing

Revamp your ventilation strategy with our innovative Dual Inlet Centrifugal Blower, complete with a Scroll Housing design. This high-performing blower is meticulously crafted to deliver exceptional performance and reliability across a myriad of applications, making it an ideal choice for those seeking the versatility of a backpack leaf blower with the power of a snow blower.

Key Features:

  • Dual Inlet Design: Our blower stands out with its dual inlet system, offering greater adaptability in installation and the unique ability to draw air from two distinct sources simultaneously. This feature is reminiscent of the convenience offered by a backpack leaf blower, allowing for more efficient operation in various environments.

  • Scroll Housing: The incorporation of a scroll housing significantly enhances the blower's efficiency by guiding air smoothly through its spiral form, reducing turbulence and pressure loss. This design is akin to the streamlined performance of an electric leaf blower, ensuring optimal airflow.

  • High-Performance Motor: Equipped with a powerful motor, this blower delivers consistent and robust airflow, making it well-suited for demanding industrial and commercial applications, much like the forceful capabilities of a snow blower.

  • Robust Construction: Built with top-tier materials, our blower is designed for durability and longevity, even in the toughest conditions, ensuring a reliable performance that echoes the sturdiness of a professional leaf blower.

  • Low Noise Operation: With noise reduction at the forefront of its design, this blower operates quietly, making it an excellent choice for noise-sensitive areas, just as an electric leaf blower would be preferred for its quiet operation.

  • Energy Efficiency: Our blower is crafted for maximum energy utilization, cutting down on operational costs and reducing the environmental impact, a feature that aligns with the eco-friendliness of electric leaf blowers.

  • Versatile Applications: This blower is perfect for a wide range of uses, from HVAC systems to industrial ventilation and air pollution control, showcasing its adaptability similar to that of a versatile leaf blower.

  • Easy Maintenance: Designed for hassle-free access to its components, our blower facilitates easy maintenance, ensuring a long service life, a trait that is appreciated in both leaf blowers and snow blowers for their user-friendly upkeep.

Whether you're clearing debris from your property or managing heavy snowfall, our Dual Inlet Centrifugal Blower with Scroll Housing is the go-to solution for all your ventilation needs, offering the power and efficiency of a snow blower, the convenience of a backpack leaf blower, and the quiet operation of an electric leaf blower, all in one sophisticated package.Fanova-9Fanova-10



Phase

~

1~

额定电压 Nominal Voltage

VAC

230

电压范围 Nominal voltage range

VAC

184~270

频率 Frequency

Hz

50/60

电流消耗 Current draw

A

2.2±10%

转速 Speed(RPM)

min-1

1850±5%

功率消耗 Power consumption

W

260±10%

声压级 Sound Pressure Level

dB(A

74±5%

最大风量 Max. Air Flow

CFM / m3/H

882.1615/1499

最大静压 Max. Static Pressure

In.wg /Pa

2.16/540

绝缘等级 Insulation class

~

Class B

防护等级 Degree of protection

~

IP44

控制方式 Control Input

~

0~10VDC / PWM

信号输出 Signal Output

~

FG (Tach output )


Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH

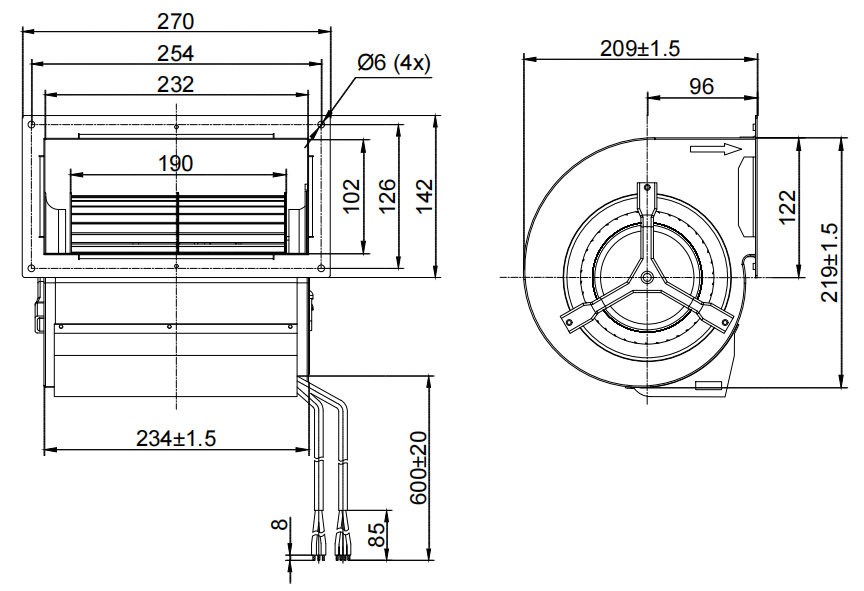

ECD146-2AGP-90外置电控板

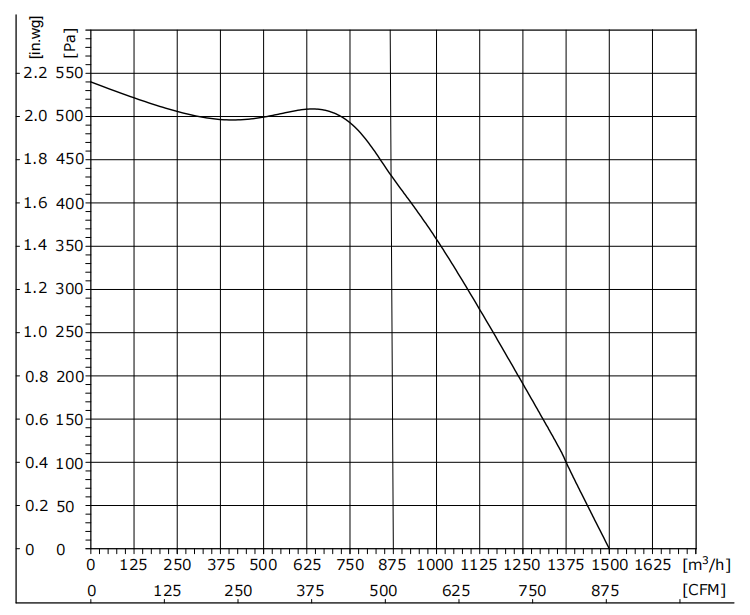

ED146-2AGP-90外置电控板
