FB3G190-110PS-90
Fanova
The DC Centrifugal Fan, boasting a 190mm diameter, is a powerhouse of ventilation technology, meticulously designed to meet the demands of substantial airflow and high static pressure in various applications. This fan is equipped with a backward curved impeller, which is optimal for generating greater static pressure, making it perfect for environments where efficient air movement against resistance is crucial.

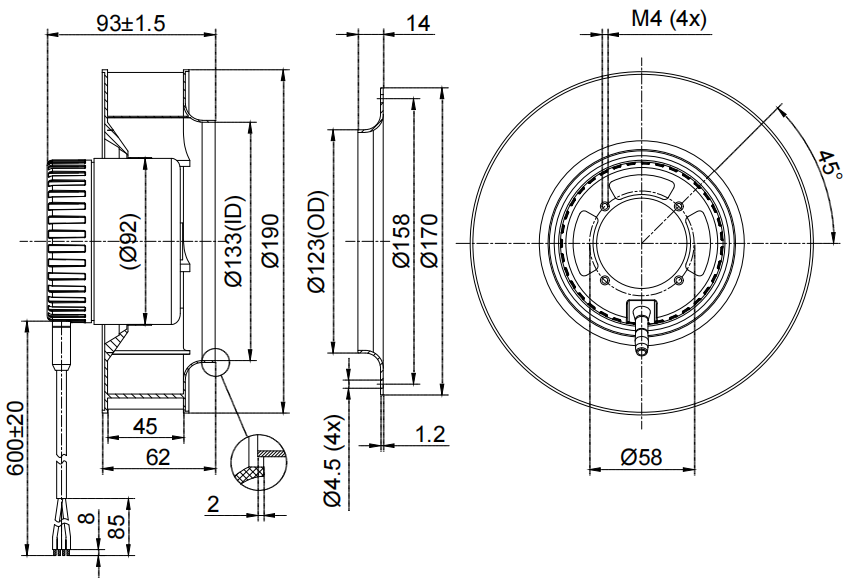

For the DIY enthusiast or professional looking to create a custom ventilation system, the DC Centrifugal Fan offers a centrifugal fan drawing that can be a valuable reference for constructing a centrifugal fan duct connection. The fan's aerodynamic design ensures quiet operation, reducing noise pollution to acceptable levels, which is essential for centrifugal fan for kitchen exhaust systems.
At the core of this centrifugal fan is a robust DC motor, which not only provides precise speed control but also exceptional energy efficiency. The variable speed capability allows for customization to match the exact requirements of any application, whether it's for industrial processes, commercial ventilation systems, or HVAC applications. This feature is particularly beneficial when considering centrifugal fan efficiency and the need for centrifugal fan high pressure in certain scenarios.
The backward curved blades of the centrifugal fan contribute to a balanced and stable operation, minimizing vibrations and ensuring a smooth airflow. This design is a testament to the centrifugal fan handbook's principles, which emphasize the importance of blade curvature for optimal performance.
For those interested in the theoretical aspects, the centrifugal fan equations provide the mathematical foundation for understanding the fan's performance characteristics. These equations are essential for anyone looking to optimize the centrifugal fan's performance or to design a centrifugal fan filter that can effectively manage air quality.
The 190mm DC Centrifugal Fan is constructed with high-quality materials, making it durable and resistant to corrosion. It is built to withstand high temperatures and the rigors of continuous operation, suitable for a wide range of operating conditions. Whether you're looking for a centrifugal fan home depot or a centrifugal fan gif to visualize its operation, this fan is designed to exceed expectations in terms of performance and reliability.
In summary, the 190mm DC Centrifugal Fan is a testament to the marriage of advanced technology and practical design, offering a solution that is both efficient and adaptable for a variety of applications. Its centrifugal fan duct connection capabilities, combined with its high-pressure performance, make it an ideal choice for those seeking a robust and reliable ventilation solution.
The DC Centrifugal Fan, boasting a 190mm diameter, is a powerhouse of ventilation technology, meticulously designed to meet the demands of substantial airflow and high static pressure in various applications. This fan is equipped with a backward curved impeller, which is optimal for generating greater static pressure, making it perfect for environments where efficient air movement against resistance is crucial.
For the DIY enthusiast or professional looking to create a custom ventilation system, the DC Centrifugal Fan offers a centrifugal fan drawing that can be a valuable reference for constructing a centrifugal fan duct connection. The fan's aerodynamic design ensures quiet operation, reducing noise pollution to acceptable levels, which is essential for centrifugal fan for kitchen exhaust systems.
At the core of this centrifugal fan is a robust DC motor, which not only provides precise speed control but also exceptional energy efficiency. The variable speed capability allows for customization to match the exact requirements of any application, whether it's for industrial processes, commercial ventilation systems, or HVAC applications. This feature is particularly beneficial when considering centrifugal fan efficiency and the need for centrifugal fan high pressure in certain scenarios.
The backward curved blades of the centrifugal fan contribute to a balanced and stable operation, minimizing vibrations and ensuring a smooth airflow. This design is a testament to the centrifugal fan handbook's principles, which emphasize the importance of blade curvature for optimal performance.
For those interested in the theoretical aspects, the centrifugal fan equations provide the mathematical foundation for understanding the fan's performance characteristics. These equations are essential for anyone looking to optimize the centrifugal fan's performance or to design a centrifugal fan filter that can effectively manage air quality.
The 190mm DC Centrifugal Fan is constructed with high-quality materials, making it durable and resistant to corrosion. It is built to withstand high temperatures and the rigors of continuous operation, suitable for a wide range of operating conditions. Whether you're looking for a centrifugal fan home depot or a centrifugal fan gif to visualize its operation, this fan is designed to exceed expectations in terms of performance and reliability.
In summary, the 190mm DC Centrifugal Fan is a testament to the marriage of advanced technology and practical design, offering a solution that is both efficient and adaptable for a variety of applications. Its centrifugal fan duct connection capabilities, combined with its high-pressure performance, make it an ideal choice for those seeking a robust and reliable ventilation solution.
Nominal Voltage | VDC | 110 |
Nominal voltage range | VDC | 88~132 |
Current draw | A | 1.6±10% |
Speed(RPM) | min-1 | 4300±5% |
Power consumption | W | 175±10% |
Sound Pressure Level | dB(A） | 73±5% |

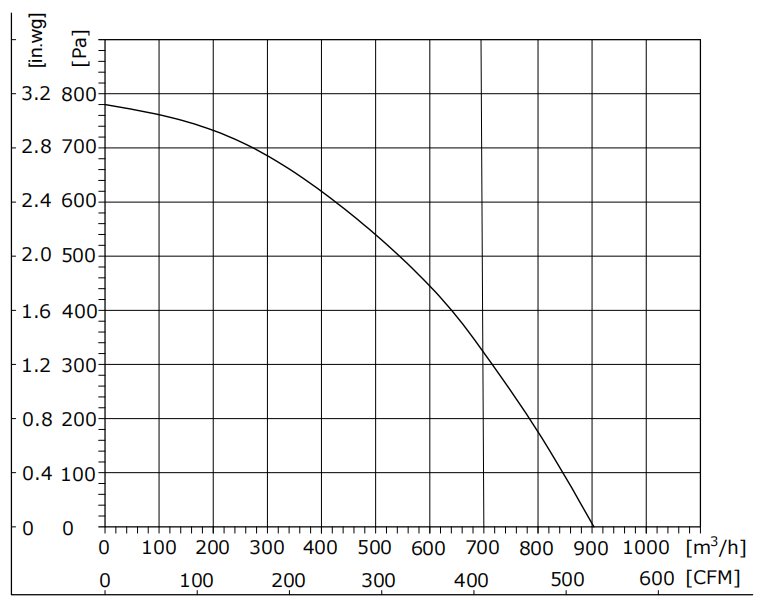

Max. Air Flow | CFM / m3/H | 531.42/903 |
Max. Static Pressure | In.wg /Pa | 3.12/782 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Nominal Voltage | VDC | 110 |
Nominal voltage range | VDC | 88~132 |
Current draw | A | 1.6±10% |
Speed(RPM) | min-1 | 4300±5% |
Power consumption | W | 175±10% |
Sound Pressure Level | dB(A） | 73±5% |
Max. Air Flow | CFM / m3/H | 531.42/903 |
Max. Static Pressure | In.wg /Pa | 3.12/782 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Life Expectance | 50,000 Hours(L10)，At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH | |
Life Expectance | 50,000 Hours(L10)，At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH | |
