FS3G120-24GL-70
Fanova

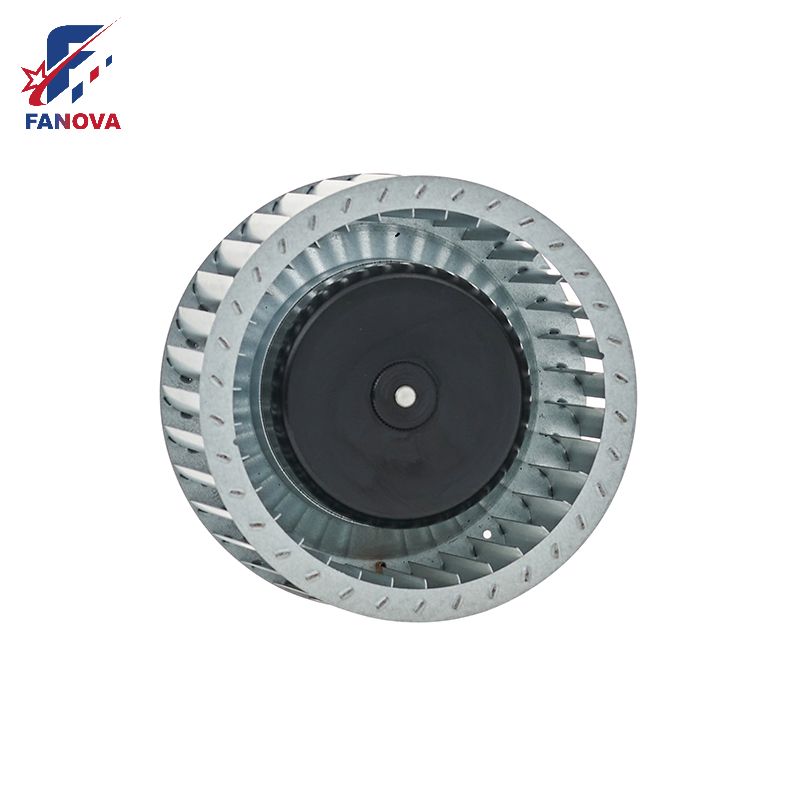

120mm Forward Centrifugal Blower Without Scroll Housing
Introducing our 120mm DC Small Forward Centrifugal Blower, a compact powerhouse designed to deliver exceptional airflow with remarkable efficiency. This innovative blower is the epitome of performance, perfect for applications where space is at a premium but high airflow is a must.
Performance advantage
High efficiency: Advanced design and high-quality materials ensure high efficiency and low energy consumption during operation.
Low noise: Ball bearings and optimized impeller design make the fan less noisy during operation, suitable for places with strict noise requirements.
Long life: A variety of protection functions and high-quality materials make the fan have a long service life and reduce maintenance costs.
Strong adaptability: can work normally in a wide range of temperature and humidity, adapt to a variety of harsh environments, such as high temperature, high humidity, dust and so on.
120mm Forward Centrifugal Blower Without Scroll Housing
Introducing our 120mm DC Small Forward Centrifugal Blower, a compact powerhouse designed to deliver exceptional airflow with remarkable efficiency. This innovative blower is the epitome of performance, perfect for applications where space is at a premium but high airflow is a must.
Performance advantage
High efficiency: Advanced design and high-quality materials ensure high efficiency and low energy consumption during operation.
Low noise: Ball bearings and optimized impeller design make the fan less noisy during operation, suitable for places with strict noise requirements.
Long life: A variety of protection functions and high-quality materials make the fan have a long service life and reduce maintenance costs.
Strong adaptability: can work normally in a wide range of temperature and humidity, adapt to a variety of harsh environments, such as high temperature, high humidity, dust and so on.
Nominal Voltage | VAC | 24 |
Nominal voltage range | VAC | 16~28 |
Current draw | A | 2.8±10% |
Speed(RPM) | min-1 | 2580±5% |
Power consumption | W | 67±10% |
Sound Pressure Level | dB(A) | 65±5% |

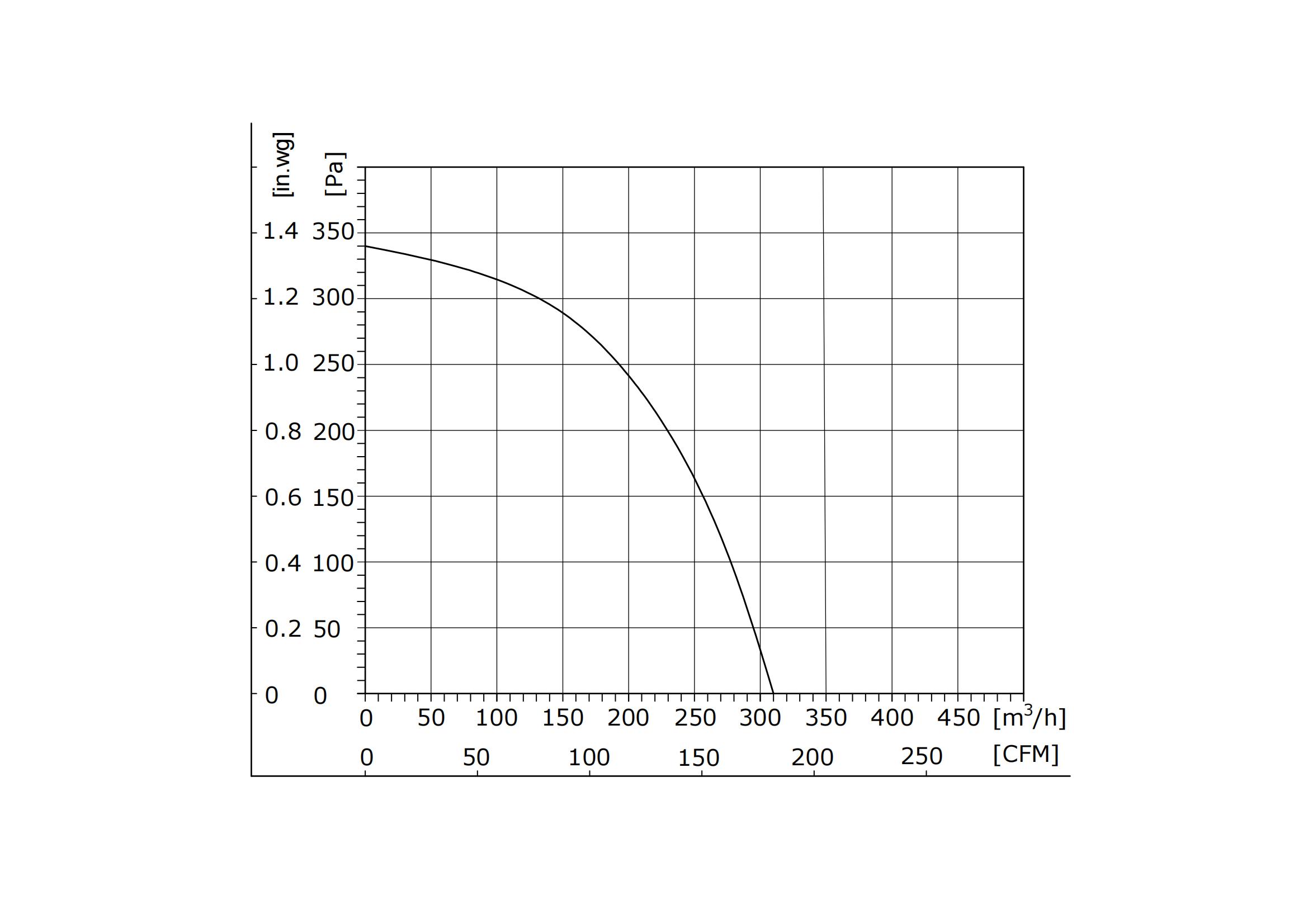

Max. Air Flow | CFM / m3/H | 182.435/310 |
Max. Static Pressure | In.wg /Pa | 1.36/340 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Nominal Voltage | VAC | 24 |
Nominal voltage range | VAC | 16~28 |
Current draw | A | 2.8±10% |
Speed(RPM) | min-1 | 2580±5% |
Power consumption | W | 67±10% |
Sound Pressure Level | dB(A) | 65±5% |
Max. Air Flow | CFM / m3/H | 182.435/310 |
Max. Static Pressure | In.wg /Pa | 1.36/340 |
Insulation class | ~ | Class B |
Degree of protection | ~ | IP44 |
Control Input | ~ | 0~10VDC / PWM |
Signal Output | ~ | FG (Tach output ) |
Life Expectance | 50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH |
Life Expectance | 50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH |
Technical features | Motor current limitation |
Soft starting Protection | |
Under/Over voltage detection | |
Thermal overload protection for electronics/motor | |
Line undervoltage detection | |
Locked-rotor Protection | |
Reverse Polarity Protection |
Operating Temperature | Fan | -25℃ (Min. )~60℃ (Max. ) |
Heat sink of IC | 115℃ (Max. ) | |
Other electronic parts | 85℃ (Max. ) | |
Ball bearing | 80℃ (Max. ) | |
Lead Wire | 120℃ (Max. ) | |
Storage Temperature | -40℃ to 75℃ | |
Operating Humidity | 5% to 90% RH | |
Storage Humidity | 5% to 95% RH |
