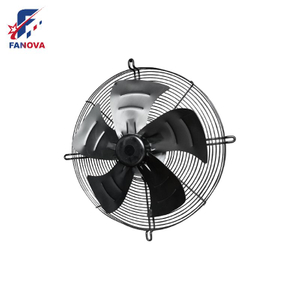

FW3G300-2APC-90圆形导风筒
Fanova
相 Phase | ~ | 1~ |
额定电压 Nominal Voltage | VAC | 230 |
电压范围 Nominal voltage range | VAC | 184~270 |
频率 Frequency | Hz | 50/60 |
电流消耗 Current draw | A | 1.35±10% |
转速 Speed(RPM) | min-1 | 2300±5% |
功率消耗 Power consumption | W | 170±10% |
声压级 Sound Pressure Level | dB(A） | 64±5% |
最大风量 Max. Air Flow | CFM / m3/H | 1859.66/3160 |
最大静压 Max. Static Pressure | In.wg /Pa | 0.84/210 |
绝缘等级 Insulation class | ~ | Class B |
防护等级 Degree of protection | ~ | IP44 |
控制方式 Control Input | ~ | 0~10VDC / PWM |
信号输出 Signal Output | ~ | FG (Tach output ) |
The FW3G300-2APC-90 is an energy-efficient EC axial fan featuring a circular wall ring design for optimized airflow in ventilation systems. Powered by a 230VAC brushless EC motor (BLEC92), it delivers substantial air volume (3160 m³/h) while maintaining quiet operation (64 dB(A)). Its 300mm plastic/fiberglass impeller and industrial-grade construction make it ideal for commercial and industrial airflow applications.
High-Efficiency EC Motor Technology
Operates on 184-270VAC mains power with low energy consumption (170W). The BLEC92 motor provides precise speed control via 0-10VDC/PWM input while generating minimal electromagnetic interference.
Optimized Airflow with Wall Ring Design
The integrated circular wall ring maximizes air delivery efficiency (3160 m³/h) while reducing turbulence noise. The 5-blade reinforced plastic impeller ensures durability at 2300 RPM operation.
Industrial Protections & Monitoring
Includes soft-start, voltage lockout, thermal cutoffs, and stall prevention. Features +10VDC reference output (red wire) for control systems and tachometer signal (4 pulses/revolution) for real-time RPM monitoring.
Commercial HVAC: Air handling units, ducted ventilation systems
Industrial Equipment Cooling: Machinery enclosures, control cabinets, process cooling
Building Ventilation: Parking garages, warehouses, and facility air exchange
Q1: What direction does the fan rotate?
It rotates counterclockwise when viewed from the rotor side.
Q2: Can this fan be ceiling-mounted?
Yes, it supports installation in any orientation including vertical or ceiling mounting.
Q3: How does the +10VDC output (red wire) function?
It provides a reference voltage (max 1.1mA) for external speed controllers or tachometer circuits.
Q4: What's the advantage of the wall ring design?
It reduces air recirculation and turbulence, improving efficiency and noise performance.
