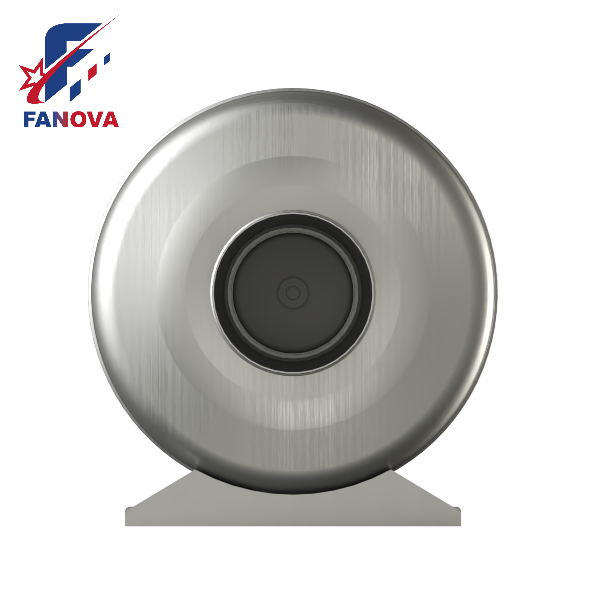

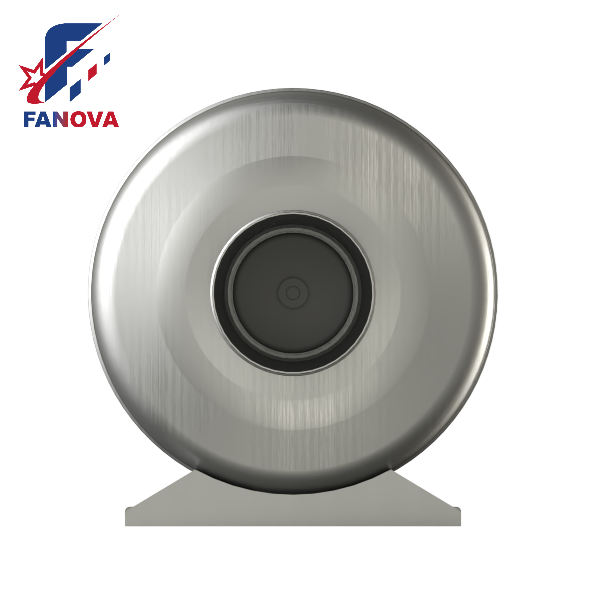

4 Inch 100mm Air Ec Centrifugal Duct Fan

1. 4inch 100mm
2. IP44 protection level
3. Aluminum alloy motor with plastic impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
5. 315m³/h airflow,904Pa air pressure
Availability:
Quantity:
  • FP3G175-2APY-70

  • Fanova

 4-Inch 100mm Air EC Centrifugal Duct Fan

    Introducing our 4 Inch 100mm Air Ec Centrifugal Duct Fan – a compact powerhouse designed to revolutionize the way you think about air movement in confined spaces. This duct fan is the epitome of efficiency, blending high performance with a sleek, space-saving design that's perfect for both residential and commercial applications.

Key Features:

  • Compact and Powerful: With a diameter of just 4 inches, our duct fan doesn't compromise on power. It delivers robust airflow, making it an ideal choice for areas where space is at a premium.

  • Innovative Design: Our inline duct fan is meticulously engineered to be installed directly in line with ductwork, ensuring seamless integration and minimal resistance to airflow.

  • Air Duct Fan Efficiency: Designed for optimal air circulation, our fan ensures even distribution of air throughout your duct system, enhancing the performance of your HVAC or ventilation setup.

  • In Line Duct Fan: The in line duct fan configuration allows for a straightforward installation process, with no need for complex ductwork modifications. It's the perfect solution for boosting airflow in existing systems.

  • Duct Fan Booster: For systems that require an extra boost, our fan acts as a duct fan booster, significantly improving the efficiency of air circulation and reducing the strain on your primary ventilation system.

  • Versatile Application: Whether you're looking to enhance the air quality in your home or improve the ventilation in a commercial kitchen, our duct fan is the versatile solution you need.

  • Easy Maintenance: With its straightforward design, our fan is easy to maintain, ensuring a long service life and minimal downtime.

  • Energy-Efficient Operation: Our air duct fan is designed to consume less power while delivering high performance, making it an energy-efficient choice for your ventilation needs.

Imagine a ventilation system that's both powerful and discreet – that's what our 4 Inch 100mm Air Ec Centrifugal Duct Fan offers. It's the perfect blend of form and function, providing a reliable airflow solution that's as unobtrusive as it is effective.

By incorporating a duct fan into your system, you're not just improving air circulation; you're investing in a smarter way to manage air quality. Whether it's used as a standalone unit or as a duct fan booster in an existing system, our 4-inch fan is the key to unlocking a more efficient and healthier environment.

Experience the difference with our 4 Inch 100mm Air Ec Centrifugal Duct Fan – where innovation meets practicality, and every corner of your space enjoys the perfect balance of fresh air.

Fanova-9Fanova-10

Phase

~

1~

Nominal Voltage

VAC

230

Nominal voltage range

VAC

184~270

Frequency

Hz

50/60

Current draw

A

0.5±10%

Speed(RPM)

min-1

3300±5%

Power consumption

W

85±10%

Sound Pressure Level

dB(A)

72±5%

Max. Air Flow

CFM / m3/H

185.38/315

Max. Static Pressure

In.wg /Pa

3.62/904

Insulation class

~

Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )

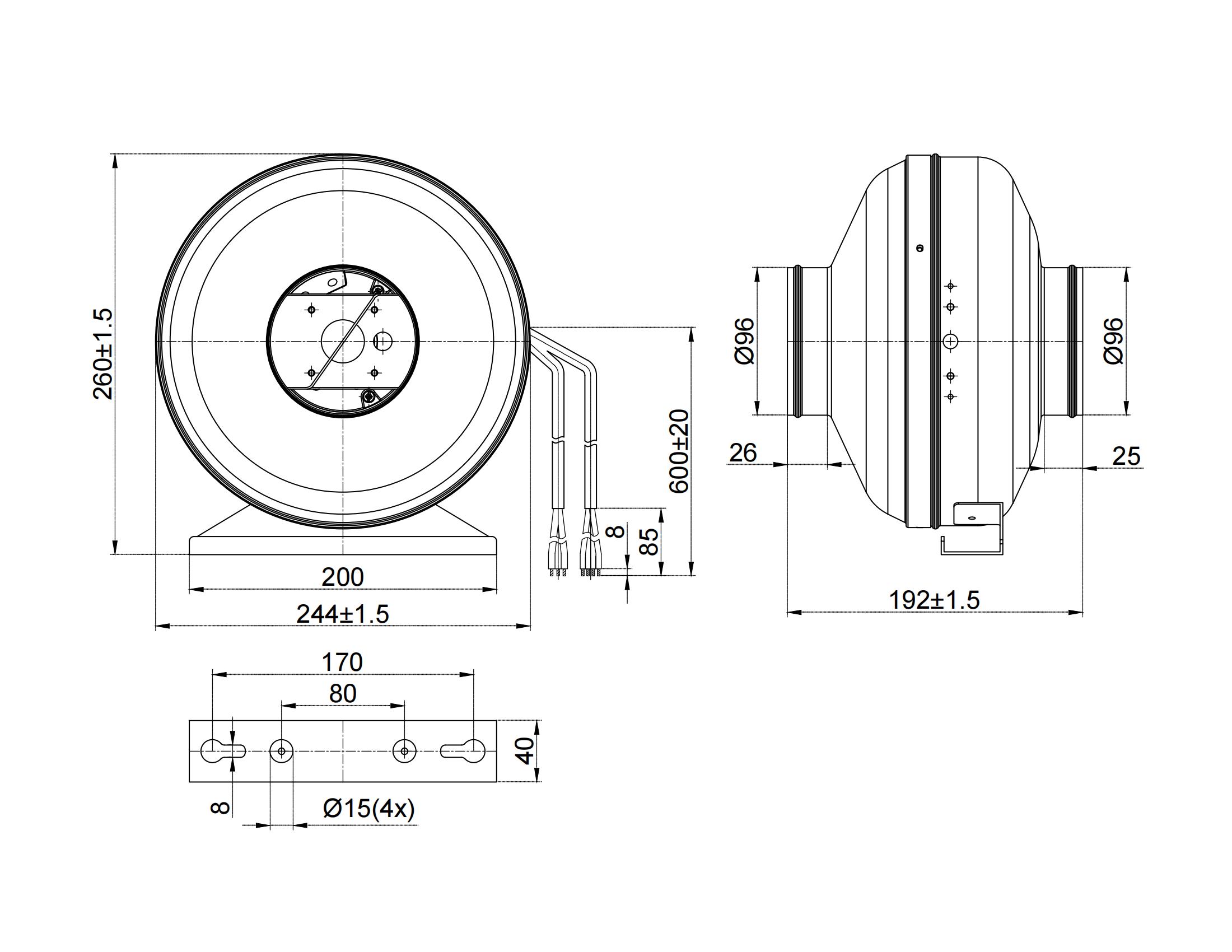

FP3G175-2APY-70-100mm Duct Fan_00

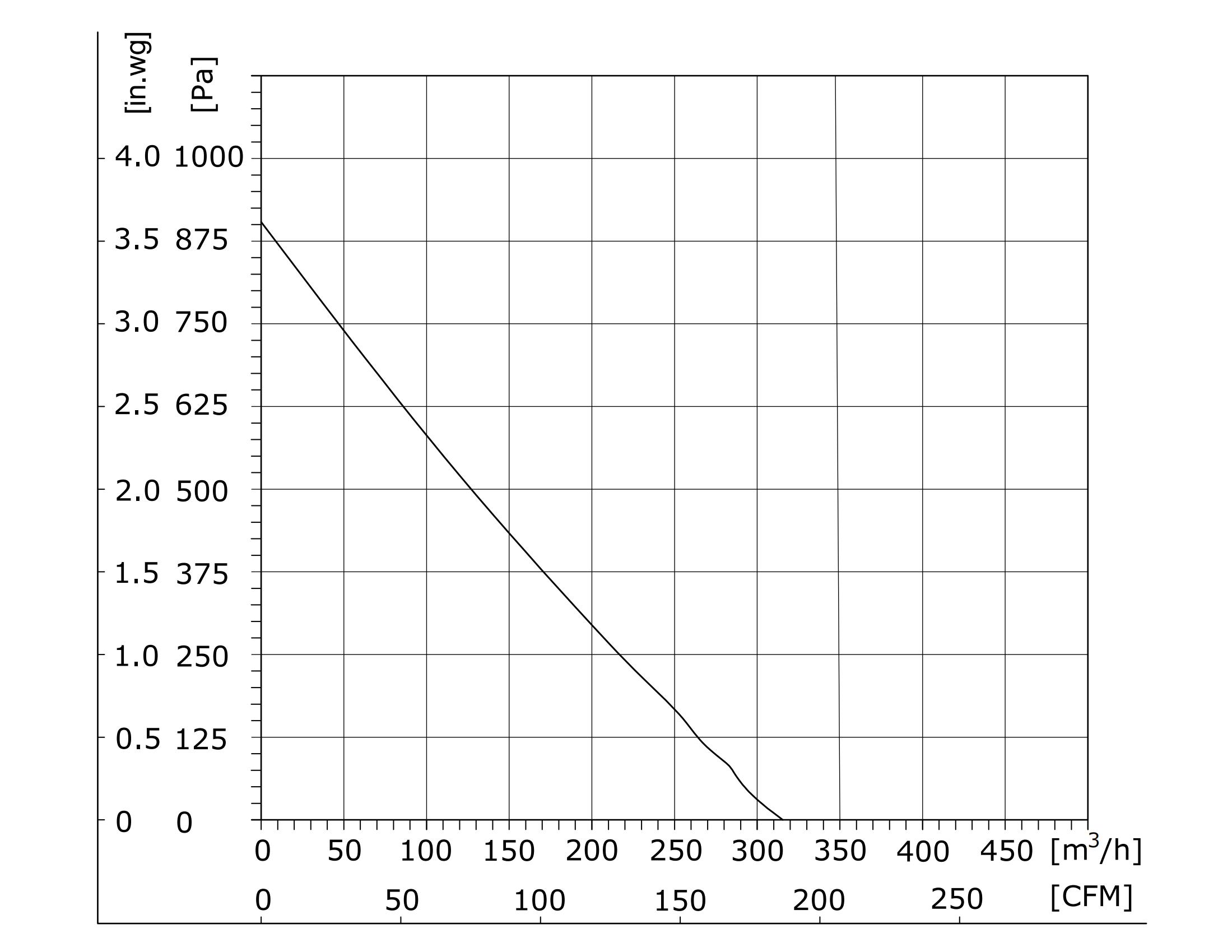

FP3G175-2APY-70-100mm Duct Fan-PQ_00
