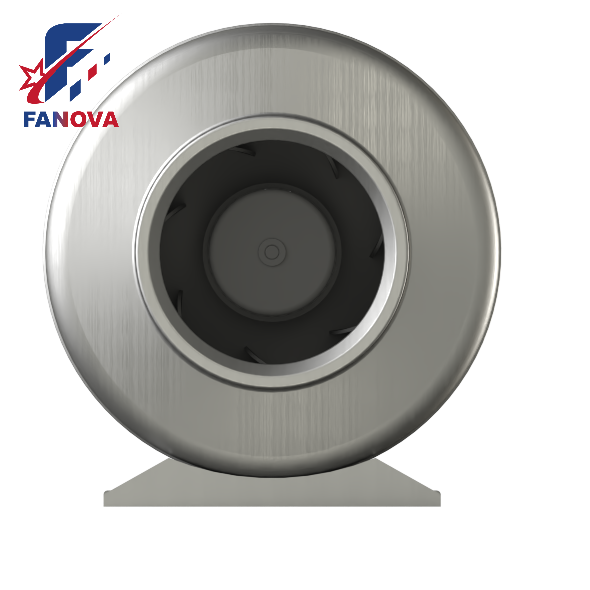

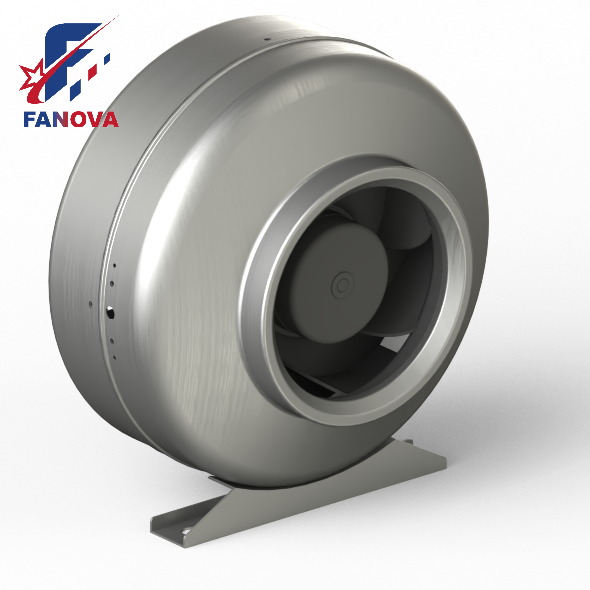

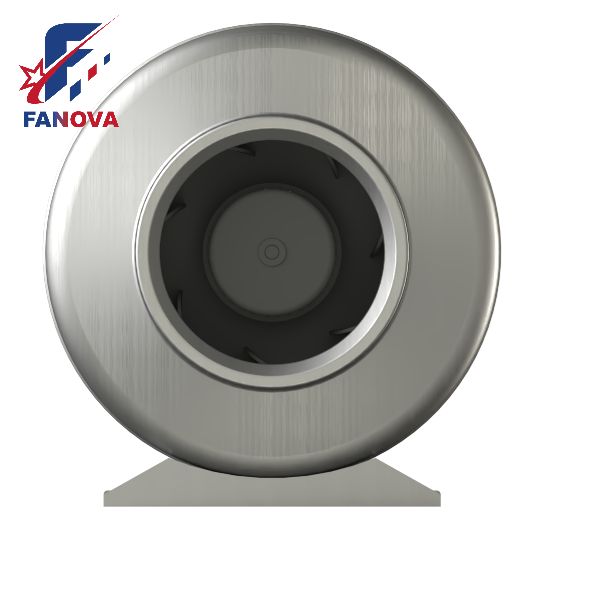

6 Inch 150mm Ec Circular Duct Fan

1. 6inch 150mm
2. IP44 protection level
3. Aluminum alloy motor with plastic impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
5. 677m³/h airflow,593Pa air pressure
Availability:
Quantity:
  • FP3G220-2APL-90

  • Fanova

 6-Inch 150mm Air EC Centrifugal Duct Fan

    Introducing our 6-Inch 150mm Air EC Centrifugal Duct Fan, a state-of-the-art cooling solution that redefines air movement with its innovative design and performance. This fan is not just a breath of fresh air; it's a revolution in ventilation technology, tailored for those seeking the perfect balance of efficiency and silence.

Key Features:

  • Air EC Technology: At the core of our 6-Inch fan lies the advanced Air EC (Electronic Commutator) technology, which ensures precise control over the fan's speed and performance, catering to the most demanding airflow requirements.

  • Centrifugal Force: Our fan utilizes the power of centrifugal force to propel air radially, making it an ideal choice for applications that require wide-range air distribution.

  • Cross Flow Design: With an integrated cross flow fan mechanism, this 150mm duct fan optimizes air movement across the blade surface, enhancing the overall cooling efficiency.

  • Versatile Voltage Compatibility: Designed for flexibility, our fan supports 12V cross flow fan operation, ensuring compatibility with a wide range of systems and setups.

  • AC Cross Flow Fan: Whether you're looking for an AC cross flow fan for your home or office, our 6-Inch model delivers consistent performance, making it the perfect addition to any air circulation system.

  • Air Conditioner Cross Flow Fan: Perfectly suited for air conditioning units, our fan ensures efficient heat exchange, improving the cooling capacity of your air conditioner with its air conditioner cross flow fan design.

  • Cooler Master Cross Flow Fan: For those who demand nothing but the best, our fan bears the hallmark of quality synonymous with the Cooler Master cross flow fan legacy, combining power with precision for unparalleled performance.

Our 6-Inch 150mm Air EC Centrifugal Duct Fan is more than just a fan; it's an engineering marvel that delivers on its promise of efficient and reliable air movement. With its cross flow fan design, it outperforms traditional fans in terms of both airflow and noise reduction, making it the silent guardian of your comfort.

This fan is the epitome of versatility, ready to serve in any environment, from personal computer cooling systems to large-scale ventilation projects. Its robust construction and easy installation make it a favorite among professionals and DIY enthusiasts alike.

Experience the difference with our 6-Inch 150mm Air EC Centrifugal Duct Fan. Let it be the heartbeat of your cooling system, the silent force that keeps your space fresh and comfortable.

Fanova-9Fanova-10

Phase

~

1~

Nominal Voltage

VAC

230

Nominal voltage range

VAC

184~270

Frequency

Hz

50/60

Current draw

A

0.5±10%

Speed(RPM)

min-1

2600±5%

Power consumption

W

85±10%

Sound Pressure Level

dB(A)

68±5%

Max. Air Flow

CFM / m3/H

703.26/677

Max. Static Pressure

In.wg /Pa

4.01/593

Insulation class

~

Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )

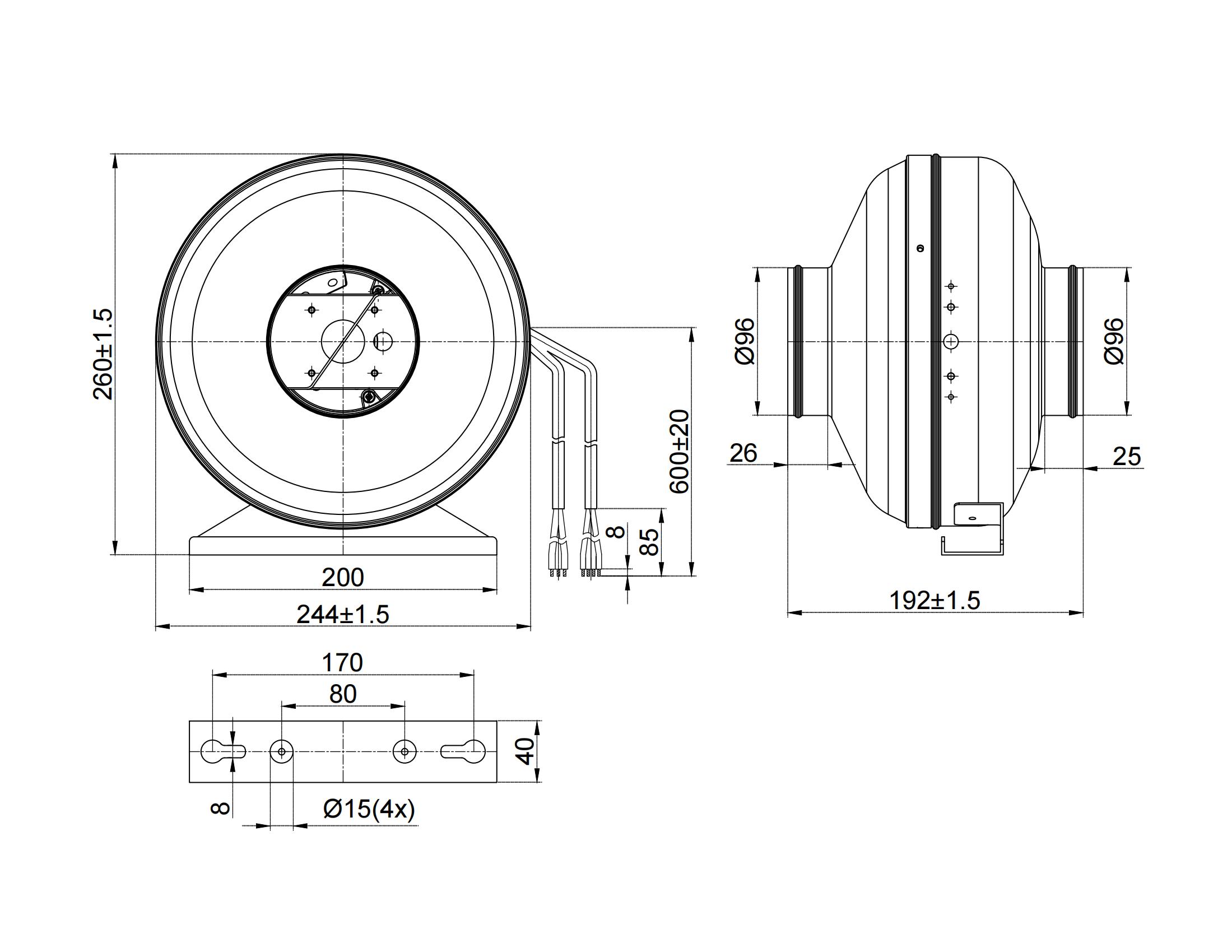

FP3G175-2APY-70-100mm Duct Fan_00

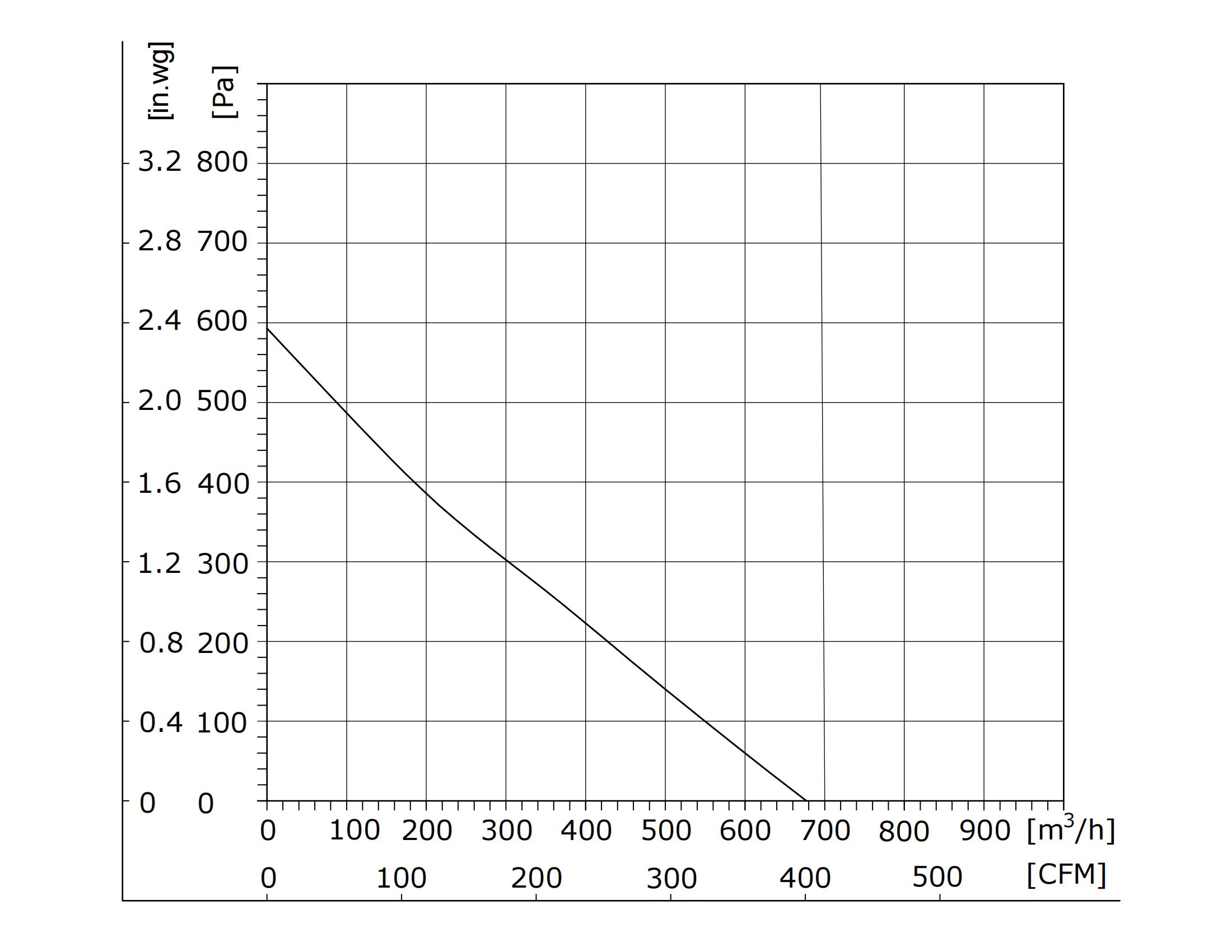

FP3G220-2APY-90-150mm Ec Circular Duct Fan-PQ_00
