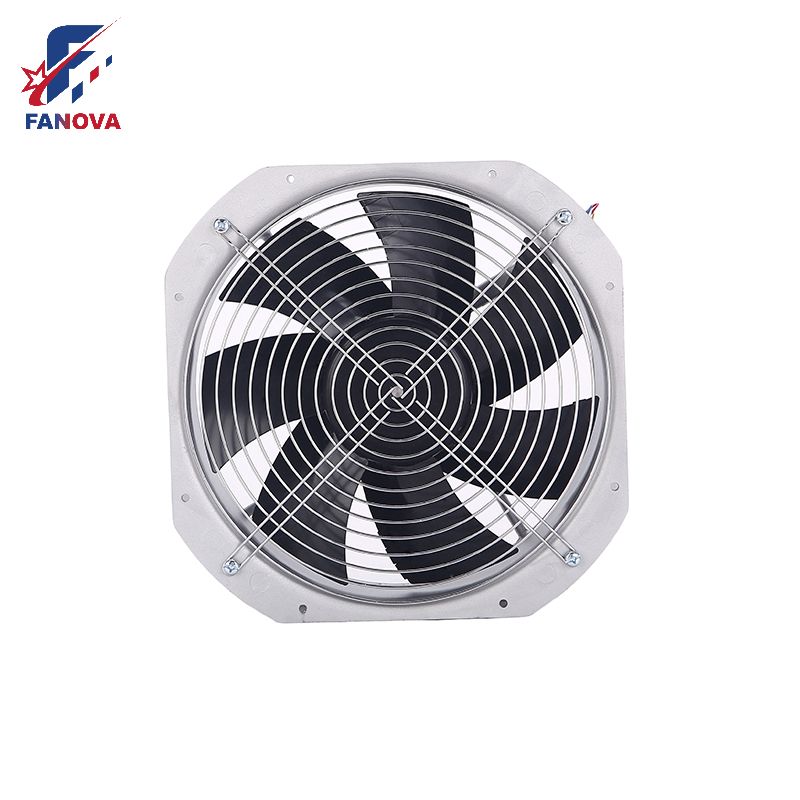

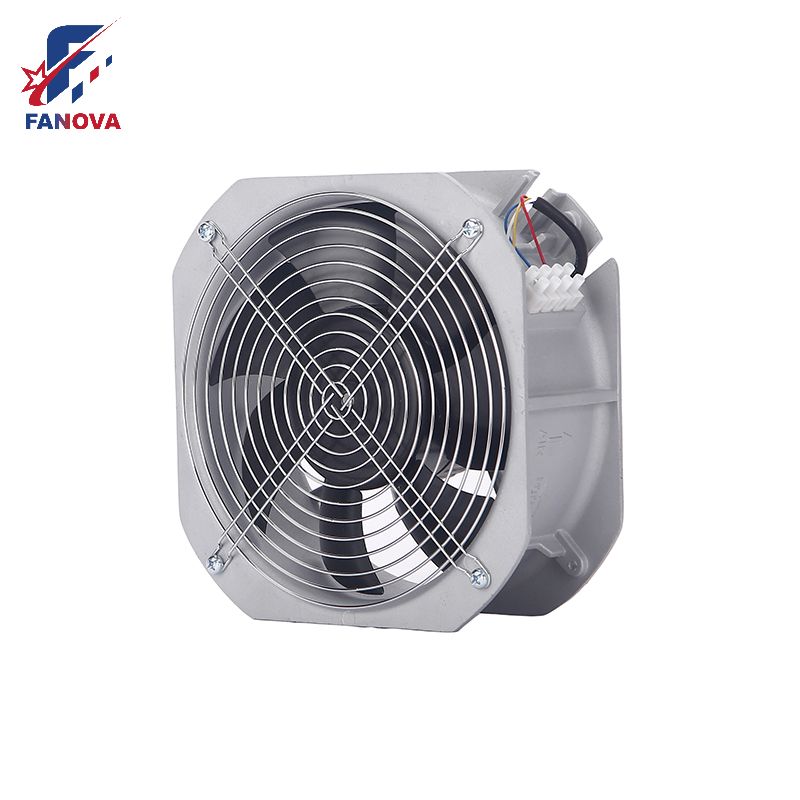

48V Diameter 200mm DC Eco-Friendly Axial Fan

1. 200mm
2. IP44 protection level
3. Aluminum alloy motor with Propylene with glass-fiber reinforced impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FW3G200-48GS-90

  • Fanova

48V Diameter 200mm DC Eco-Friendly Axial Fan

   Introducing our cutting-edge 48V Diameter 200mm DC Axial Fan, an eco-friendly air mover designed to revolutionize the way you think about ventilation. This state-of-the-art fan is not just a tool for air circulation; it's a testament to our commitment to sustainability and efficiency.

Eco-Friendly Design: Our 48V DC Axial Fan is a shining example of green technology, crafted to minimize environmental impact while maximizing performance. With its energy-saving DC motor, it consumes less power, reduces carbon footprint, and ensures a longer operational life.

Axial Fan Air Mover: As an axial fan air mover, it propels air in a direction parallel to the fan's axis, providing a focused and efficient airflow. This linear air movement is ideal for applications requiring direct and powerful ventilation, such as in large spaces or areas with high air circulation demands.

Tube Axial Fan: The fan's design incorporates a tube axial fan element, which is perfect for confined spaces or where a compact yet powerful airflow solution is needed. This feature makes it an excellent choice for installations with limited space but high performance requirements.

Axial Fan Bathroom: When it comes to personal spaces like bathrooms, our axial fan is the perfect solution. It effectively manages humidity and ensures a fresh and comfortable environment. The axial fan's ability to move air efficiently makes it a must-have for any bathroom, providing both ventilation and a pleasant atmosphere.

Belt Driven Axial Fan: While our primary offering is a direct-driven fan, we understand the need for versatility. For applications that require variable speed control, our belt-driven axial fan option allows for customization, offering the flexibility to adjust the airflow according to specific needs.

Key Features:

  • Compact Size with Big Impact: Despite its 200mm diameter, this fan delivers an impressive airflow, making it suitable for a wide range of applications without taking up much space.

  • Quiet Operation: Engineered with noise reduction in mind, our fan operates quietly, ensuring a peaceful environment in any setting.

  • Easy Integration: With a 48V DC power requirement, our fan is easy to integrate into existing systems or can be used as a standalone unit.

  • Versatile Applications: From industrial settings to commercial spaces and residential areas, this fan's versatility shines through, making it a valuable addition to any ventilation system.

  • Durable Construction: Built with high-quality materials, our fan is designed to withstand the test of time, offering reliable performance and durability.

Experience the future of ventilation with our 48V Diameter 200mm DC Axial Fan. It's not just about moving air; it's about doing so with intelligence, efficiency, and respect for our planet. Join us in embracing a greener tomorrow with our eco-friendly axial fan solutions.

Fanova-9Fanova-10



Nominal Voltage

VDC

48

Nominal voltage range

VDC

36~57

Current draw

A

1.25±10%

Speed(RPM)

min-1

3000±5%

Power consumption

W

60±10%

Sound Pressure Level

dB(A

62±5%

Max. Air Flow

CFM / m3/H

709.14/1205

Max. Static Pressure

In.wg /Pa

1.0/250

Insulation class

~

Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )

Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH

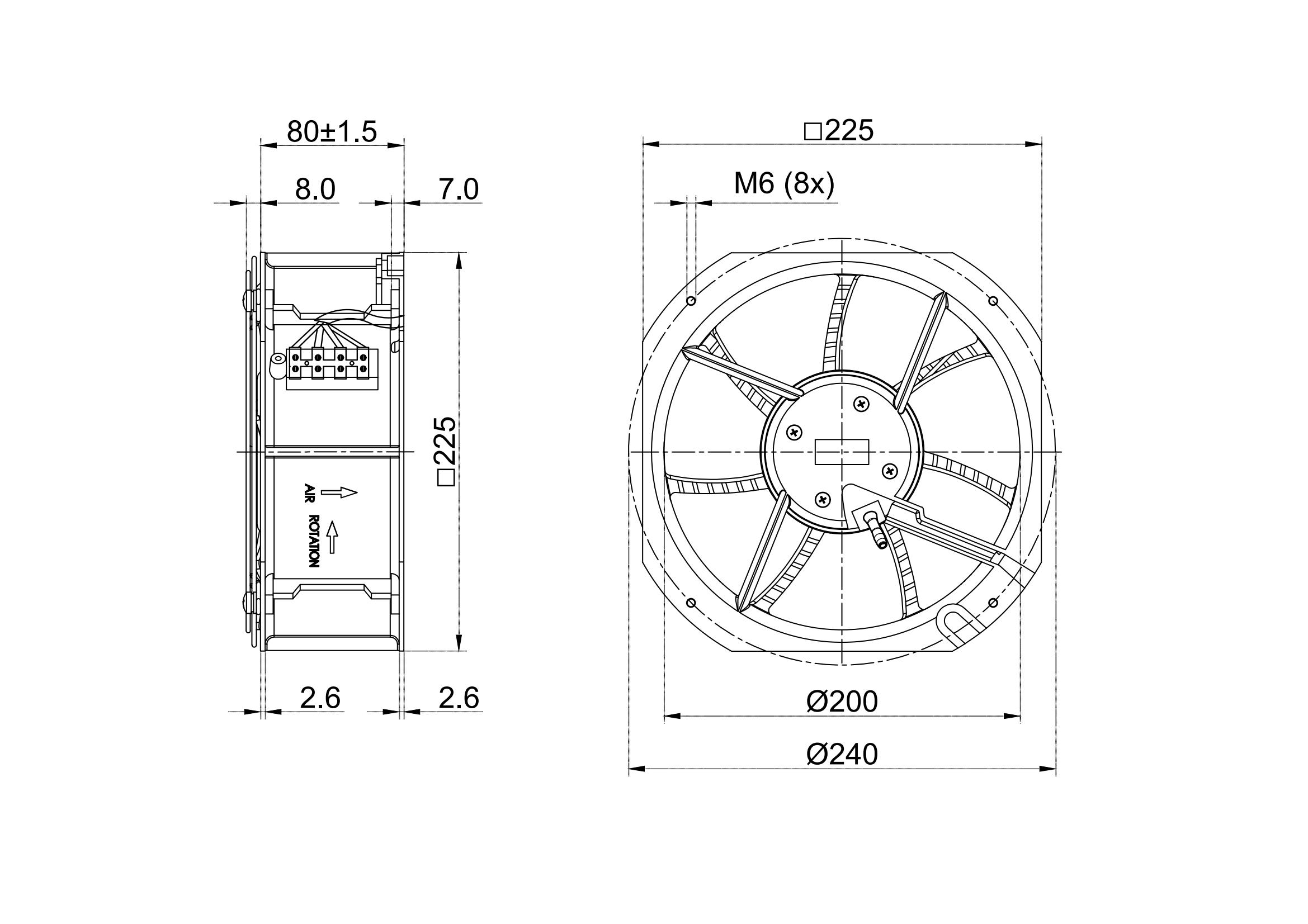

200mm DC Eco-Friendly Axial Fan

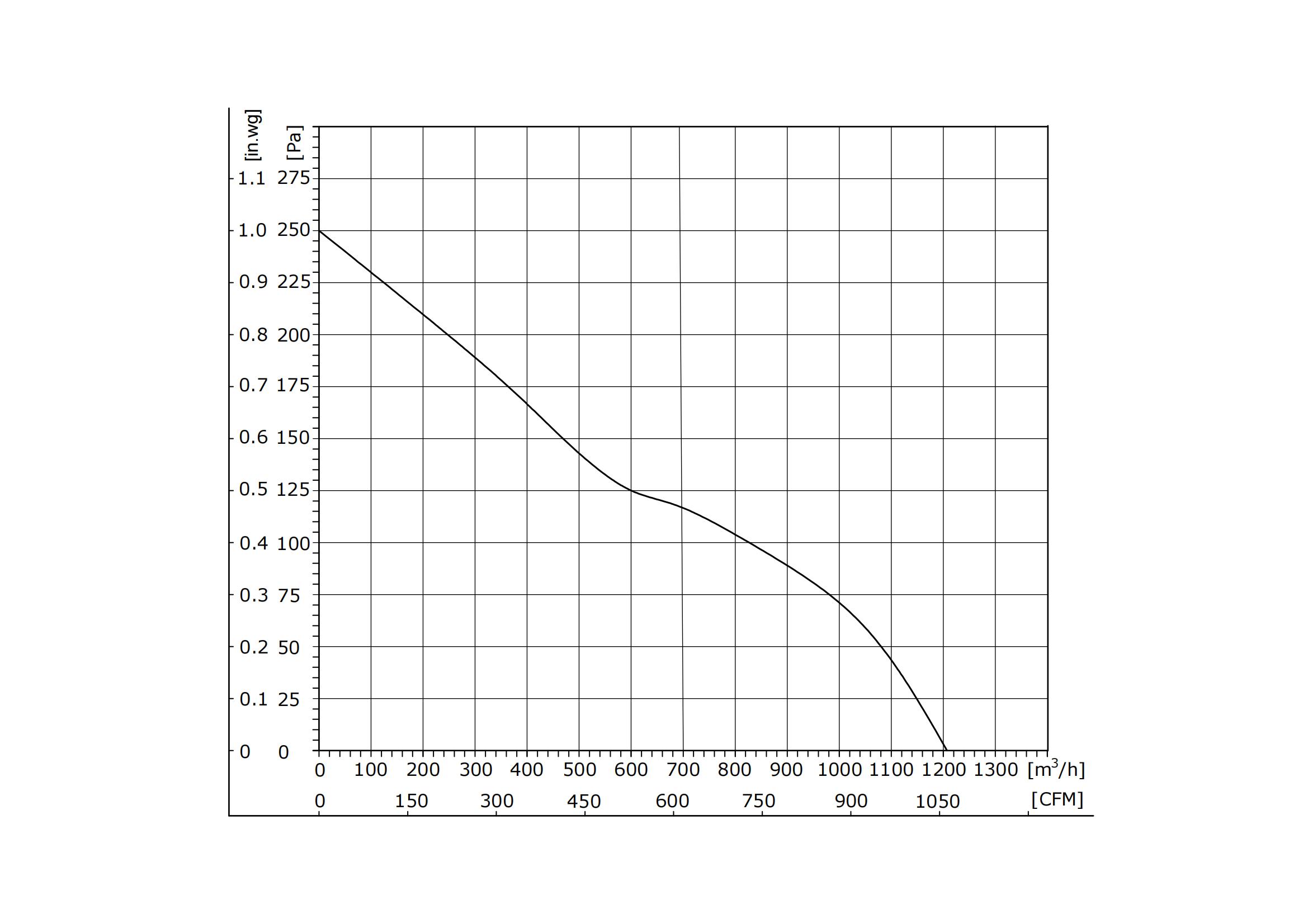

200mm DC Eco-Friendly Axial Fan-PQ
