Efficient airflow management lies at the heart of every high-performing data center. Among the many elements that maintain server reliability, data center cooling fans remain the most critical moving part of air-based cooling systems. From distributing airflow across densely packed racks to optimizing energy efficiency and minimizing downtime risks, fan technology shapes performance outcomes in measurable ways. At Fanova (Suzhou) Motor Technology Co., Ltd., we have spent decades refining fan design and integration to meet the demanding requirements of modern facilities. This article explores how fans function in data centers, the types of fans available, and how to select, operate, and maintain them for maximum benefit.
Cooling fans are not simply air movers; they are precision components that balance airflow, pressure, energy, and acoustics. For operators and engineers, the performance of these fans directly influences metrics such as rack inlet temperature, power usage effectiveness (PUE), and the long-term stability of critical equipment.
Every fan delivers two essential parameters: airflow volume (commonly measured in cubic feet per minute, or CFM) and static pressure (measured in pascals). In data centers with densely packed racks, higher static pressure is essential to push air through filters, coils, and complex duct layouts. Open layouts, by contrast, benefit more from fans optimized for higher volume. The balance between airflow and pressure determines whether servers receive consistent cooling or experience hotspots.
Fan energy consumption adds directly to the data center’s overall electrical load. By applying fan laws, engineers can predict how changes in speed affect both airflow and power draw. Small increases in speed can disproportionately increase power, making variable control vital. Choosing fans with electronically commutated (EC) motors ensures precise control, significantly improving efficiency and helping operators lower PUE without compromising airflow reliability.
Beyond airflow and energy, fans also influence workplace acoustics and long-term reliability. Excessive noise disrupts work environments and may signal mechanical inefficiencies. Reliability metrics such as mean time between failures (MTBF) and bearing type matter because fan failures can quickly lead to thermal issues. High-quality components, as offered by Fanova, ensure both acoustic optimization and long lifecycle performance.
Different cooling scenarios call for different fan technologies. Selecting the correct type ensures airflow is matched to infrastructure needs.
Axial fans, the most common type, move large volumes of air along the axis of the fan blade. They are compact and efficient in low-pressure applications, making them ideal for in-room units or in-row cooling modules. However, their performance drops when resistance increases, which makes them less suited to systems with significant ducting or dense filtration.

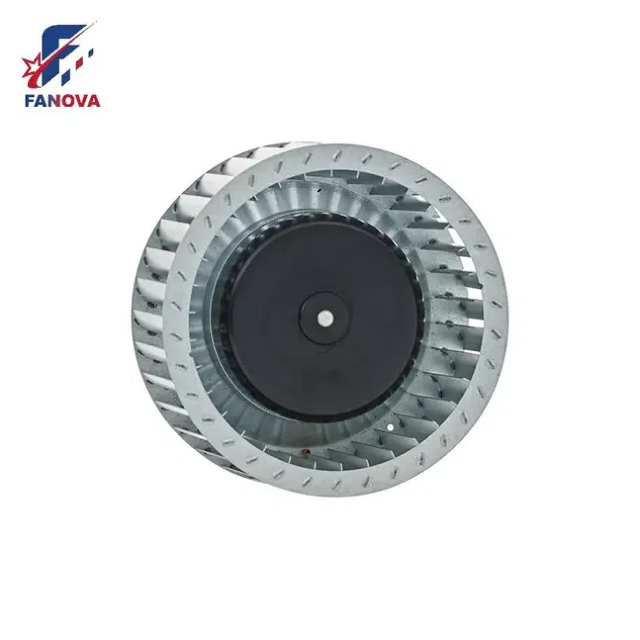

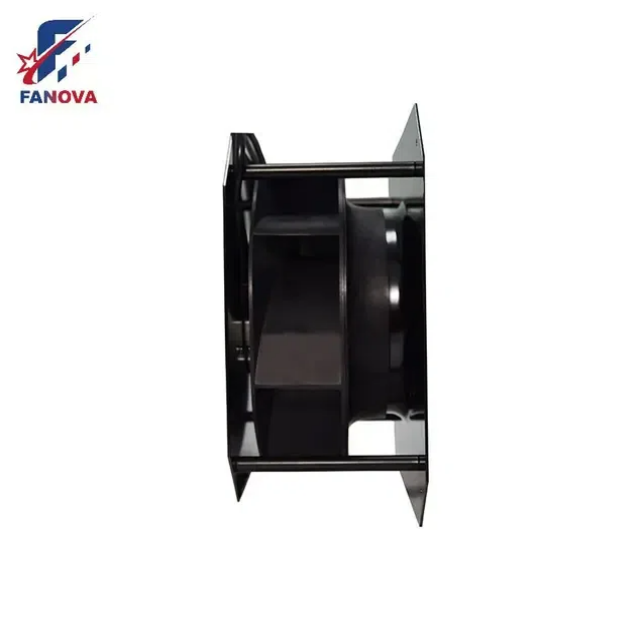

Centrifugal fans generate airflow perpendicular to the intake direction, creating higher static pressure. They are commonly used in plenum-style CRAH units where resistance is high. Although larger and less compact than axial fans, their ability to sustain pressure makes them indispensable in centralized cooling solutions that rely on duct networks.
Modern data centers increasingly adopt EC motor-driven fans, which integrate motor and control electronics for precise, efficient operation. Fan arrays — groups of smaller fans working in parallel — provide redundancy and allow fine-tuned staging. Direct drive systems reduce maintenance needs compared to belt-driven alternatives, eliminating slippage and extending service life.
Fan performance must align with the specific cooling architecture of a facility. Proper integration ensures that airflow matches heat loads dynamically.
In computer room air conditioning (CRAC) and air handling (CRAH) units, fans deliver conditioned air to raised floors or overhead ducts. Staging fans or using variable speed drives allows output to match IT load fluctuations, reducing wasted energy. EC fans simplify this integration by offering built-in modulation without external controls.
In high-density rack environments, fans inside in-row units or rear-door heat exchangers are responsible for directly capturing and dissipating server heat. Proper placement ensures airflow paths remain consistent with rack intake needs. Synchronizing these fans with server fans avoids mismatches that could create recirculation zones.
Even as liquid cooling technologies expand, fans remain essential for heat rejection from secondary loops. Hybrid systems use fans to cool liquid-cooled coils or reject heat through dry coolers. Thus, while liquid reduces reliance on airflow at the rack level, overall data center design still requires efficient, reliable fan systems.
Careful fan selection prevents inefficiencies and ensures resilience against load or equipment changes.
The first step is to determine the system resistance curve, which represents how pressure increases with airflow. Matching this with a fan performance curve identifies the correct operating point. Oversized fans waste energy, while undersized fans risk insufficient cooling. Correct alignment guarantees performance under real operating conditions.
Variable frequency drives (VFDs) allow speed adjustment of traditional AC fans, but EC motors integrate control more seamlessly, often with higher efficiency. Pulse width modulation (PWM) offers fine-tuned control in modular systems. Staging strategies, where multiple fans operate at partial load, improve redundancy and reduce wear.
Long-term operation depends on selecting fans with proven MTBF values and durable bearings. Easy replaceability is vital in live data centers where downtime is unacceptable. A clear spare parts strategy — stocking critical fan modules — ensures quick recovery from any failures.
After installation, the way fans are managed determines both efficiency and longevity.
Advanced monitoring tracks fan speed, current draw, and vibration. Deviations from normal patterns can indicate bearing wear or motor imbalance. Predictive maintenance based on this data minimizes unplanned downtime and extends fan service life.
Optimizing fan operation goes beyond hardware. Airflow containment strategies, such as hot-aisle or cold-aisle containment, reduce mixing and lower fan workload. Adjusting VFD or EC profiles to match IT load avoids unnecessary energy use. Demand-based staging ensures that only the necessary number of fans operate at a given time.
Routine inspection of fans, cleaning of filters, and checking bearings or electrical connections help prevent failures. Clear safety procedures for fan maintenance protect technicians from hazards like rotating blades or electrical exposure.
Even experienced teams sometimes face challenges when implementing fan systems. Awareness of pitfalls prevents costly inefficiencies.
Oversized fans may force excessive air through coils and filters, leading to premature clogging and wasted energy. Undersizing, however, risks hotspots and equipment overheating. Proper engineering balance avoids both extremes.
Larger or faster fans may generate unacceptable noise levels in adjacent spaces. Acoustic considerations should be factored in early, particularly in mixed-use facilities where staff work near cooling equipment.
Data center cooling fans remain the central element of air-based thermal management, directly influencing airflow, efficiency, and reliability. By carefully matching fan curves to system requirements, adopting EC motor-driven designs, and integrating smart control strategies, operators can reduce energy costs and improve resilience. At Fanova (Suzhou) Motor Technology Co., Ltd., we provide advanced fan solutions tailored to data center applications, combining innovation with proven reliability. To learn more about our data center cooling fans and explore how they can enhance your operations, contact us today.
