EC Backward Curved Centrifugal Fans (Electronically Commutated Fans) are widely used in various fields such as data centers, clean rooms, and commercial buildings due to their energy efficiency, precise speed control, and reliable performance. However, in practical applications, noise issues can arise, affecting the overall user experience. Below, we explore the main causes of noise in EC centrifugal fans and the corresponding solutions to mitigate these issues.
Turbulence Noise: Airflow separation or turbulence around the blades and volute can lead to high-frequency noise.
Rotational Noise: As the blades cut through the air, discrete frequencies of rotational noise (Blade Passing Frequency, BPF) are generated.
Inlet/Outlet Airflow Disturbance: Poorly designed air intakes or outlets can cause airflow disturbances, contributing to increased noise.
Bearing Wear or Insufficient Lubrication: This can lead to vibration and friction, resulting in mechanical noise.
Rotor Imbalance: An unbalanced motor or impeller can create low-frequency vibration and noise.
Structural Resonance: If the fan is not installed securely or the casing lacks rigidity, resonance may amplify the noise.
PWM Control Interference: EC motors use Pulse Width Modulation (PWM) control, which may introduce high-frequency switching noise (switching noise).
Magnetic Field Asymmetry: Uneven magnetic fields between the stator and rotor can lead to electromagnetic vibration noise.
Improved Impeller Design:
Use backward curved blades to reduce airflow separation and minimize turbulence noise.
Optimize the number of blades (typically 6-12 blades) to avoid resonance with airflow frequencies.
Employ uneven blade spacing to disperse BPF noise peaks.
Optimizing the Volute and Ducts:
Use a log-spiral volute to reduce airflow impact and backflow.
Install flow straighteners at the inlet and outlet to improve airflow uniformity.
Lower Fan Speed:
For variable air volume systems, reduce fan speed at lower demands to minimize noise levels.
Improve Rotor Balance:
Perform G2.5 dynamic balancing (according to ISO 1940 standards) to reduce vibration.
High-Quality Bearings:
Use ceramic bearings or low-noise lubricated bearings to reduce friction noise.
Vibration Isolation and Damping:
Install rubber vibration dampers or spring isolators to prevent structural resonance.
Use flexible joints (e.g., canvas soft joints) between the fan and ductwork to reduce vibration transmission.
Optimize PWM Control:
Increase PWM frequency (e.g., >20kHz) to avoid the sensitive frequency range (20Hz-20kHz).
Use sinusoidal drive (FOC algorithm) to minimize current harmonics and electromagnetic vibration.
Electromagnetic Shielding and Filtering:
Add magnetic rings or filter capacitors inside the motor to suppress high-frequency interference.
Acoustic Materials:
Apply porous sound-absorbing materials (e.g., fiberglass, polyurethane foam) to the fan casing or ducts to reduce noise.
Install Silencers:
Attach composite impedance silencers at the inlet and outlet to effectively address mid to high-frequency noise.
Acoustic Enclosures:
For high-noise fans, consider adding an acoustic enclosure to further reduce noise levels while ensuring proper ventilation.
| Noise Type | Main Source | Solution |
|---|---|---|
| High-Frequency Whistle | PWM/Electromagnetic Interference | Increase PWM frequency, FOC control |
| Low-Frequency Vibration | Rotor Imbalance | G2.5 Dynamic Balance, Vibration Dampers |
| Airflow Noise | Impeller/Volute Design | Optimize blades, add flow straighteners |
| Resonance Noise | Structural Rigidity | Reinforce brackets, use flexible connections |
The noise issues associated with EC Backward Curved Centrifugal Fans should be addressed through a comprehensive approach, optimizing aerodynamic design, mechanical structure, and electromagnetic control.
Aerodynamic Design: Prioritize optimizing the impeller and volute to minimize airflow disturbances.
Mechanical Precision: Ensure high precision in balancing and bearing quality to avoid vibration amplification.
Electromagnetic Control: Implement intelligent control strategies, such as FOC algorithms, to reduce electromagnetic noise.
Passive Noise Reduction: For further noise reduction, use sound-absorbing materials and silencers when necessary.
By systematically applying these noise reduction measures, the fan's acoustic performance can be significantly improved, ensuring the fan meets the noise requirements for high-end applications such as medical facilities and data centers.

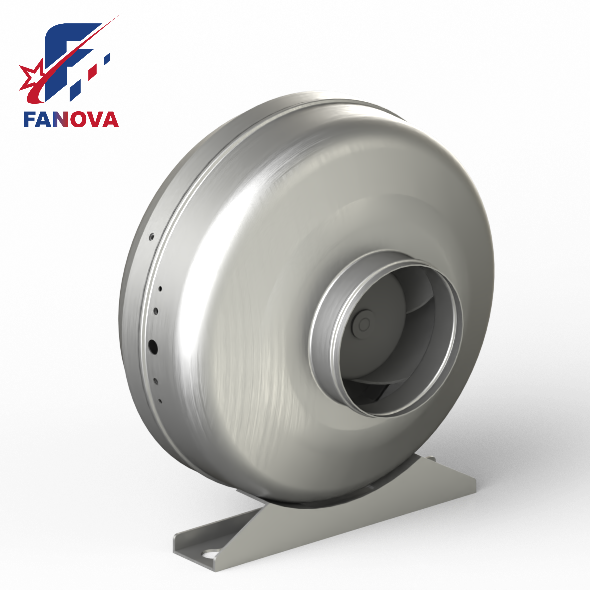

For more efficient and quieter ventilation solutions, consider products such as the 8-inch EC Quiet Inline Duct Fan, the 125mm EC Circular Duct Fan, or the 160mm Bathroom Duct Fan, all designed to minimize noise while providing optimal airflow performance in various applications.
