FK3G400-2APK-60
Fanova
相 Phase | ~ | 1~ |
额定电压 Nominal Voltage | VAC | 230 |
电压范围 Nominal voltage range | VAC | 184~270 |
频率 Frequency | Hz | 50/60 |
电流消耗 Current draw | A | 3.3±10% |
转速 Speed(RPM) | min-1 | 1700±5% |
功率消耗 Power consumption | W | 750±10% |
声压级 Sound Pressure Level | dB(A） | 83±5% |
最大风量 Max. Air Flow | CFM / m3/H | 3736.98/6350 |
最大静压 Max. Static Pressure | In.wg /Pa | 3.8/950 |
绝缘等级 Insulation class | ~ | Class B |
防护等级 Degree of protection | ~ | IP54 |
控制方式 Control Input | ~ | 0~10VDC / PWM |
信号输出 Signal Output | ~ | FG (Tach output ) |

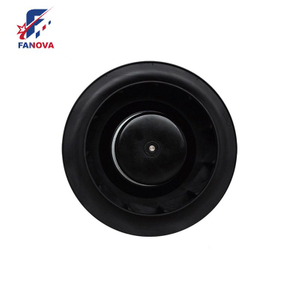

Optimized for high-efficiency air movement in compact spaces, this 400mm centrifugal fan features a lightweight glass-fiber-reinforced plastic impeller (7 blades) paired with a robust BLDC motor (Model BLEC102). Delivering 6350 m³/h max airflow at just 1700 RPM, it balances performance with ultra-low noise (83 dB(A)). Designed with a universal 230V single-phase input and IP54-rated housing, it’s ideal for applications where space, weight, and quiet operation are critical.
Lightweight, High-Flow Design
Glass-fiber-reinforced plastic impeller reduces weight while maintaining structural integrity, enabling 6350 m³/h airflow with only 750W power consumption—ideal for ceiling-mounted or portable systems.
Quiet Operation at Low RPM
Operates at 1700 RPM for exceptionally low noise (83 dB(A))—perfect for noise-sensitive environments like offices, labs, or residential HVAC units.
Universal Voltage & Easy Control
Supports 184–270V AC (50/60 Hz) and offers 0–10VDC/PWM + RS485 (MODBUS) control compatibility. Includes soft-start and thermal protection for plug-and-play integration.
Compact & Versatile Mounting
400mm diameter with multi-orientation bracket mounting. IP54 protection ensures reliability in humid/dusty conditions like greenhouses or workshops.
Compact HVAC Systems: Ducted ventilation in apartments, hotels, or server rooms.
Portable Air Scrubbers: Lightweight filtration for construction sites or restoration projects.
Equipment Cooling: Cabinet cooling for medical devices, telecom racks, or 3D printers.
Low-Noise Exhaust: Bathroom/kitchen extractors where silent operation is essential.
Q1: Why choose plastic over metal impellers?
The glass-fiber-reinforced plastic offers 40% weight reduction vs. aluminum, reducing vibration and enabling ceiling/wall mounting without heavy supports.
Q2: Can it handle steam or high-humidity environments?
Yes. IP54 protection and corrosion-resistant materials suit humid spaces (e.g., laundries, pools), but avoid direct water jets.
Q3: How does low RPM improve lifespan?
Reduced mechanical stress extends bearing life (50,000-hour L10 rating) and minimizes wear on the impeller.
Q4: Is speed control necessary for basic use?
No. Runs at full speed by default but supports variable control for energy savings during partial-load conditions.
