24V DC 140mm 150W High-Performance Durable Ventilation Single Inlet Centrifugal Blower Industrial Fans With Scroll Housing

1. 140mm
2. IP44 protection level
3. Aluminum alloy motor with galvanized steel sheet impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FS3G140-24GL-90

  • Fanova

48V Dc Diameter 108mm Single Inlet Centrifugal Fans With Scroll Housing

   Introducing our 48V DC Diameter 108mm Single Inlet Centrifugal Fans with Scroll Housing – a cutting-edge innovation designed to revolutionize the way you manage air movement. With a diameter of 108mm, these fans are compact yet powerful, making them perfect for a variety of applications where space is at a premium.

Key Features:

  • Compact and Powerful Design: Our centrifugal fans boast a diameter of 108mm, ensuring they are not only compact but also capable of delivering substantial airflow, similar to the efficiency you'd expect from a Cub Cadet Snow Blower in terms of performance and reliability.

  • 48V DC Motor: Powered by a 48V DC motor, these fans offer a perfect balance of energy efficiency and performance, much like the high-voltage air blowers that provide strong winds for clearing snow at Home Depot Snow Blower displays.

  • Single Inlet and Scroll Housing: The unique design of our fans features a single inlet and scroll housing, which optimizes airflow and reduces turbulence, akin to the focused power of a Jet Dry Blower.

  • Versatility: These fans are not just limited to industrial applications; their versatility makes them suitable for residential use as well, such as in Fireplace Blowers, where they can enhance the warmth and ambiance of a home.

  • Energy Efficiency: With a 48V DC power source, our fans are designed to consume less energy compared to traditional models, making them an eco-friendly choice for those looking to reduce their carbon footprint.

  • Easy Integration: The fans are engineered for seamless integration into existing systems or can be used as standalone units, providing flexibility for various setups.

  • Durable Construction: Built with high-quality materials, these fans are designed to withstand the test of time, ensuring a long service life with minimal maintenance.

  • Silent Operation: Engineered with noise reduction in mind, our centrifugal fans operate quietly, making them perfect for environments where noise can be a distraction.

In the quest for efficient air movement solutions, our 48V DC Diameter 108mm Single Inlet Centrifugal Fans with Scroll Housing stand out as the go-to choice for both performance and reliability. Whether you're looking to enhance the airflow in your home or need a robust solution for industrial applications, these fans deliver, just as you would expect from a high-quality Air Blower.

Experience the difference with our centrifugal fans – a blend of power, efficiency, and versatility that's hard to match. Make the switch today and let our fans be the silent force behind your air movement needs.

Fanova-9Fanova-10



Nominal Voltage

VDC

24

Nominal voltage range

VDC

16~28

Current draw

A

6.25±10%

Speed(RPM)

min-1

2560±5%

Power consumption

W

150±10%

Sound Pressure Level

dB(A

70±5%

Max. Air Flow

CFM / m3/H

 347.22/590

Max. Static Pressure

In.wg /Pa

 2.216/554

Insulation class

~

Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )


Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH

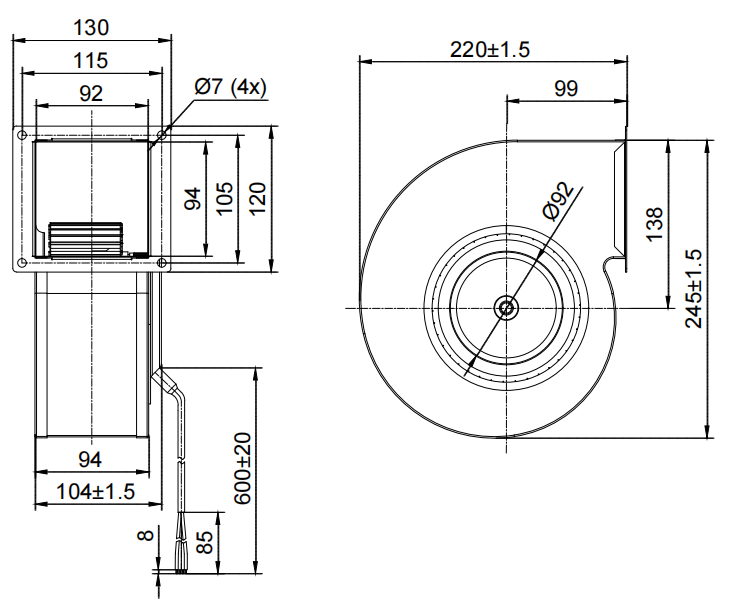

DCS140-24GL-90

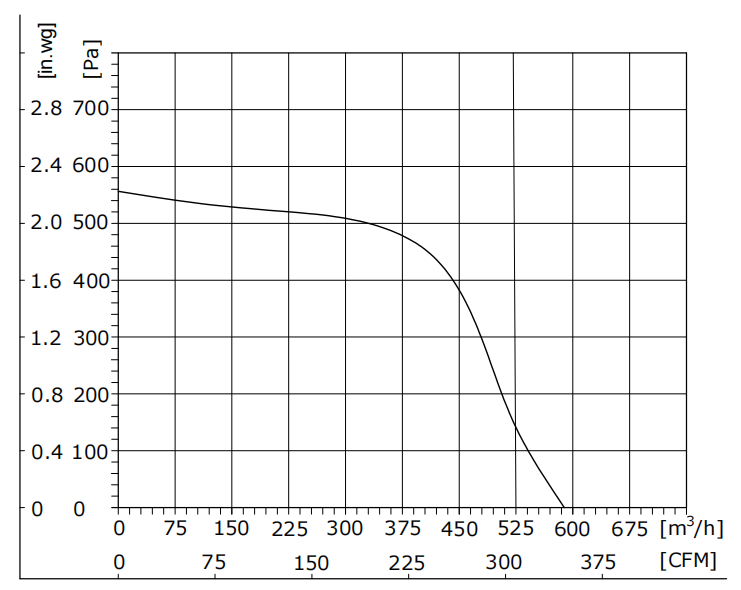

DS140-24GL-90
