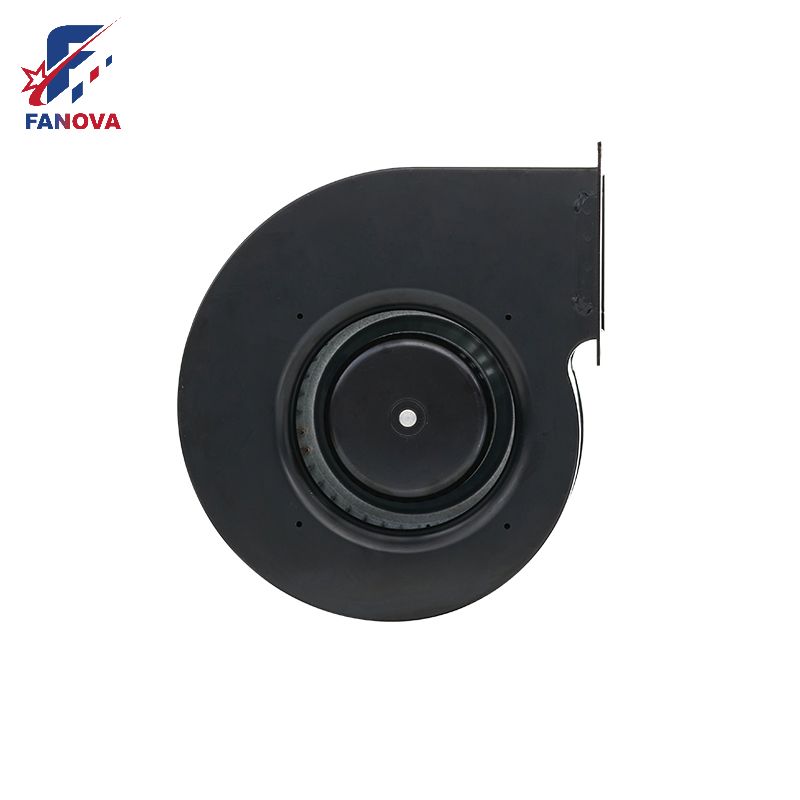

230V Ec Diameter 225mm Single Inlet Centrifugal Fans With Scroll Housing

1. 225mm
2. IP44 protection level
3. Aluminum alloy motor with galvanized steel sheet impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FS3G225-2AGL-20

  • Fanova

230V Ec Diameter 225mm Single Inlet Centrifugal Fans With Scroll Housing

Introducing our 230V EC Diameter 225mm Single Inlet Centrifugal Fans with Scroll Housing – a powerhouse of innovation designed for high-efficiency air movement. These fans are the epitome of cutting-edge technology, offering a performance that rivals the might of an electric snow blower, but with the precision and control required for industrial and commercial ventilation systems.

Key Features:

  • High-Performance Motor: Our centrifugal fans are equipped with a 230V EC motor that delivers the power and efficiency of a cordless leaf blower, but with the continuous operation capability that gas-powered equipment can't match.

  • Centrifugal Force: Utilizing the centrifugal force, these fans generate a powerful airflow, similar to the sweeping action of a gas leaf blower, but with the added benefits of electric reliability and lower environmental impact.

  • Energy-Efficient Operation: With energy efficiency at its core, our fans consume less power than traditional models, making them a smart choice for those looking to reduce their carbon footprint, much like a battery leaf blower.

  • Compact and Robust Design: The 225mm diameter and single inlet design ensure a compact footprint, while the scroll housing provides robust construction, making our fans a durable option for heavy-duty applications, akin to the resilience of an echo backpack blower.

  • Versatile Applications: Ideal for a wide range of uses, from industrial ventilation to commercial air circulation, our fans offer the versatility of a cordless leaf blower, without the constraints of a power source.

  • Low Noise Emission: Engineered with noise reduction technology, these fans operate quietly, ensuring a comfortable environment for workers and bystanders alike.

  • Easy Maintenance: Designed for hassle-free maintenance, our fans are easy to service, ensuring optimal performance and longevity, much like the user-friendly nature of a battery leaf blower.

Our 230V EC Diameter 225mm Single Inlet Centrifugal Fans with Scroll Housing are not just fans; they are a testament to our commitment to innovation, performance, and reliability. Experience the power and efficiency of our fans, and let them be the driving force behind your air movement needs.

In a world where efficiency and sustainability go hand in hand, our centrifugal fans stand out as the solution that delivers both. With the strength of a gas leaf blower, the convenience of a cordless leaf blower, and the eco-friendliness of a battery leaf blower, these fans are the ultimate choice for those seeking a powerful, reliable, and environmentally conscious air movement solution.

Fanova-9Fanova-10



Phase

~

1~

Nominal Voltage

VAC

230

Nominal voltage range

VAC

184~270

Frequency

Hz

50/60

Current draw

A

1.5±10%

Speed(RPM)

min-1

1250±5%

Power consumption

W

355±10%

Sound Pressure Level

dB(A

74.9±5%

Max. Air Flow

CFM / m3/H

1024.58/1741

Max. Static Pressure

In.wg /Pa

4.212/1053

Insulation class

~

Class B

Degree of protection

~

IP54

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )

Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH


200mm EC Single Inlet Centrifugal Fans With Scroll Housing

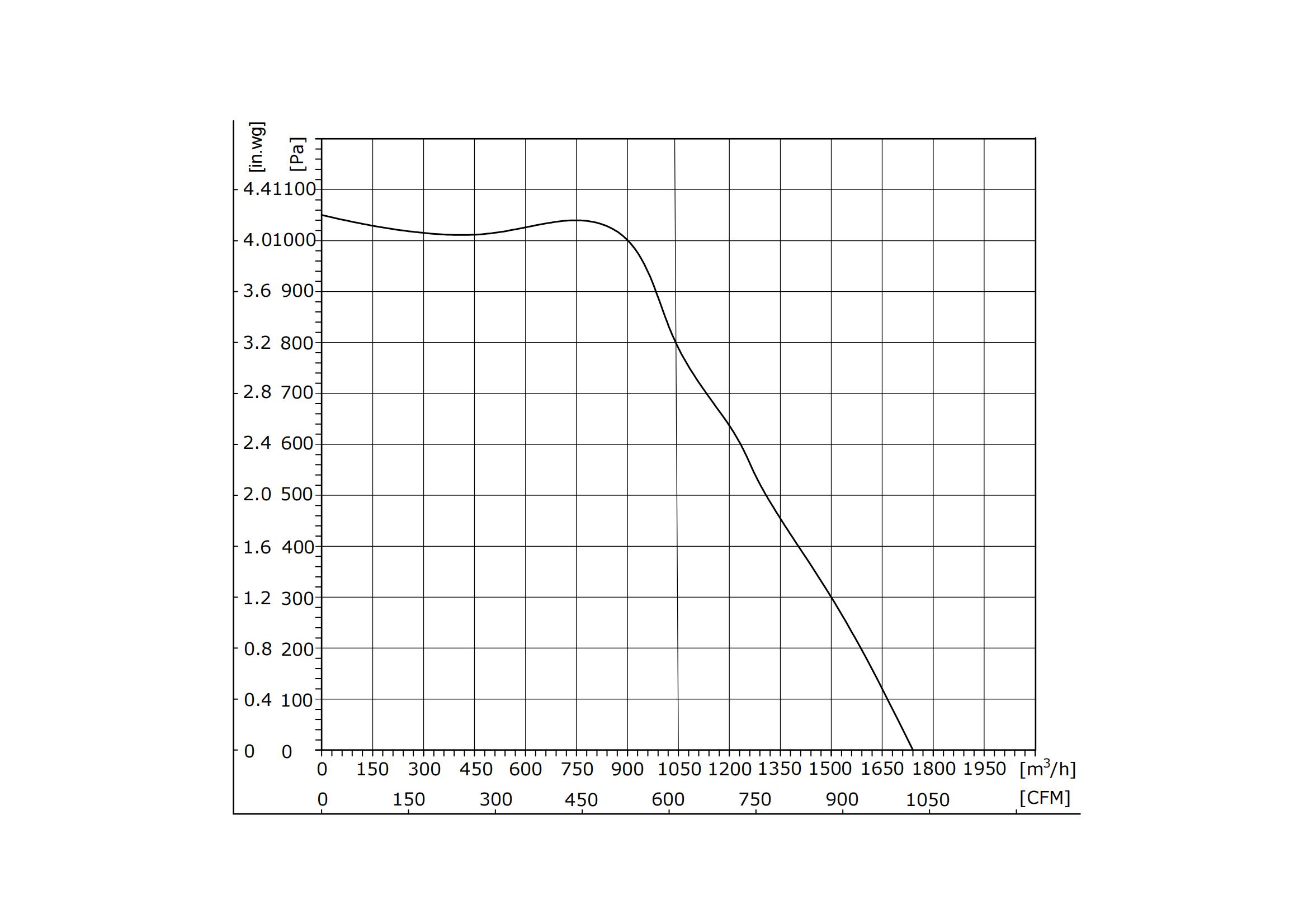

200mm EC Single Inlet Centrifugal Fans With Scroll Housing-PQ
