48V Dc Diameter 097 Single Inlet Centrifugal Fans With Scroll Housing

1. 097mm
2. IP44 protection level
3. Aluminum alloy motor with galvanized steel sheet impeller, fashion design.
4. Using Ball bearing, working life more than 50,000 hours
Availability:
Quantity:
  • FS3G097-48GL-50

  • Fanova

48V Dc Diameter 097 Single Inlet Centrifugal Fans With Scroll Housing


Introducing our cutting-edge 48V DC Diameter 097 Single Inlet Centrifugal Fans with Scroll Housing—a testament to innovation and efficiency in the world of ventilation systems. These fans are designed to provide powerful air movement with minimal energy consumption, making them the ideal choice for both residential and commercial applications.

Key Features:

  • High-Performance Motor: At the core of our centrifugal fans lies a 48V DC motor that delivers exceptional power and efficiency. This motor is the driving force behind the fan's ability to move air effectively, akin to the robust performance of a Power Smart Snow Blower, but tailored for air movement rather than snow.

  • Centrifugal Force: Our fans utilize the centrifugal force to push air radially outward, creating a powerful airflow that can handle demanding ventilation tasks. This force is reminiscent of the sweeping power of a Leaf Blower, ensuring that air moves swiftly and efficiently through the system.

  • Compact Design: With a diameter of 097, these fans are compact yet powerful, making them perfect for installations where space is at a premium. Their size is comparable to that of a Backpack Leaf Blower, small enough to be maneuverable yet powerful enough to make a big impact.

  • Cordless Convenience: Our centrifugal fans offer the freedom of cordless operation, much like a Cordless Leaf Blower. This eliminates the need for power cords, providing flexibility and ease of use in any environment.

  • Energy Efficiency: Designed with energy conservation in mind, these fans consume less power than traditional models while maintaining high performance. This makes them not only cost-effective but also environmentally friendly.

  • Scroll Housing: The unique scroll housing design enhances the fan's efficiency by optimizing the airflow pattern. This design feature contributes to the fan's whisper-quiet operation, ensuring minimal noise disruption.

  • Versatile Applications: Suitable for a wide range of applications, from HVAC systems to industrial ventilation, our fans are the go-to solution for reliable and efficient air movement.

  • Easy Maintenance: Our fans are designed for easy maintenance, with accessible components for cleaning and servicing, ensuring a long service life.

Experience the power and efficiency of our 48V DC Diameter 097 Single Inlet Centrifugal Fans with Scroll Housing. They are more than just fans; they are the silent workhorses of your ventilation system, delivering powerful air movement with the precision and convenience of a high-end leaf blower, without the need for cords or excessive energy consumption.

Fanova-9Fanova-10



Nominal Voltage

VDC

48

Nominal voltage range

VDC

36~57

Current draw

A

0.8±10%

Speed(RPM)

min-1

2500±5%

Power consumption

W

38.4±10%

Sound Pressure Level

dB(A

62±5%

Max. Air Flow

CFM / m3/H

88.28/150

Max. Static Pressure

In.wg /Pa

1.6/400

Insulation class

~

Class B

Degree of protection

~

IP44

Control Input

~

0~10VDC / PWM

Signal Output

~

FG (Tach output )


Life Expectance

50,000 Hours(L10),At 40℃ room, humidity 15%~65%RH

Technical features

Motor current limitation

Soft starting Protection

Under/Over voltage detection

Thermal overload protection for electronics/motor

Line undervoltage detection

Locked-rotor Protection

Reverse Polarity Protection


Operating Temperature

Fan

-25℃ (Min. )~60℃ (Max. )

Heat sink of IC

115℃ (Max. )

Other electronic parts

85℃ (Max. )

Ball bearing

80℃ (Max. )

Lead Wire

120℃ (Max. )

Storage Temperature

-40℃ to 75℃

Operating Humidity

5% to 90% RH

Storage Humidity

5% to 95% RH

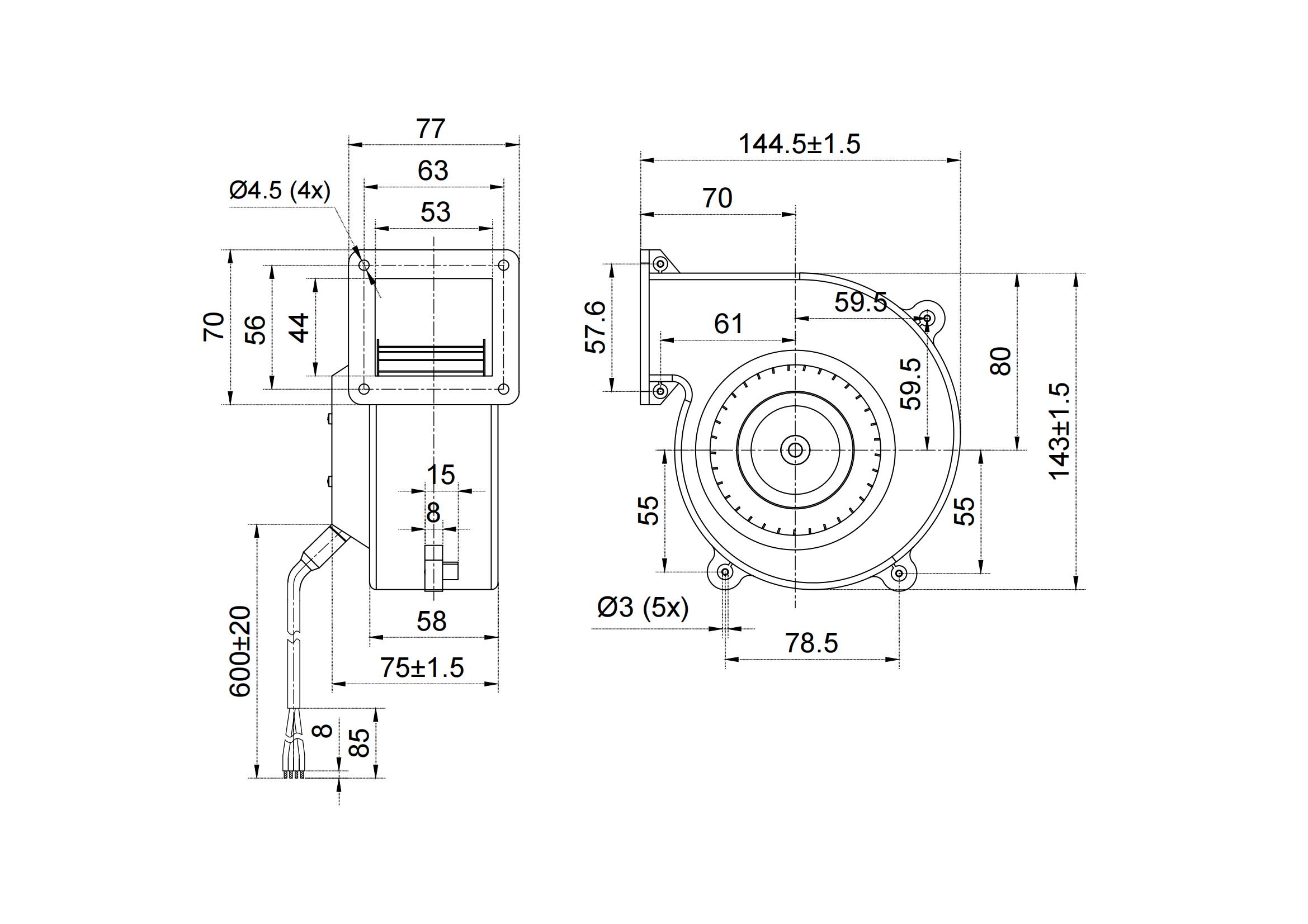

48V Dc Diameter 097 Single inlet centrifugal Fans With Scroll Housing

48V Dc Diameter 097 Single inlet centrifugal Fans With Scroll Housing-PQ
