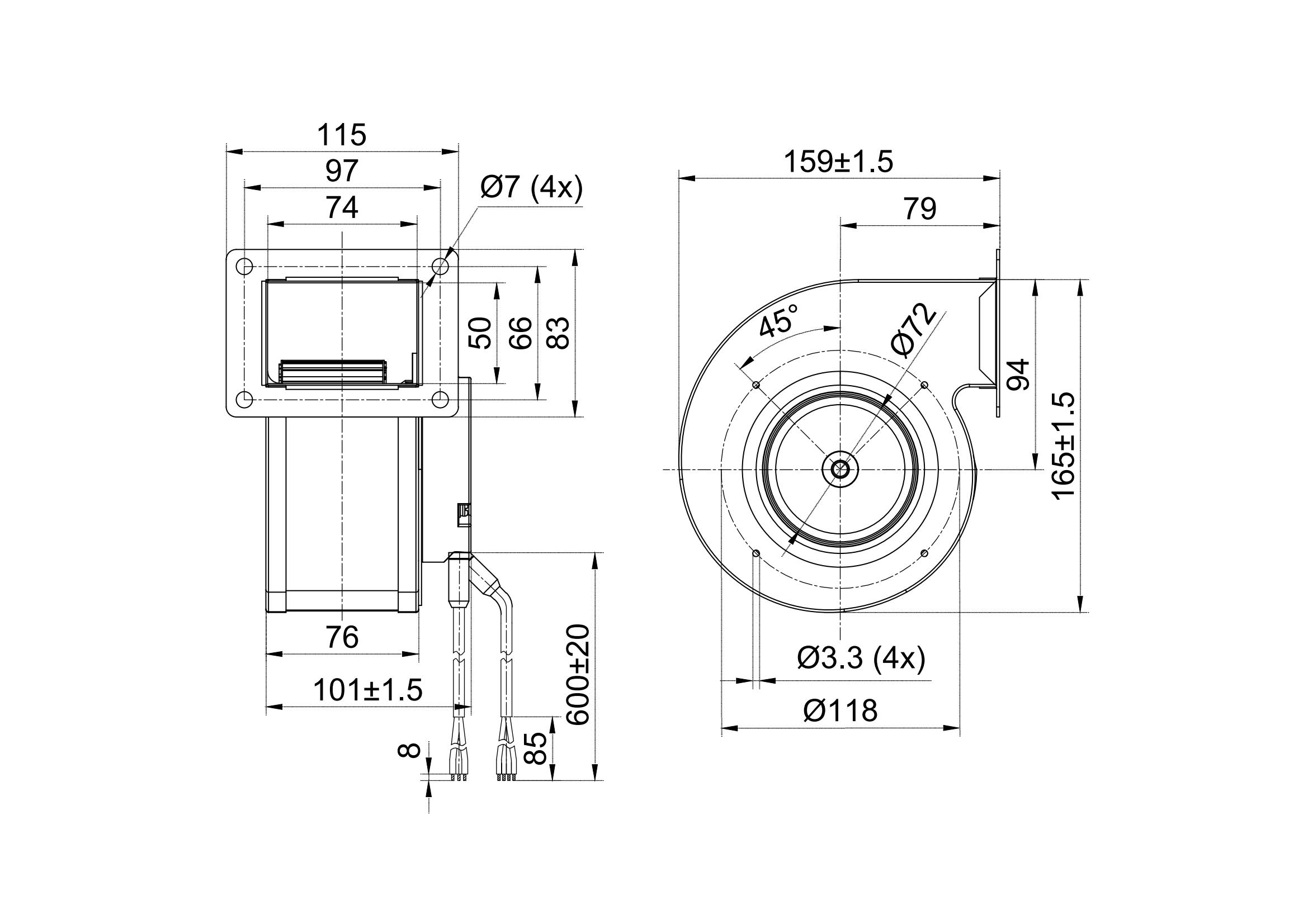

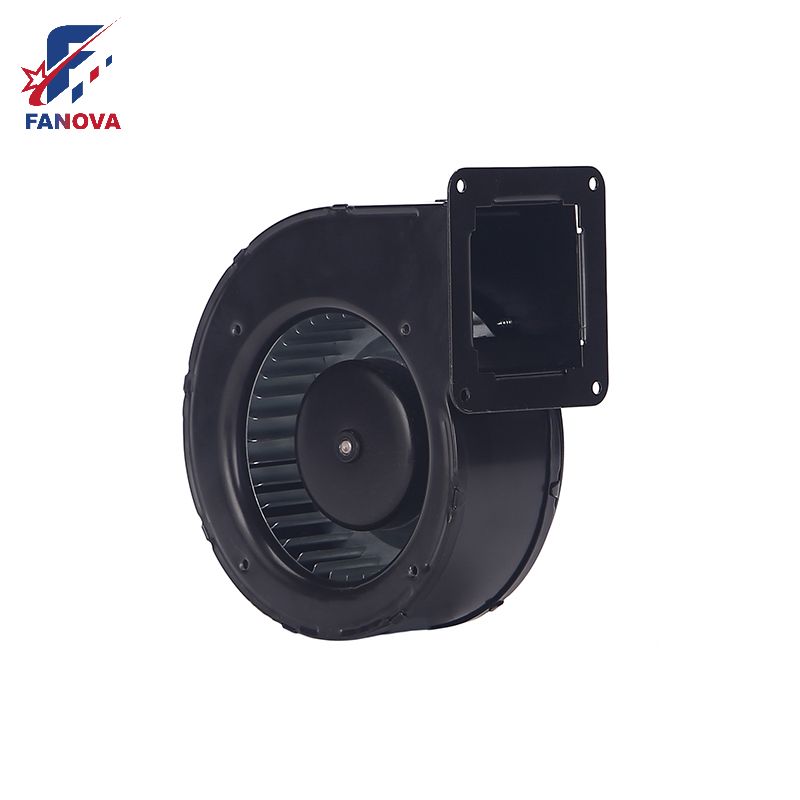

Sizing a Centrifugal Blower for air purification presents a core challenge for facility managers and design engineers. You are not just moving ambient air. You must continuously overcome the dense, restrictive resistance of HEPA and carbon filters. Doing this without causing catastrophic energy waste requires precise engineering.
Over-specifying your blower inevitably leads to massive power consumption. The system draws unnecessary amperage, stressing the electrical grid and wasting resources. Conversely, under-specifying the unit causes premature filter failure. The system will stall under pressure, resulting in severe air quality compliance breaches. Finding the perfect operational balance determines your entire system's reliability and durability.
This guide provides a strict engineering framework to evaluate and select the perfect unit. We will explore physical airflow laws, complex blade dynamics, and critical environmental variables. You will learn how to optimize your system for maximum operational efficiency. By following these principles, you ensure long-term performance and robust material handling.
Baseline Metrics: Selection strictly depends on aligning exact CFM requirements with the system's static pressure (including a 10–20% safety margin for filter loading).
Blade Dynamics: Impeller choice (airfoil vs. radial) is dictated by air quality; clean air allows for up to 90% efficiency, while particulate-heavy air requires lower-efficiency, self-cleaning designs.
The Fan Law Trap: A 25% increase in airflow demand effectively doubles horsepower consumption—making precision sizing critical.
Total Cost Focus: Integrating modern VFDs (Variable Frequency Drives) and targeting the Best Efficiency Point (BEP) minimizes long-term operational costs.
You cannot select a proper unit without first defining your exact duty point. The duty point is a specific intersection on a performance graph. It represents the exact moment where your system's resistance perfectly meets the delivered airflow. Identifying this intersection prevents catastrophic equipment failure.
Airflow requirement calculation forms the foundation of your system design. Engineers measure this volume in Cubic Feet per Minute (CFM). You calculate standard airflow using a direct mathematical formula.
Measure your desired air velocity in feet per minute (ft/min).
Determine the precise cross-sectional area of your ductwork in square feet (ft²).
Multiply these two values to find your baseline requirement: CFM = Air Velocity × Cross-Sectional Area.
Static pressure realities often disrupt theoretical airflow calculations. Static pressure measures the physical resistance your system creates against the moving air. You must calculate the total pressure drop across your entire facility. This includes long runs of ductwork, industrial scrubbers, and fully loaded purification filters. Dense HEPA filters create massive resistance.
You must follow a strict implementation rule regarding static pressure. Always apply a 10–20% safety margin to your final calculation. Filters capture particles over time, gradually increasing their physical resistance. This safety margin accounts for gradual filter loading. It actively prevents the centrifugal air blower from stalling or surging when resistance reaches its peak.
Evaluating air quality against mechanical efficiency is your next critical step. Blade selection represents a direct, unavoidable physical trade-off. You must balance aerodynamic efficiency against material handling durability. You cannot achieve maximum efficiency while processing heavy debris.
Clean air applications demand airfoil or backward-curved blades. We typically specify these designs for clean-room environments or standard HVAC air purification systems. They move clean air with minimal turbulence. Airfoil blades feature an aerodynamic design similar to an airplane wing. They achieve remarkable peak mechanical efficiencies reaching up to 90%. Backward-curved blades offer slightly lower efficiencies ranging from 70% to 75%. However, they handle minor dust loads better than true airfoil designs.
Harsh environments require entirely different mechanical strategies. You must utilize a radial blade or radial tip design for airstreams containing heavy dust. They are also mandatory for corrosive particulate environments. A sturdy radial blower withstands extreme physical impacts from suspended solids.
Radial designs feature a unique "self-cleaning" physical property. The flat, straight blades fling particulates outward using raw centrifugal force. This prevents dangerous material accumulation on the impeller surface. It completely eliminates the risk of rotor imbalance and catastrophic bearing failure. You must accept lower mechanical efficiency caps (typically 60–65%) to gain this extreme durability.
Impeller Blade Efficiency and Application Comparison | |||
Impeller Type | Peak Efficiency | Primary Air Quality | Best Application Scenarios |
|---|---|---|---|
Airfoil | Up to 90% | Highly Clean Air | Clean rooms, precision HVAC, gas processing |
Backward-Curved | 70% - 75% | Mostly Clean Air | Standard air purification, light industrial exhaust |
Radial Tip | 65% - 70% | Moderate Particulate | Dust collection, industrial scrubbing |
Radial Blade | 60% - 65% | Heavy/Corrosive Material | Material handling, heavy dust extraction |
Understanding exact power draw prevents severe electrical overloads. You calculate the required power using the standard Brake Horsepower (BHP) formula. The industry baseline calculation is: P = (Q × Pw) / (6356 × ղ).
Let us define these strict engineering variables. "P" represents the required Brake Horsepower (HP). "Q" stands for your volumetric flow rate in CFM. "Pw" represents your calculated Static Pressure in inches of water gauge (WC). The symbol "ղ" denotes your selected impeller's mechanical efficiency as a decimal. Accurate variables ensure precise motor sizing.
You must lock your operation into the Best Efficiency Point (BEP). The BEP is the specific curve location where a unit converts energy most effectively. Operating a precise pressure fan at its BEP minimizes internal mechanical stress. It drastically reduces aerodynamic noise generation. Furthermore, it maximizes overall motor lifespan by preventing thermal overloads.
Engineers must understand the severe penalty imposed by the Fan Laws. The Fan Laws dictate the physical relationships between speed, pressure, and power. They demonstrate a brutal cubic relationship between rotational speed and power consumption. You cannot simply speed up a unit without consequences.
Consider this evidence-based scenario regarding system modifications. Suppose a facility needs to increase airflow delivery by 25%. The rotor RPM must increase by exactly 25%. However, the system's static pressure jumps by 56% due to squared resistance laws. Most critically, the horsepower demand surges by nearly 100%. A minor airflow increase effectively doubles your energy consumption. This makes precision upfront sizing absolutely critical.
Standard engineering formulas assume standard air density at sea level. Real-world applications rarely operate under perfect atmospheric conditions. Altitude and extreme temperatures drastically alter the physical density of air. Thinner air impacts how your impeller generates pressure.
High-temperature environments drastically reduce the static pressure generated at a given CFM. Hot air expands and becomes significantly lighter. A unit moving 10,000 CFM of 250°F air moves far less physical mass than one moving 70°F air. You must apply standard density correction factors during the design phase. Failing to correct for elevation or heat ensures your system will underperform.
System effect penalties represent another severe risk to performance. We define system effects as installation realities that disrupt ideal aerodynamics. Poor inlet or outlet duct configurations cause chaotic, non-uniform airflow. Sharp elbows placed too close to the intake choke the impeller. Transition ducts with steep angles destroy static pressure generation.
You must implement strict risk mitigation for poor ducting. Engineers often try to fix poor ductwork by speeding up the motor. This is a dangerous strategy. Compensating for a 20% airflow loss due to poor ducting can spike horsepower requirements by over 70%. It is always more efficient to redesign the ductwork than to force the motor to work harder.
You must select an appropriate drive mechanism for your physical space and operational needs. Direct drive and belt drive configurations offer distinct physical advantages. We evaluate them based on layout space and maintenance capacity.
Direct drive units feature the impeller mounted directly on the motor shaft. They are highly compact and require exceptionally low maintenance. They eliminate power transmission losses. However, they operate at a fixed speed unless paired with external controls. Belt drive units connect the motor to the impeller via belts and pulleys. They offer flexible speed adjustments via simple pulley ratio changes. This flexibility requires higher ongoing maintenance to adjust tension and replace worn belts.
Modern purification requires deep integration with Variable Frequency Drives (VFDs) and smart controls. VFDs are an absolute necessity for maintaining precise flow as filters load. When clean HEPA filters offer low resistance, the VFD slows the motor down. As filters capture dirt and resistance rises, the VFD smoothly increases RPM. This prevents the unit from over-delivering air early in the filter lifecycle.
Modern additions drastically improve Environmental, Social, and Governance (ESG) compliance. Engineers utilize Pulse Width Modulation (PWM) and smart thermal controls to optimize power profiles. Incorporating IP20 or NEMA 1 airflow monitors provides real-time data feedback. These intelligent control integrations can reduce overall power draw by up to 30%.
Noise constraints heavily influence the footprint of your selected ventilation blower. Standard industrial acoustic thresholds strictly limit ambient decibel levels to protect worker hearing. High-pressure units generate significant aerodynamic noise. You must consider heavy housing insulation or inline silencers. Adding external silencers increases the physical footprint of the unit, requiring careful spatial planning.
Selecting reliable equipment requires rigorous evaluation of manufacturer competence. You must look far beyond standard marketing brochures. Advise your procurement team to demand fully transparent performance curves. Do not accept peak performance numbers in isolation. A peak number tells you nothing about how the unit performs at your specific duty point.
Demand custom engineering support for complex environments. If your purification system handles extreme heat, the vendor must provide specialized heat slingers. Heat slingers protect delicate motor bearings from thermal transfer. If you handle corrosive gases, demand specialty coatings. High-grade FRP (Fiberglass Reinforced Plastic) or 316 Stainless Steel construction prevents rapid degradation.
Request detailed performance curves mapping CFM, Static Pressure, and BHP.
Verify acoustic data at your exact operating frequency.
Confirm the availability of custom coatings for harsh chemical extraction.
Check for integrated VFD compatibility and sensor mounting points.
Assess the vendor's warranty terms regarding bearing life and impeller balance.
Evaluating lifetime operational efficiency is more critical than analyzing upfront capital expenditure. Warn your purchasing team against selecting an air purification fan based solely on the initial sticker price. Lifetime energy consumption absolutely dwarfs initial purchase prices. A cheap unit running far off its BEP will consume immense amounts of electricity. Furthermore, the maintenance downtime caused by a poorly specified impeller rapidly erodes any initial procurement savings.
Successful airflow evaluation requires balancing the strict physical laws of aerodynamics with operational realities. You must respect the brutal mathematics of the Fan Laws while accounting for the physical resistance of dense filtration media. Precision sizing prevents mechanical failure and ensures optimal air quality.
Remember that clean environments allow for highly efficient airfoil blades. Harsh, particulate-heavy airstreams demand the rugged, self-cleaning nature of radial designs. Applying density correction factors and accounting for system effects will protect your operation from unexpected performance drops. Integrating smart controls and VFDs guarantees your system adapts perfectly to shifting filter resistance.
Take immediate action to secure your facility's operational stability. Compile your specific CFM requirements, static pressure calculations, and ambient environment data today. Once you have this verified data, request custom performance curves from qualified engineering vendors to finalize your optimal selection.
A: The technical difference lies in pressure generation and airflow direction. Blowers generate internal system pressure greater than 1.2 mg/cm², allowing them to overcome severe system resistance. Furthermore, a centrifugal blower typically exhausts air at a strict 90-degree angle from the inlet, whereas standard axial fans push air straight through a tube.
Quick Reference: Fan vs. Blower | ||
Characteristic | Standard Fan | Centrifugal Blower |
|---|---|---|
Pressure Generation | Low (Under 1.2 mg/cm²) | High (Over 1.2 mg/cm²) |
Airflow Path | Axial (Straight through) | Centrifugal (90-degree turn) |
A: Your unit is likely operating further right on its performance curve than originally designed. This usually happens due to lower-than-expected system resistance. If your filters are missing or ductwork is too open, the blower moves excessive air volumes, severely overloading the motor's specified amperage.
A: No. You should never use a forward-curved impeller for heavy dust applications. The cup-shaped blades cause rapid dust accumulation. This leads to severe rotor imbalance and rapid bearing failure. We highly recommend utilizing radial blades for any airstream containing heavy or abrasive particulates.
