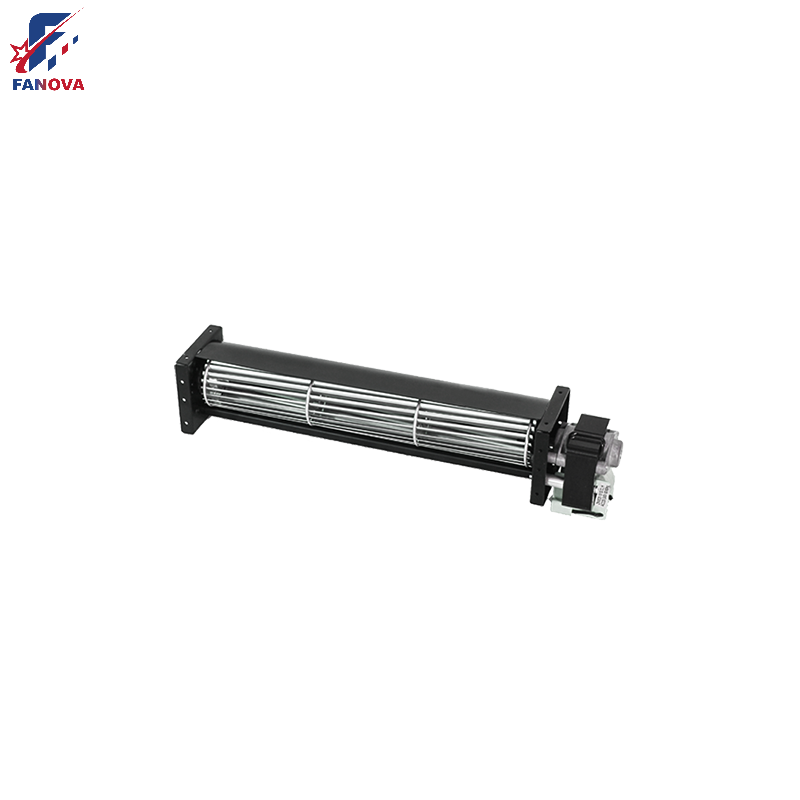

Modern equipment design constantly pushes the boundaries of miniaturization. You pack more processing power into tighter footprints every year. Managing thermal loads without increasing chassis size creates a major engineering hurdle. Consistent air distribution remains vital for component longevity. Standard axial fans often fail to provide uniform air distribution in these low-profile spaces. Meanwhile, traditional centrifugal blowers demand too much physical depth. The Cross Flow Fan offers a distinct geometric advantage here. It delivers a wide, two-dimensional, laminar airflow exactly where you need it. Axial and centrifugal alternatives simply cannot achieve this profile in restricted spaces. This guide breaks down the primary industrial and commercial applications of these fans. We detail specific evaluation criteria and implementation risks. Engineers and procurement teams must weigh these factors carefully before making a final specification. You will learn how to optimize airflow while navigating tight spatial constraints.
Cross flow fans are primarily deployed where broad, uniform airflow is required within stringent depth constraints.
Dominant applications include HVAC systems (like air curtains and trench heaters) and precision appliance cooling.
Evaluating a tangential fan requires balancing motor efficiency (EC vs. AC/DC), acoustic output, and precise dimensional ratios (impeller length to diameter).
Successful implementation demands strict adherence to mounting orientation limits and proactive vibration management.
Engineers face strict spatial constraints. They need highly efficient air delivery. The dual-pass airflow mechanism of a tangential fan solves this problem elegantly. Air enters the impeller radially. It moves straight through the inner blades. Then, it exits radially on the opposite side. This differs greatly from centrifugal designs. Centrifugal units redirect air at a sharp 90-degree angle. The straight-through path reduces internal turbulence. It helps maintain a highly consistent velocity profile.
Next, evaluate the form factor versus output. Axial fans create localized, circular air patterns. This aerodynamic shape often leads to severe hot and cold spots. The elongated rectangular discharge area of a transverse unit prevents this. It provides broad air coverage across wide internal components. You get an even curtain of air. This geometry prevents thermal pooling in shallow enclosures.
Acoustic performance also heavily drives component selection. Transverse designs feature inherently lower noise characteristics. They generate moderate flow rates at much lower rotational speeds. A comparable centrifugal blower must spin significantly faster. Higher RPMs generate louder high-frequency mechanical noise. Tangential impellers spin slowly while still moving substantial air volumes. This makes them ideal for occupied indoor spaces.
Fan Type | Airflow Profile | Space Requirement | Common Usage |
|---|---|---|---|
Axial Fan | Circular, localized | Requires moderate depth | General chassis exhaust |
Centrifugal Blower | Directional, high pressure | Requires significant depth | Ducted systems, heavy filters |
Cross Flow Fan | Rectangular, wide, laminar | Extremely low profile | Air curtains, tight enclosures |
HVAC systems require highly precise air distribution. Commercial buildings rely on invisible thermal and sanitary barriers. A powerful air curtain fan creates these barriers over open doorways. The uniform velocity profile prevents turbulent disruption. It actively blocks outside air, dust, and insects. It keeps conditioned air safely inside the building.
Split-system air conditioning units also depend heavily on this technology. Wall-mounted AC evaporators need a long, narrow air discharge. Trench heating systems use floor-level perimeter layouts. Both applications require quiet, room-wide air dispersion. Transverse technology fits perfectly here. It pushes a wide band of air across the room. It does so without generating distracting mechanical hums.
HVAC integration success relies on specific engineering criteria. Industry professionals evaluate three main performance metrics:
Throw distance: How far the air travels before dissipating into the room.
Noise Criteria (NC) ratings: Strict acoustic limits designed for indoor human comfort.
Uniform velocity distribution: Even air pressure spread across the entire louver length.
Consistent internal temperatures ensure equipment safety. Commercial ovens require a strict, uniform temperature gradient. Refrigerated display cases need even cooling to prevent food spoilage. Medical incubators demand flawless thermal stability. Reliable appliance cooling relies entirely on these elongated fan blades. They sweep air evenly across the entire internal chamber.
The IT and telecom sectors face entirely different challenges. Vertical space is heavily restricted. Server chassis designs maximize component density. High-volume heat dissipation remains absolutely mandatory. Engineers specify compact ventilation solutions for 1U and 2U server racks. Digital signage and UPS systems also use this low-profile hardware. The wide exhaust flushes heat directly out of the shallow chassis.
Success in electronics cooling requires careful integration. Watch out for these specific success criteria during the design phase:
Chassis integration tolerances: The blower must mount flush within incredibly tight spatial margins.
Operating temperature thresholds: Fan materials must withstand extreme internal heat or ambient cold.
Environmental contaminant resistance: Motors must resist moisture and ambient dust ingress over time.
Procuring a reliable cross flow blower demands thorough technical analysis. Motor technology selection is your first major decision. AC motors offer legacy cost-efficiency. They run easily on standard grid power. DC motors provide necessary variable speed control. EC (electronically commutated) motors deliver maximum energy efficiency. They help systems meet strict regulatory compliance standards.
Motor Technology | Primary Benefit | Ideal Use Case |
|---|---|---|
AC (Alternating Current) | Lowest upfront cost | Basic appliances, continuous single-speed operation |
DC (Direct Current) | Variable speed control | Telecom racks, speed-sensitive electronics |
EC (Electronically Commutated) | Highest energy efficiency | Commercial HVAC, smart thermal management systems |
Dimensional ratios strictly dictate aerodynamic capabilities. The ratio of the impeller's diameter to its length matters immensely. It directly impacts static pressure capabilities. A very long impeller loses mechanical stability. Long, thin blades naturally bow at high rotational speeds. This bowing destroys aerodynamic efficiency. Engineers must scale the diameter properly alongside the length. This maintains structural integrity under aerodynamic load.
Finally, evaluate the bearing systems carefully. Sleeve bearings offer much lower upfront costs. However, they suffer from a shorter lifespan. They are highly orientation-dependent. Dual ball bearings provide significantly higher durability. They resist mechanical friction better. They suit continuous industrial operation perfectly. Always match the bearing type to your expected operating hours.
Every engineering solution carries specific risks. Mounting orientation constraints represent the biggest mechanical hurdle. Many transverse impellers are designed strictly for horizontal mounting. Gravity pulls evenly across a horizontally mounted blade. Vertical installation creates a severe operational problem. The entire weight rests on the bottom bearing. This causes rapid, premature bearing failure. You must source specially engineered thrust bearings for vertical setups.
Vibration and resonance actively threaten system longevity. Harmonic resonance occurs frequently in long-impeller designs. The spinning blade matches the natural frequency of the metal chassis. This amplifies vibrations rapidly. Severe noise and structural fatigue quickly follow. You must incorporate rubber isolators. Vibration-dampening mounts in the chassis are non-negotiable for long-term reliability.
Maintenance poses another long-term operational challenge. The forward-curved blade geometry is highly susceptible to dust buildup. Debris fills the small gaps between individual blades. This unbalances the impeller completely. It degrades aerodynamic efficiency over time. The fan moves less air and draws more electrical power. Filter requirements must be factored into the initial chassis design. Regular cleaning protocols actively protect the hardware.
Specifying a transverse unit is always a calculated engineering trade-off. It heavily favors wide, uniform airflow over high static pressure. You trade raw pushing power for incredibly space-saving geometry. This specific form factor makes it ideal for low-profile thermal management.
Follow these action-oriented next steps for successful integration:
Map out your exact thermal load requirements in total watts.
Measure the rigid dimensional constraints of your physical chassis enclosure.
Define strict acoustic limits based on the final end-user environment.
Validate your filter design to prevent long-term dust accumulation on the blades.
Take action today to secure your thermal management strategy. Download technical specification sheets for your intended models. Review comprehensive 3D CAD models to check physical clearances. Contact an application engineer immediately to validate your specific use case.
A: These terms refer to the exact same technology. They just utilize different industry nomenclature. The word "tangential" describes the airflow's tangential entry and exit from the spinning impeller. Engineers use both terms interchangeably across the HVAC and electronics cooling industries.
A: Standard models are horizontal-only due to bearing load distribution. Vertical mounting places all the impeller's weight onto the bottom bearing, causing rapid failure. However, you can source specialized models. These use thrust bearings or specific magnetic structures engineered expressly for safe vertical applications.
A: No. Generally speaking, they perform poorly under high resistance. If your system features dense HEPA filters, tight heat sinks, or complex ducting, a centrifugal blower is typically the compliant engineering choice. Cross flow units excel at delivering broad air volumes against low system resistance.
A: An EC (electronically commutated) motor drastically reduces energy consumption. It generates lower operating temperatures within the motor itself, reducing the overall chassis thermal load. Furthermore, EC technology easily integrates with smart sensors. This allows for precise, variable-speed thermal management based on real-time temperature fluctuations.
