FG3G200-2AGN-70不带网罩
Fanova
相 Phase | ~ | 1~ |
额定电压 Nominal Voltage | VAC | 230 |
电压范围 Nominal voltage range | VAC | 184~270 |
频率 Frequencyw | Hz | 50/60 |
电流消耗 Current draw | A | 0.31±10% |
转速 Speed(RPM) | min-1 | 3000±5% |
功率消耗 Power consumption | W | 45±10% |
声压级 Sound Pressure Level | dB(A） | 62±5% |
最大风量 Max. Air Flow | CFM / m3/H | 709.14/1205 |

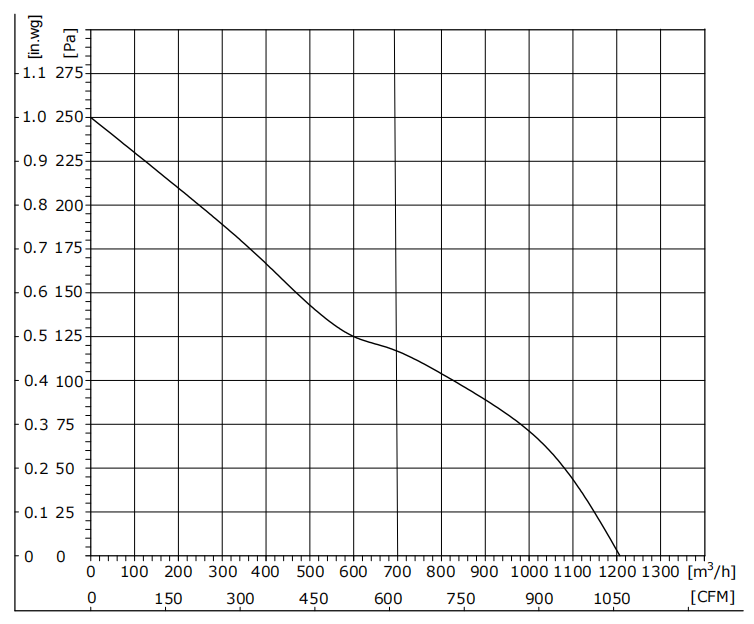

最大静压 Max. Static Pressure | In.wg /Pa | 1.0/250 |
绝缘等级 Insulation class | ~ | Class B |
防护等级 Degree of protection | ~ | IP44 |
控制方式 Control Input | ~ | 0~10VDC / PWM |
信号输出 Signal Output | ~ | FG (Tach output ) |
Product Overview
The FG3G200-2AGN-70 is an ultra-efficient 230VAC axial fan engineered for high-performance ventilation in commercial and industrial applications. Its open-frame design (without protective grille) maximizes airflow while operating at exceptionally low 62 dB(A) noise levels, making it ideal for noise-sensitive environments requiring unobstructed ventilation and European voltage compatibility.
Core Features

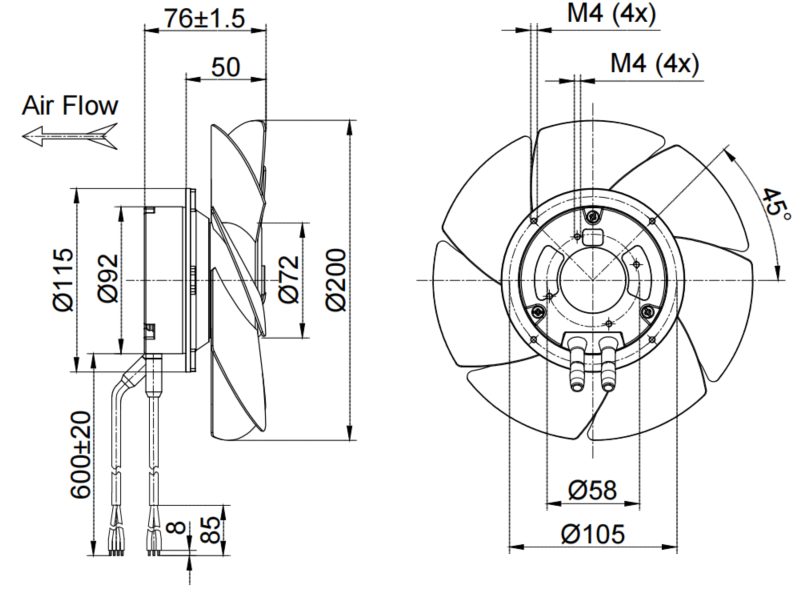

Grille-Free High-Flow Design
Seven galvanized steel blades deliver 1205 m³/h airflow at 250 Pa with 15% less air resistance than grilled models, optimizing cooling performance in confined spaces.
Energy-Saving EC Technology
Consumes only 45W (0.31A) at full load - 25% less power than comparable AC fans - with PWM/0-10V control for precise speed adjustment and soft-start protection.
Reverse-Blade Safety System
Counter-clockwise rotation and aerodynamic blade profile minimize accidental contact risks while maintaining IP44 protection against dust and moisture ingress.
Industrial-Grade Longevity
Die-cast aluminum housing with ball bearings ensures 50,000-hour lifespan (L10) in continuous-duty applications (-25°C to 60°C).
Applications
Commercial Refrigeration: Condenser cooling for supermarket display cases and walk-in freezers
HVAC Air Handlers: Energy-efficient ventilation in rooftop units and compact ERV systems
Industrial Control Cabinets: Cooling for PLCs, motor drives, and power distribution systems
Professional Audio/Video Racks: Thermal management in broadcast studios and theater control rooms
Medical Equipment: Ventilation for diagnostic imaging devices and laboratory analyzers
European Machinery: OEM integration in equipment requiring 230VAC/50Hz operation
Telecom Shelters: Temperature control in 5G base stations and network infrastructure
FAQ
Q1: Is this fan safe without protective grille?
A: The reverse-rotation blades and smooth leading edges reduce contact risks. Install mesh guards (sold separately) in accessible locations per EN ISO 13857 safety standards.
Q2: Why choose 230VAC over 24VDC for this application?
A: 230VAC simplifies integration in European industrial equipment, eliminating DC power supplies and reducing wiring costs for fixed installations.
Q3: How does 45W power consumption compare to traditional fans?
A: It consumes 40-50% less energy than standard AC axial fans while delivering equivalent airflow, with EC motor efficiency maintained across speed variations.
